Four Wheel Drive Selector Switch: Diagrams

Component ID: 190

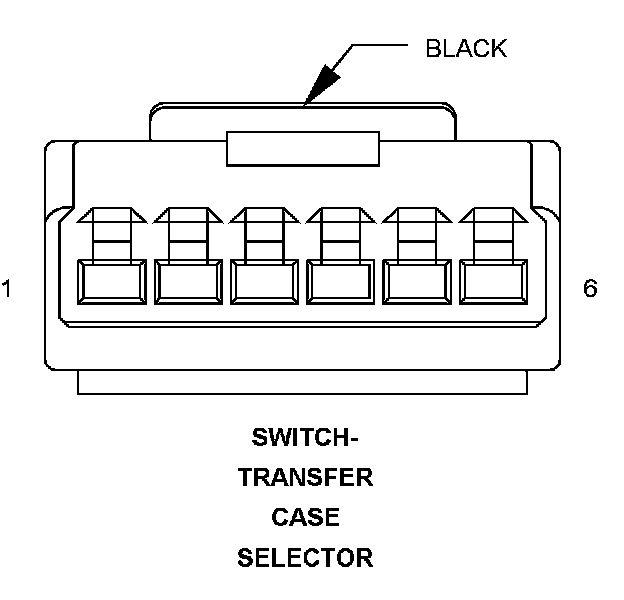

Component : SWITCH-TRANSFER CASE SELECTOR

Connector:
Name : SWITCH-TRANSFER CASE SELECTOR
Color : BLACK
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 Z940 20BK/LG GROUND
2 K77 20BR/WT TRANSFER CASE POSITION SENSOR INPUT
3 - -
4 - -
5 E12 20OR/GY PANEL LAMPS DRIVER
6 Z940 20BK/LG GROUND

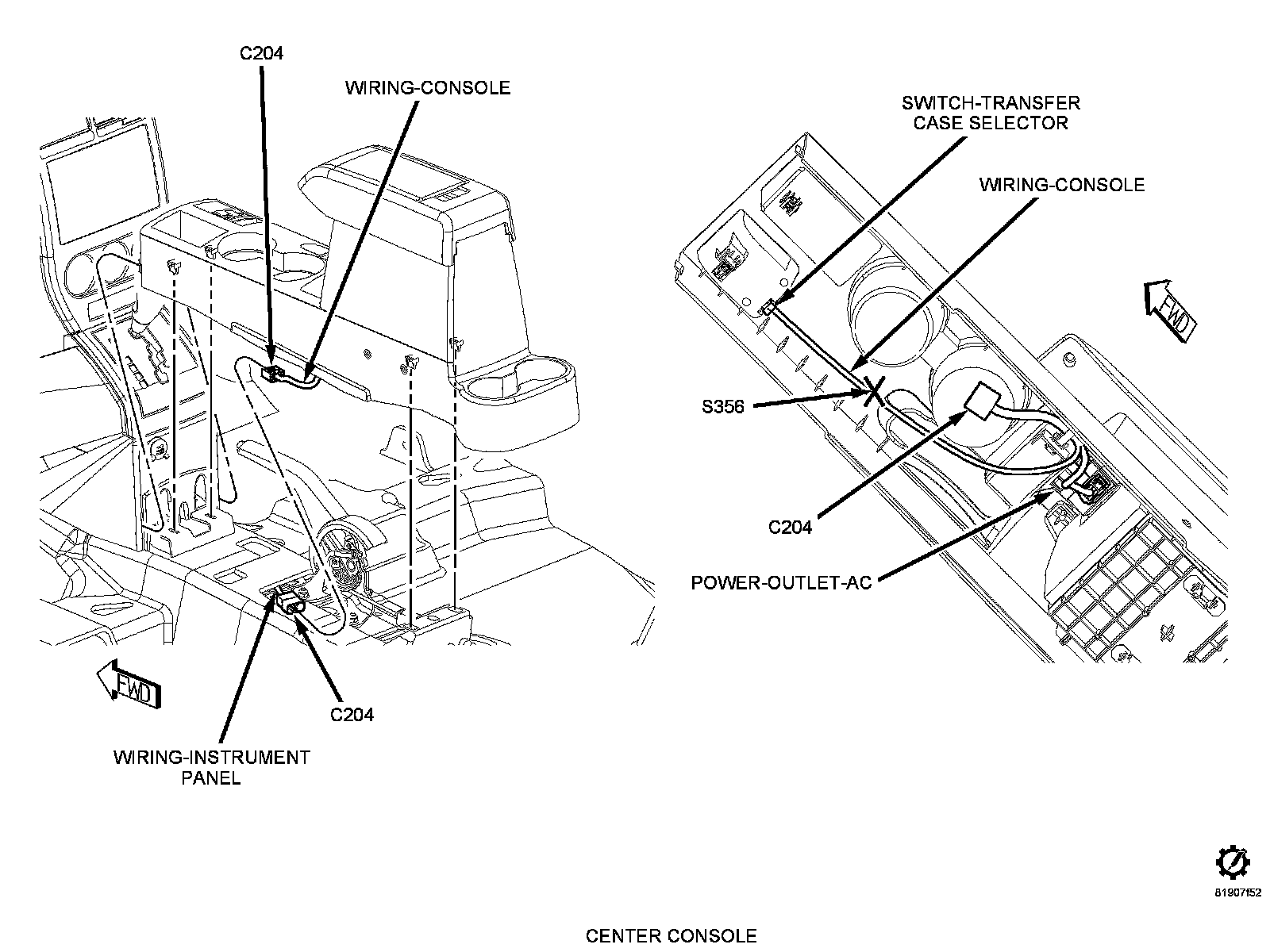

Component Location - 34
