Capacitor-Ignition

Component ID: 154

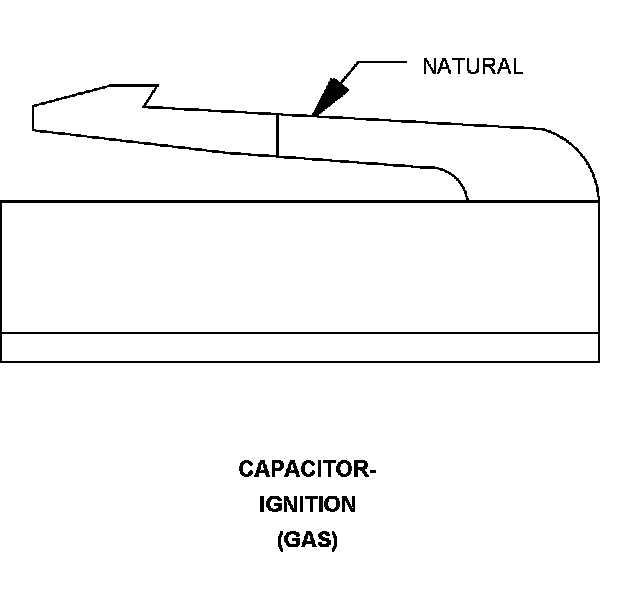

Component : CAPACITOR-IGNITION

Connector:
Name : CAPACITOR-IGNITION
Color : NATURAL
# of pins : 1
Qualifier : (GAS)




Pin Circuit Description
1 F344 18DB/LB FUSED MAIN RELAY OUTPUT

Component Location - 14




Component Location - 16
