Coil-Ignition 1

Component ID: 153

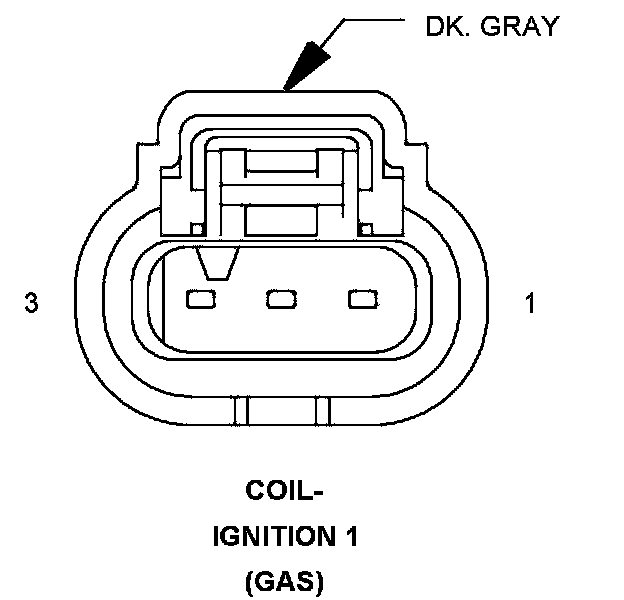

Component : COIL-IGNITION 1

Connector:
Name : COIL-IGNITION 1
Color : DK. GRAY
# of pins : 3
Qualifier : (GAS)




Pin Circuit Description
1 - -
2 K19 18DG/LB COIL 1 CONTROL
3 F344 18DB/LB FUSED MAIN RELAY OUTPUT

Component Location - 16
