Lamp-Tail Turn-Left

Component ID: 290
Component : LAMP-TAIL TURN-LEFT

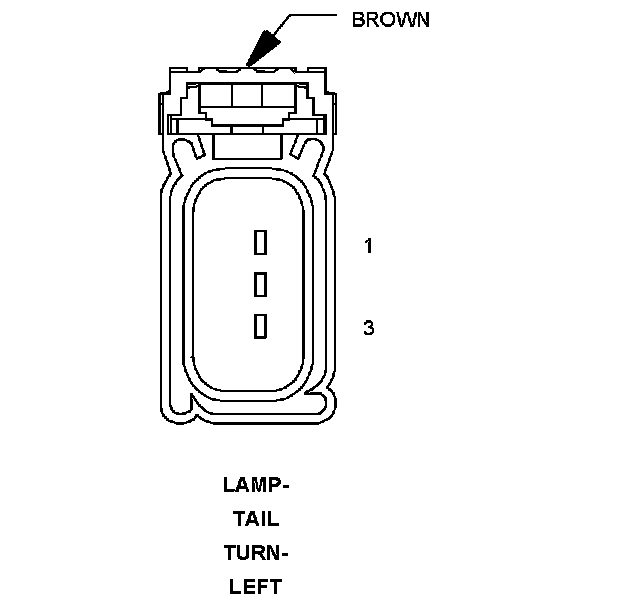

Connector:
Name : LAMP-TAIL TURN-LEFT
Color : BROWN
# of pins : 3




Pin Circuit Description
1 Z960 18BK/LB GROUND
2 - -
3 L63 20DG/RD LEFT REAR TURN SIGNAL

Component Location - 66




Component Location - 67




Component Location - 53




Component Location - 68
