Shifter CVT

Component ID: 186
Component : ASSEMBLY-SHIFT LEVER

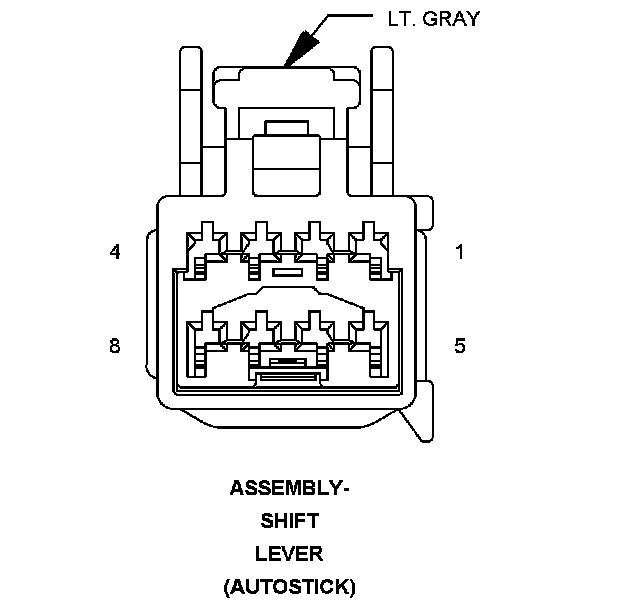

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color : LT. GRAY
# of pins : 8
Qualifier : (AUTOSTICK)




Pin Circuit Description
1 T5 20DG/LG AUTOSTICK UPSHIFT SWITCH SIGNAL
2 - -
3 Z937 20BK/YL GROUND
4 E12 20OR/GY PANEL LAMPS DRIVER
5 T44 20YL/DG AUTOSTICK DOWNSHIFT SWITCH SIGNAL
6 Z937 20BK/YL GROUND
7 Z937 20BK/YL GROUND
8 K321 20BR/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK

Component Location - 25




Component Location - 30




Component Location - 32

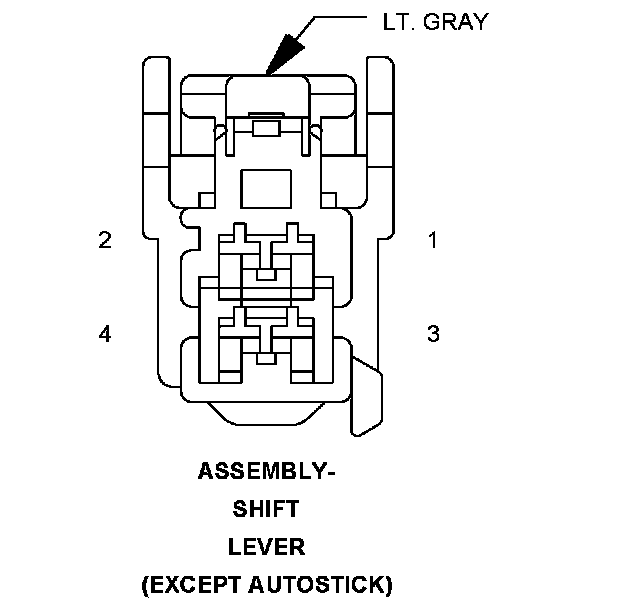

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color : LT. GRAY
# of pins : 4
Qualifier : (EXCEPT AUTOSTICK)




Pin Circuit Description
1 Z937 20BK/YL GROUND
2 E12 20OR/GY PANEL LAMPS DRIVER
3 Z937 20BK/YL GROUND
4 K321 20BR/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK

Component Location - 25




Component Location - 30




Component Location - 32
