Power Outlet-AC

Component ID: 217
Component : POWER OUTLET-AC

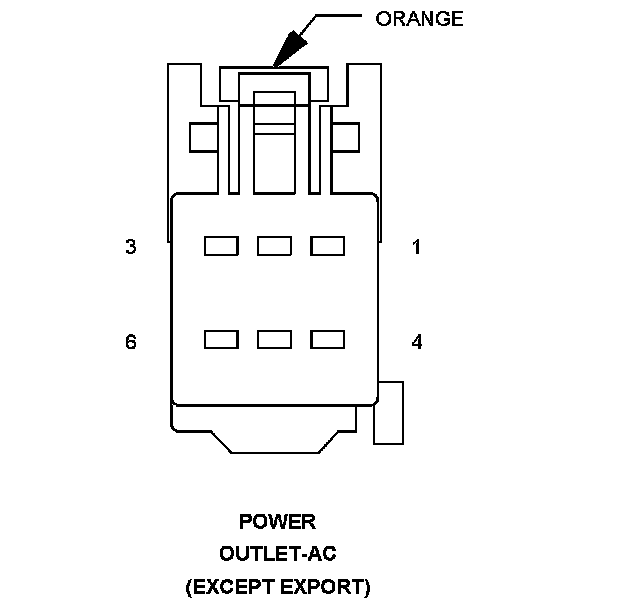

Connector:
Name : POWER OUTLET-AC
Color : ORANGE
# of pins : 6
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 P805 18LG/LB INVERTER ENABLE SWITCH SIGNAL
2 - -
3 P801 18LG/PK 110 VOLT AC LINE 1
4 F996 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 - -
6 P809 18LG/LB 110 VOLT AC COMMON

Component Location - 34
