Removal
Removal
REMOVAL
1.
Remove the drain channel.
Removal
2.

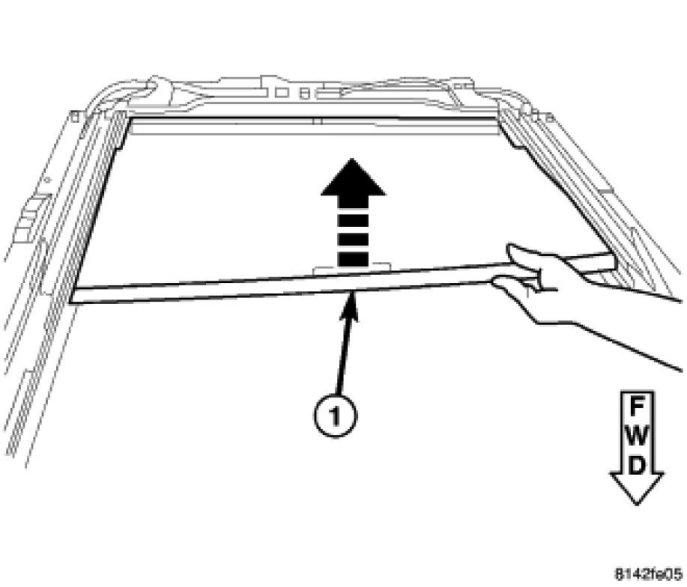

Push up the front center of the sunshade (1) to pop out the front two feet.
3.

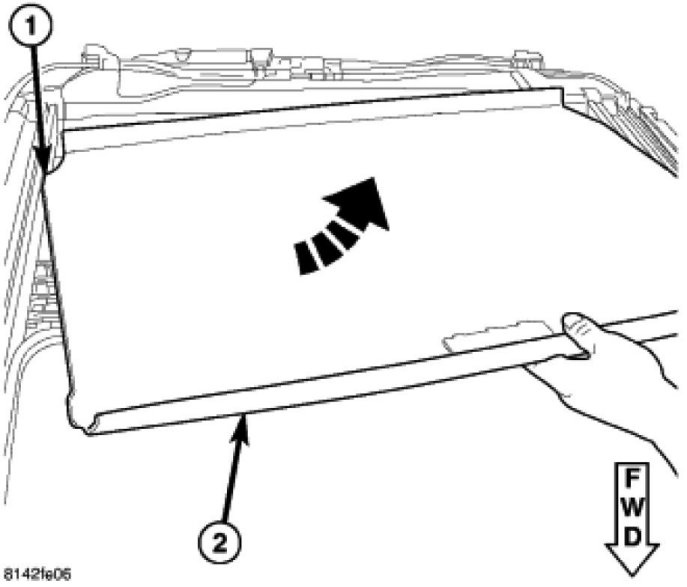

Rotate the sunshade (2) so that the other feet (1) are removed from the guide track.
