Carpet - Installation

INSTALLATION





1. Install the carpet,

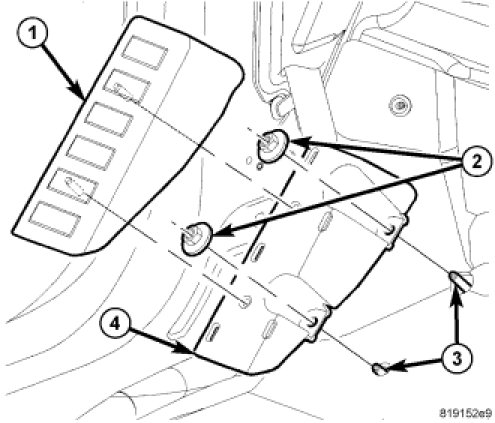

2. Install the footrest (4), the nuts (2), and the cover (1).




3. Install the quarter trim panels (2), Quarter Trim Panel - Installation.




4. Install the liftgate scuff plate (1), Liftgate Sill Scuff Plate - Installation.




5. Install the cowl side trim panels (1), Cowl Trim - Installation.




6. Install the door scuff plates (3), Door Sill Scuff Plate - Installation.




7. Install the lower B-pillar trim (2), Installation




8. Install the shifter housing (2), Center Console Shifter Housing - Installation.




9. Install the floor console (1), Floor Console - Installation.




10. Install the rear seat backs (3), Seat Back - Installation.




11. Install the front seats (1), Seat - Installation.
12. Connect battery negative cable.
