Installation







INSTALLATION

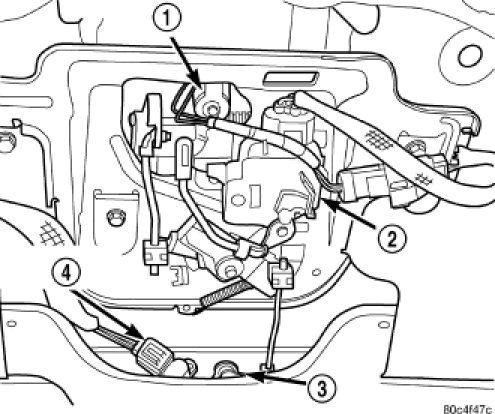

1. Install liftgate lock motor (2) on the liftgate.
2. Install motor wire harness connector.
3. Install the liftgate trim panel.
4. Connect the battery negative cable.
