Installation

INSTALLATION

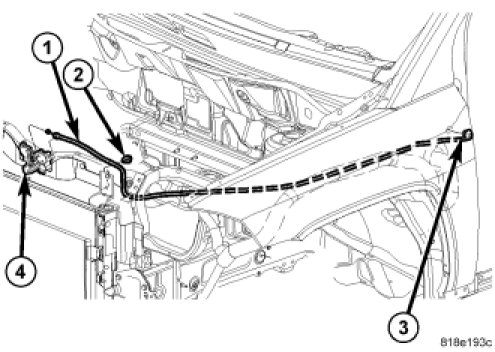

1. Install the cable (1) and route through the cowl panel (3).
2. Install the push pin fastener (2).




3. Install the handle (3) and install the screws (2).
4. Install the cowl trim panel, Cowl Trim - Removal

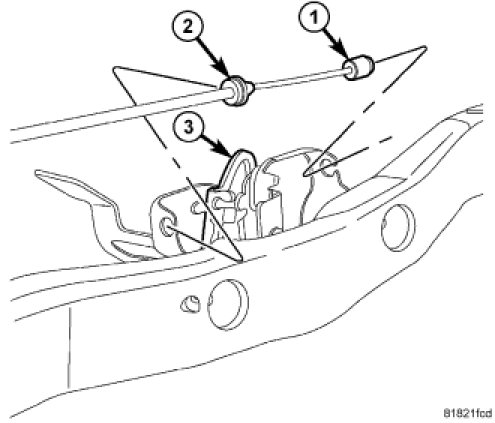

5. Connect the hood latch cable (1 and 2) to the hood latch (3).
