C8 TIPM

Component ID: 43
Component : C8 TIPM

Connector:

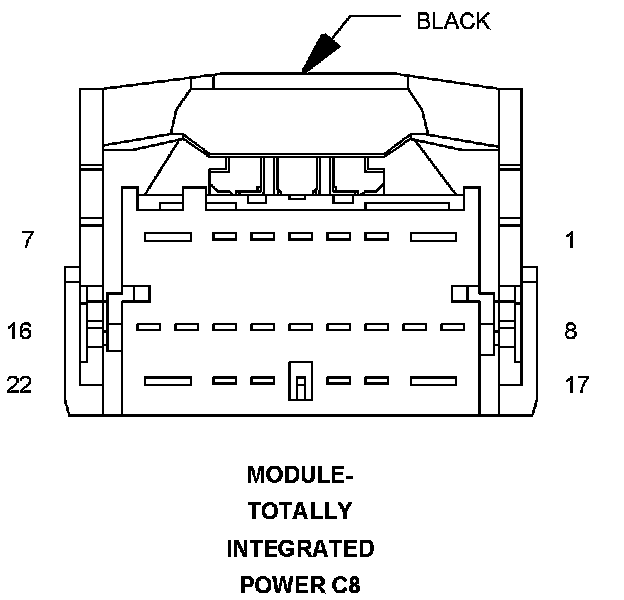

Name : MODULE-TOTALLY INTEGRATED POWER C8
Color : BLACK
# of pins : 22




Pin Circuit Description
1 C7 12DB/PK BLOWER MOTOR CONTROL
2 A927 20RD/GY FUSED B(+)
3 A415 20RD/TN FUSED B(+) (I.O.D.)
4 A414 20RD/DG FUSED B(+) (I.O.D.)
5 - -
6 A420 18WT/RD FUSED B(+) (I.O.D.)
7 A14 12RD/YL FUSED B(+)
8 F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT
10 - -
11 L1 20WT/LG BACKUP LAMP SWITCH OUTPUT
12 F929 20PK/RD FUSED IGNITION SWITCH OUTPUT (RUN)
13 A411 20RD/LG FUSED B(+) (I.O.D.)
14 A419 18RD/DG FUSED B(+) (I.O.D.)
15 - -
16 - -
17 C515 12LB/OR REAR WINDOW DEFOGGER CONTROL OUTPUT
18 A413 18RD/LB FUSED B(+) (I.O.D.)
19 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
20 F985 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
21 F986 20PK/BK FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
22 K542 12BR/WT MAIN RELAY OUTPUT

Component Location - 9
