C7 TIPM

Component ID: 9

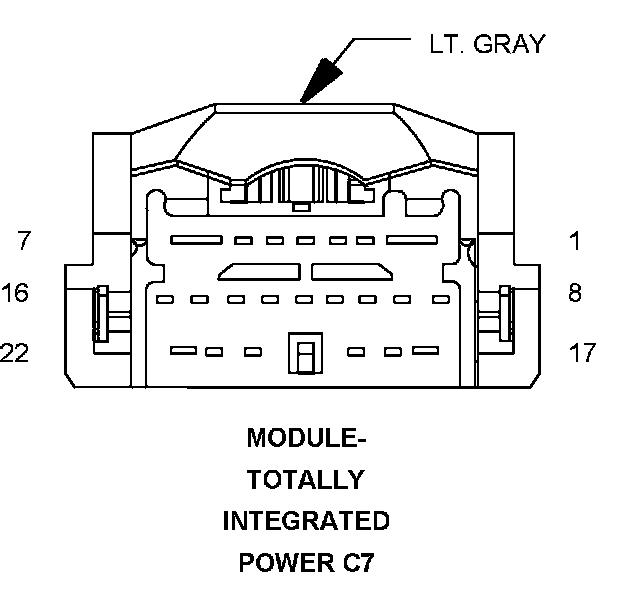

Component : C7 TIPM

Connector:
Name : MODULE-TOTALLY INTEGRATED POWER C7
Color : LT. GRAY
# of pins : 22




Pin Circuit Description
1 - -
2 A923 18RD/WT FUSED B(+)
3 A924 20RD FUSED B(+)
3 A924 20DG/WT FUSED B(+)
4 A952 20RD/OR FUSED B(+)
5 F200 20PK/LB FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 A100 18RD/VT FUSED B(+)
7 F100 20DG/YL FUSED IGNITION SWITCH OUTPUT (RUN)
8 - -
9 A933 20RD/LG FUSED B(+)
10 - -
11 N1 16DB/OR FUEL PUMP CONTROL OUTPUT
12 - -
13 A417 20RD/DG FUSED B(+) (I.O.D.)
14 - -
15 - -
16 A412 20RD/DB FUSED B(+) (I.O.D.)
17 A16 12RD/BR FUSED B(+)
18 A932 18RD/BR FUSED B(+) (I.O.D.)
19 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
20 - -
21 F981 14PK/BR IGNITION SWITCH OUTPUT (RUN-ACC)
22 A999 18RD/PK FUSED B(+)

Component Location - 9
