Jeep Truck
>>
1990
>>
Wrangler L4-150 2.5L VIN E TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Component Locations
Component Locations

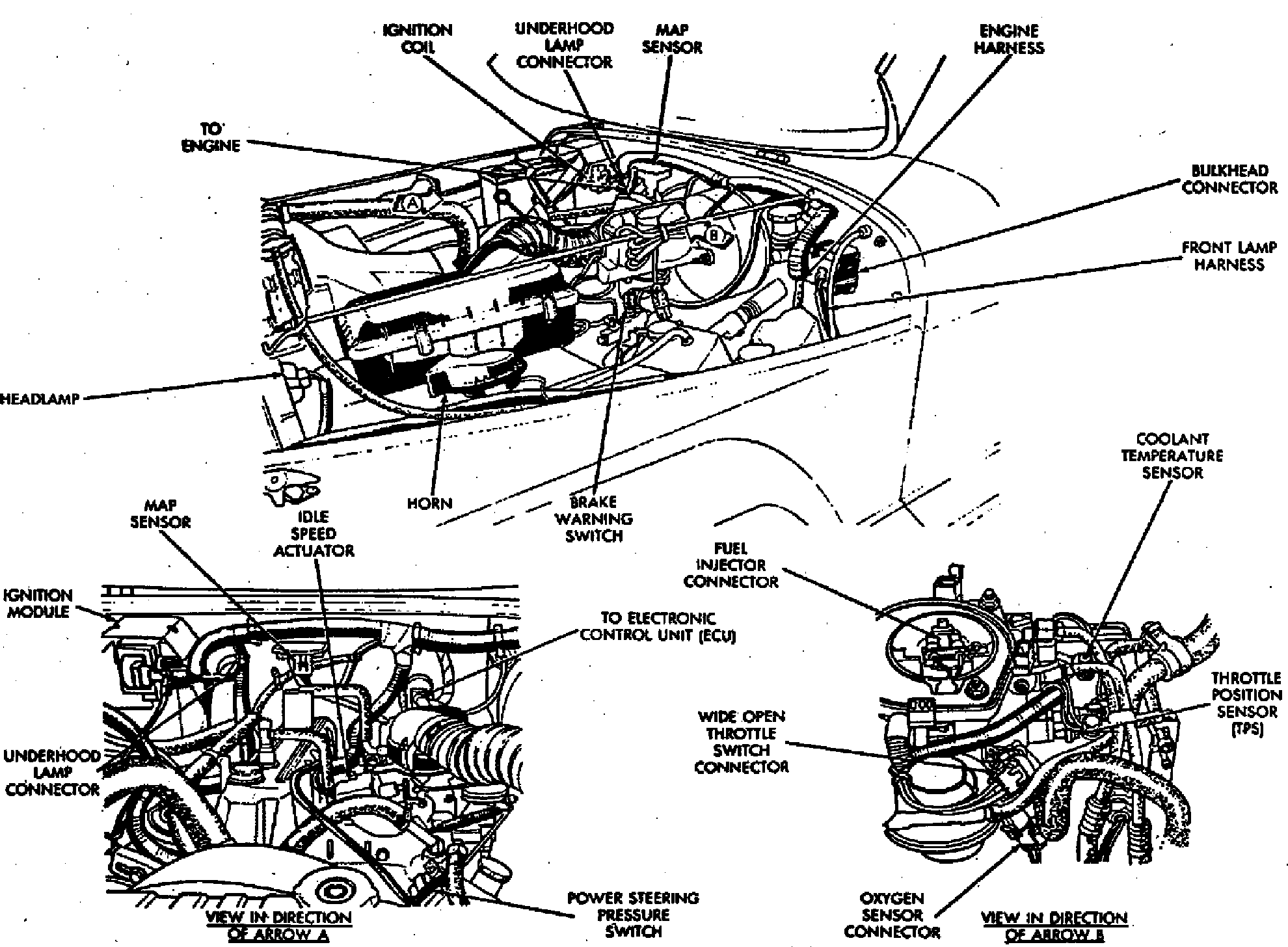

LH Side Of Engine.:
Engine Components.:
Upper LH Side Of Engine
Applicable to: 4-150/2.5L Engine
