Campaign - '2WD Only Traction Reduced' Displayed On Start

UPS7212-1bNAS1

20-DEC-12

*THIS UPDATE PRIOR TO SALE NOTICE IS VALID FOR A LIMITED TIME ONLY AND WILL EXPIRE ON 30 JUNE 2013*

SECTION: 307-07
Update Prior to Sale: 2WD only traction reduced Message Displayed
on Start Up

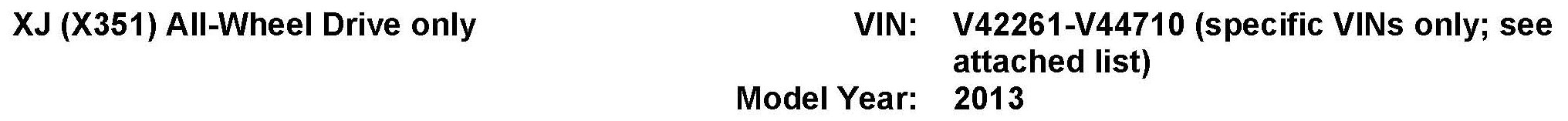

AFFECTED VEHICLE RANGE:

CONDITION SUMMARY:

Situation:
A potential concern has been identified on XJ All-Wheel Drive vehicles where a 2WD only traction reduced message may be displayed on vehicle start up. The message will clear on the next ignition cycle.

Action:

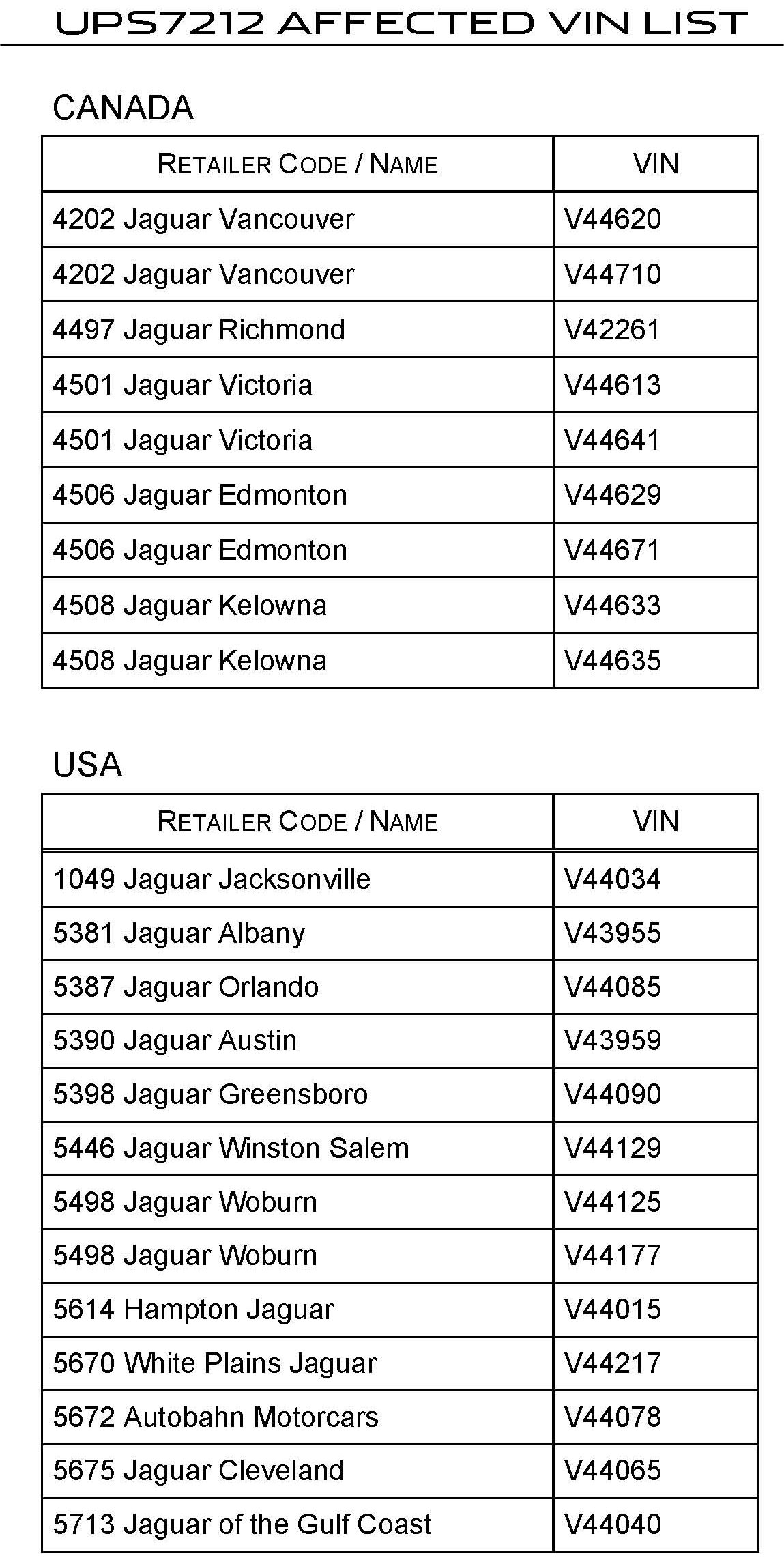

Retailers are required to before sale HOLD all affected vehicles in the above VIN range that are in their control and refrain from releasing the vehicles for new or used vehicle sale pending completion of the rework action detailed in this Technical Bulletin. For vehicles in retailer inventory, this should be done at the completion of the Pre-Delivery Inspection (PDI) process.

PARTS:

No parts necessary

TOOLS:

IDS with latest IDS-DVD and Calibration File; first available on IDS-DVD132.02 v.122
Jaguar-approved Midtronics Vehicle Power Supply

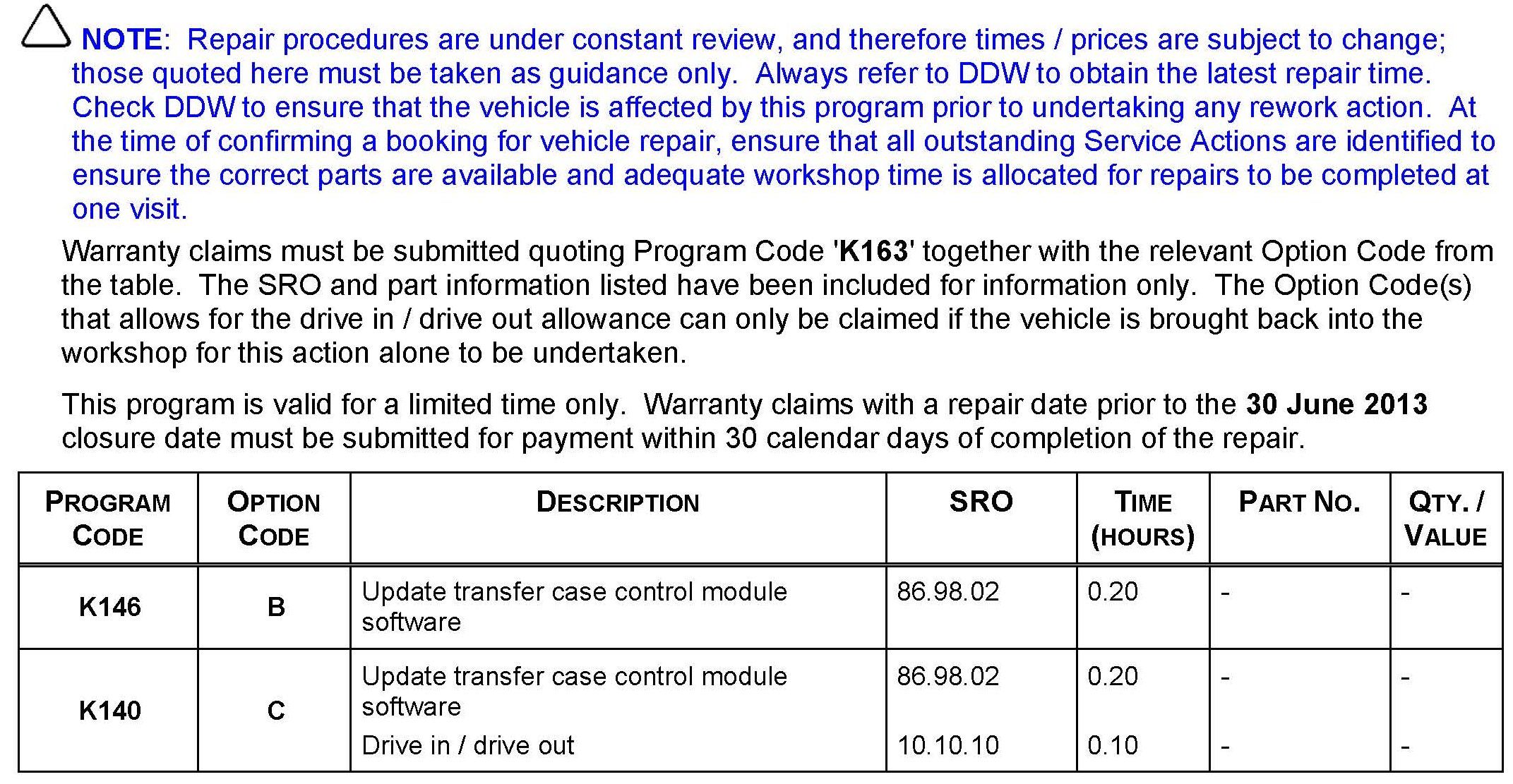

WARRANTY:

REPAIR PROCEDURE

CAUTION:
Ensure all ignition 'ON' / ignition 'OFF' requests are carried out; failure to perform these steps may cause damage to control modules in the vehicle.

CAUTION:
A Jaguar-approved Midtronics Vehicle Power Supply must be connected to the vehicle battery during IDS diagnosis / module programming.

1. Connect the Jaguar-approved Midtronics Vehicle Power Supply to the vehicle battery.

2. Turn ignition 'ON' (engine not running).
NOTE:
IDS must be loaded with IDS-DVD133.02 v.122 or later.

3. Connect the IDS to the vehicle and begin a new Symptom Driven Diagnostics (SDD) session.

4. Follow the on-screen prompts, allowing SDD to read the VIN and identify the vehicle.

5. From the Session Type selection screen, choose 'Campaigns'.

6. From the Recommendations tab, select 'Run' to perform the Configure existing module - Transfer case control module' option.

7. Follow all on-screen instructions to complete this task.

8. Exit the current session.

9. Disconnect the IDS and the Midtronics Vehicle Power Supply from the vehicle.
