Campaign - Map And Point Of Interest Data Update
UPS5612-1bNAS121-NOV-12
THIS UPDATE PRIOR TO SALE NOTICE IS VALID FOR A LIMITED TIME ONLY AND WILL EXPIRE ON 08 MAY 2013
SECTION: 419-07
Update Prior to Sale: Map and Point of Interest Data Update
AFFECTED VEHICLE RANGE:
XJ (X351) VIN: V36314 - V41673 (specific USA vehicles only)
Model Year: 2013
CONDITION SUMMARY:
Situation:
To ensure 2013 model year Jaguar XJ vehicles are equipped with the very latest Navigation system map and Point of Interest (POI) data, a limited number of vehicles within the listed VIN range require a Navigation system map update.
Action:
Retailers are required to before sale HOLD all affected vehicles in the listed VIN range that are in their control and refrain from releasing the vehicles for new or used vehicle sale pending completion of the rework action detailed in this Technical Bulletin.

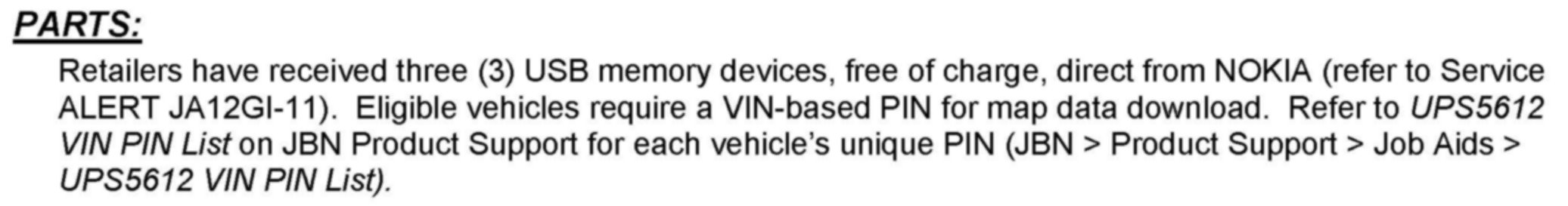

PARTS
TOOLS:
Refer to Workshop Manual for any required special tools

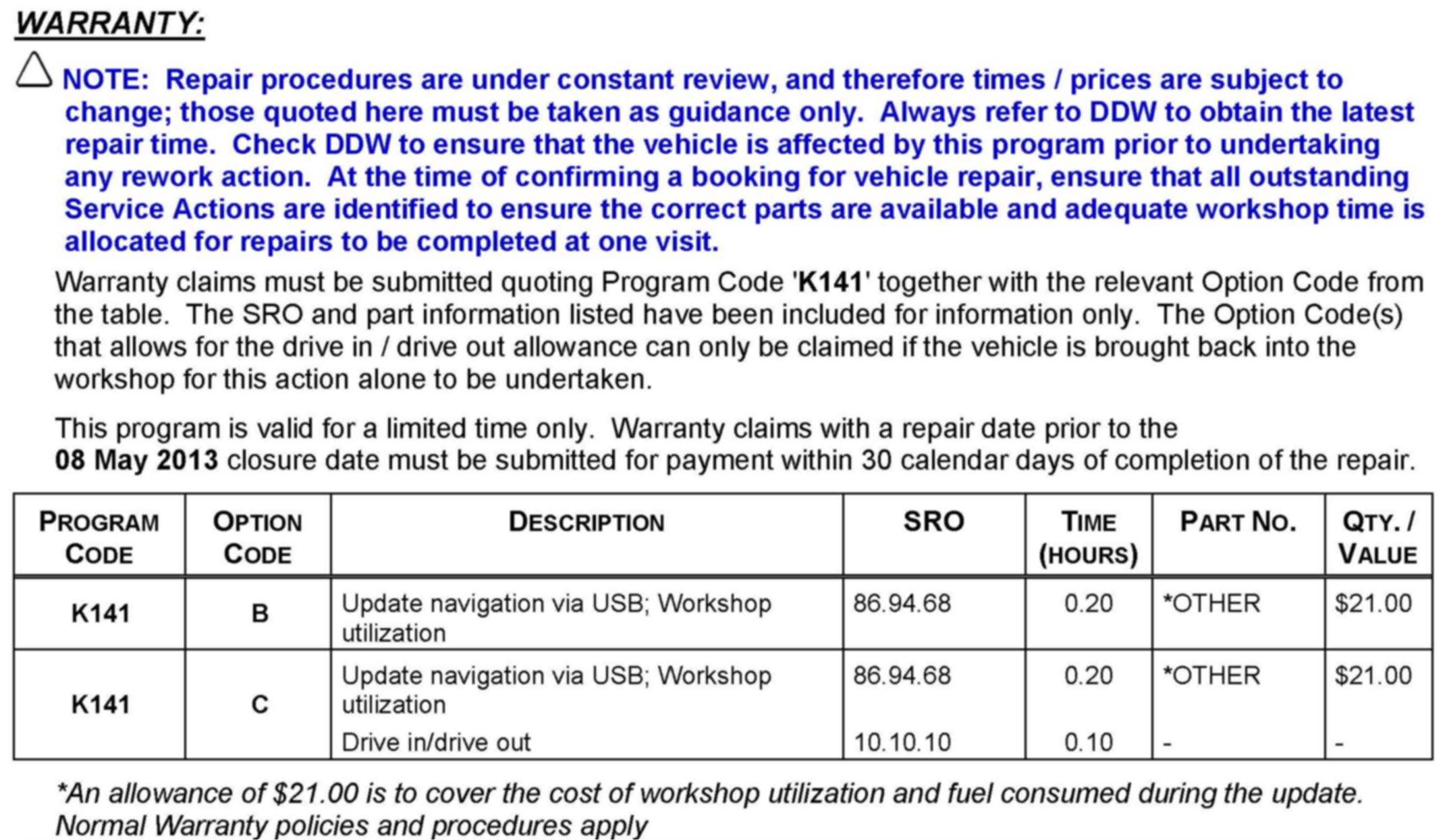

WARRANTY
REPAIR PROCEDURE
NOTE:
This update can take up to 2.5 hours to complete (no interaction is required during the download).
NOTE:
During the update of the navigation map, navigation, entertainment and telephone features are not operational until the update is complete.
NOTE:
If the ignition is switched OFF during the map update, the update will continue automatically the next time the vehicle is started.
NOTE:
It is recommended that the vehicle is not interfered with during the map download process.
NOTE:
If an on-screen instruction appears on the touchscreen stating map update has paused; press the cancel button to continue the update.
1. WARNING: When working on a vehicle in the workshop, always make sure that:
^ The vehicle is not parked as to restrict airflow to the front of the engine / grill area.
^ The transmission is in Park (P).
^ The parking brake is ON.
^ There is adequate ventilation or an extraction hose is used to remove exhaust fumes.
Start the engine and allow to idle.

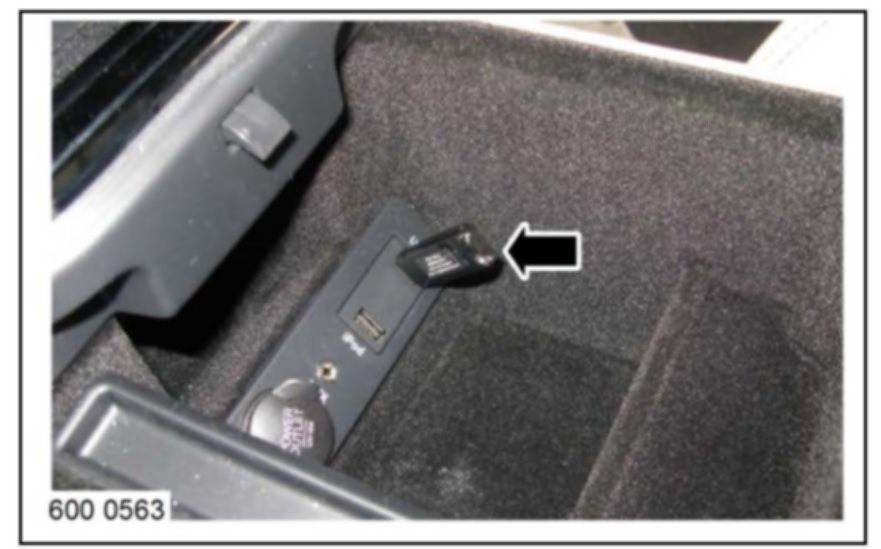

2. NOTE: 2012MY shown; 2013MY similar.
Insert the USB stick containing the navigation map data into the USB interface.

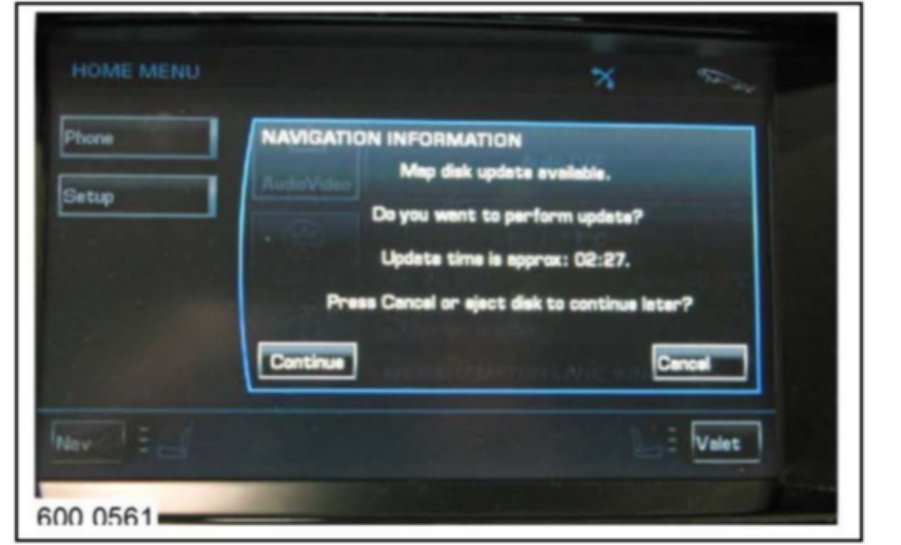

3. Follow the instructions on the touch screen.

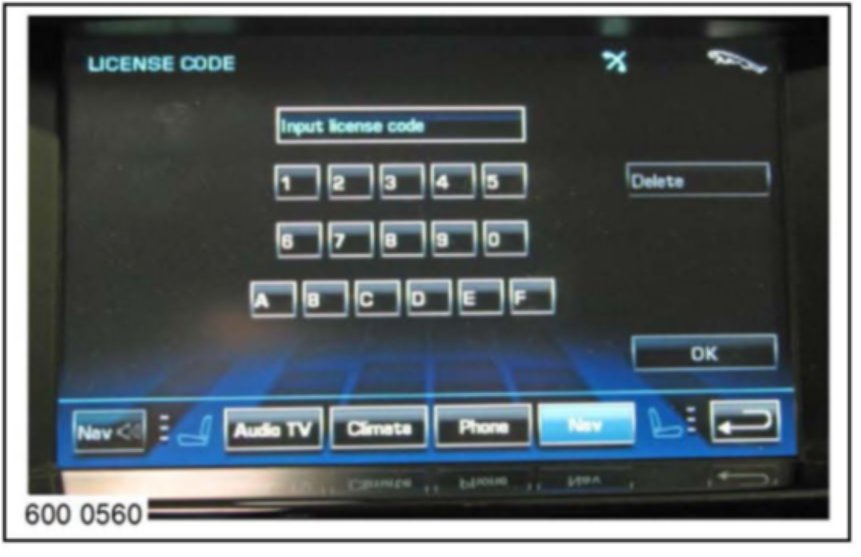

4. NOTE: The on-screen instructions may refer to disk during the download process of a DVD-based system. If an on-screen instruction appears on the touchscreen stating map update has paused; press the cancel button to continue the update. Enter the map license code.
5. When the update is downloaded, a complete message will be displayed on the touch screen.
^ Press OK to restart the navigation system, and then remove the USB stick immediately from the USB interface.
^ Allow 3 minutes for the navigation to restart.
6. Exit and lock the vehicle and leave for at least 15 minutes before using the navigation system.
