Seat Temperature Control Module
>>
Locations
>>
C3HS03B
C3HS03B
C3HS03B

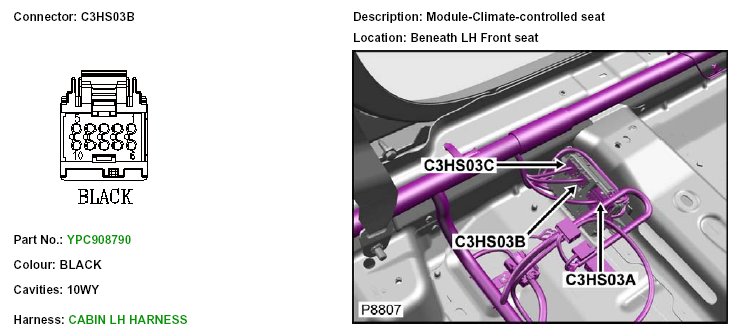

C3HS03B Part 1:

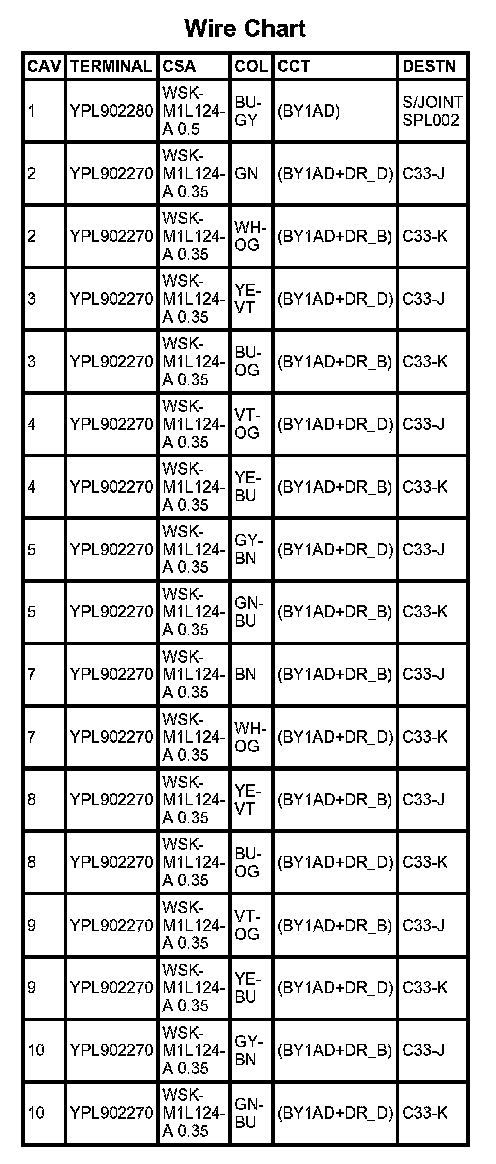

C3HS03B Part 2:
