Wheels and Tires: Service and Repair

Wheel and Tire
Removal





1. CAUTION: Do not use heat to loosen a seized wheel nut. Excessive heat may cause damage to the wheel and wheel bearings.

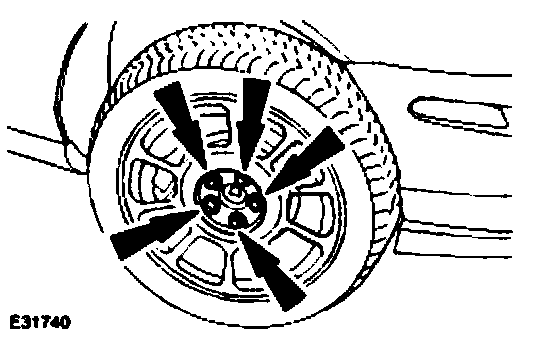

Loosen the wheel nuts.
2. Raise and support the vehicle.





3. Remove the wheel and tire assembly.

Installation





1. To install, reverse the removal procedure.
Tighten to 125 Nm.
