Visual Inspection Chart

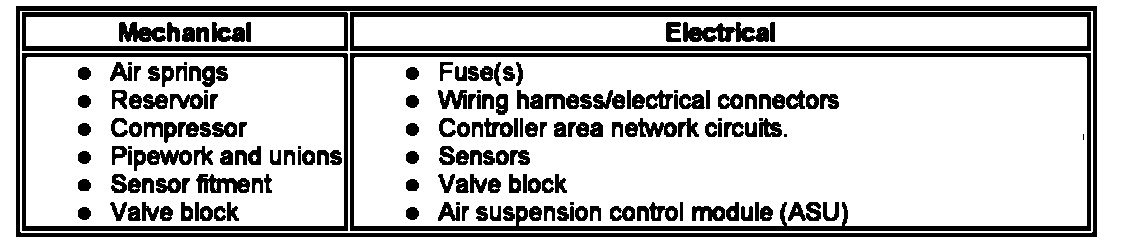

Visual inspection Chart





1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
2. If the cause is not visually evident and the Jaguar approved diagnostic system is not available, use a fault code reader to retrieve the fault codes before proceeding to the diagnostic trouble code (DTC) index chart, or the symptom chart if no DTCs are set. Symptom Related Diagnostic Procedures
