Oil Pan, Engine

Oil Pan

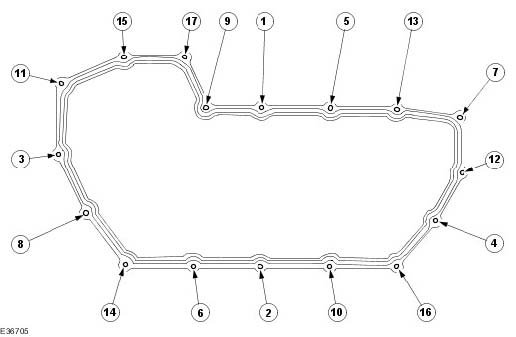

Tighten the retaining bolts in the indicated sequence in two stages.
Stage 1: bolts 1 to 7, tighten 5 Nm
Stage 2: bolts 1 to 17, tighten 12 Nm
