Rear Vertical Accelerometer

Rear Vertical Accelerometer
Removal





1. Remove the luggage compartment floor covering.
Remove the luggage compartment floor covering securing screws.
Remove the luggage compartment floor covering.





2. Remove the luggage compartment side trim panel.

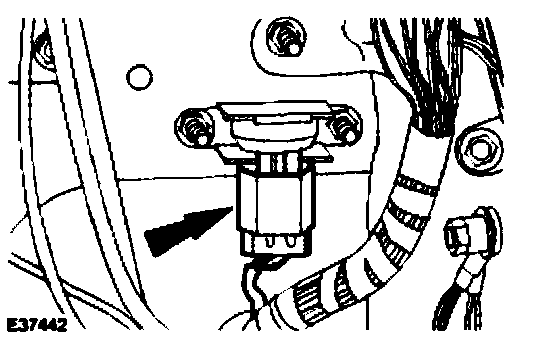

3. Disconnect the rear vertical accelerometer electrical connector.





4. CAUTION: Make sure the vertical accelerometer is not dropped in transit as damage will be caused to internal components.

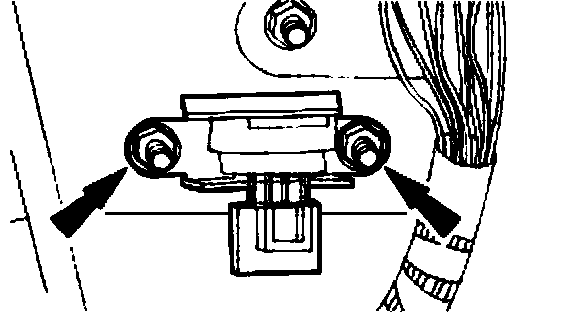

Remove the rear vertical accelerometer.

Installation

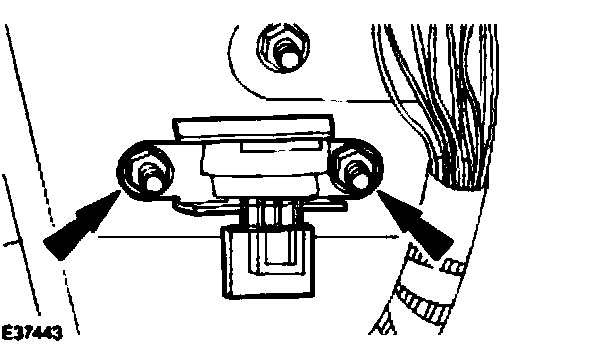

1. To install, reverse the removal procedure.
Tighten to 4 Nm.
