Front Vertical Accelerometer

Front Vertical Accelerometer
Removal
1. Remove the wheel and tire assemble.
2. Remove the right-hand side front fender splash shield.

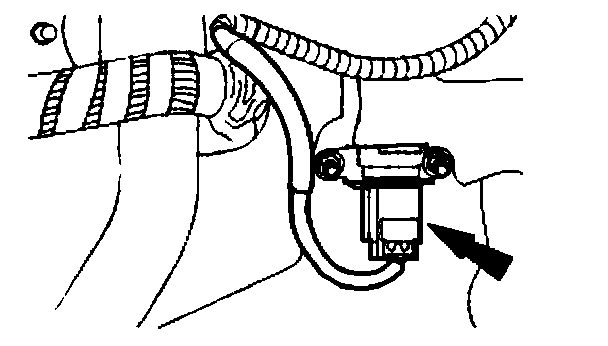

3. Disconnect the front vertical accelerometer electrical connector.

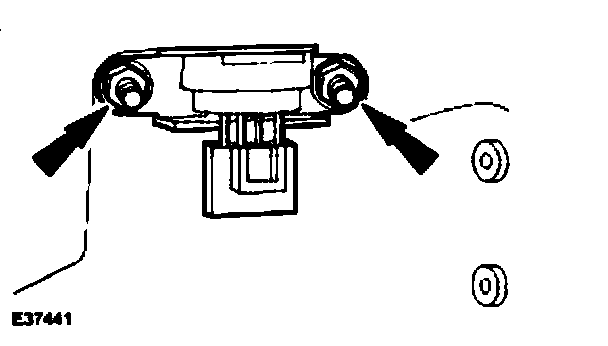

4. CAUTION: Make sure the vertical accelerometer is not dropped in transit as damage will be caused to internal components.

Remove the front vertical accelerometer.

Installation

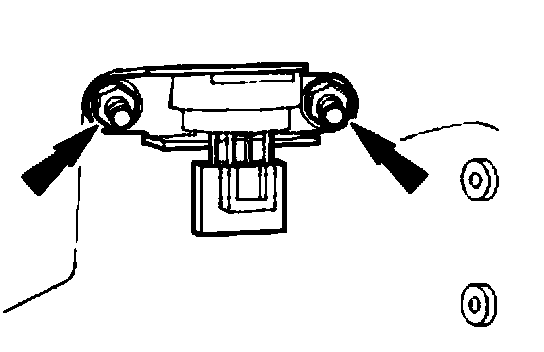

1. To install, reverse the removal procedure.
Tighten to 4 Nm.
