Side Impact Sensor

C-Pillar Side Impact Sensor

Removal
1. Disconnect the battery ground cable.
2. Remove the C-pillar lower trim.

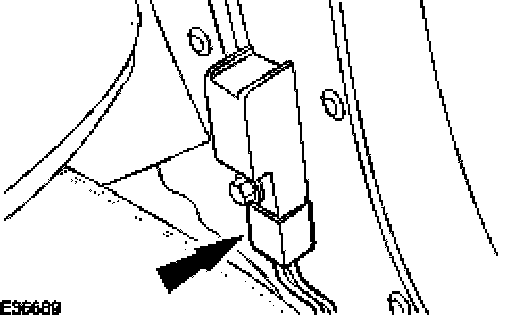

3. Disconnect the electrical connector.

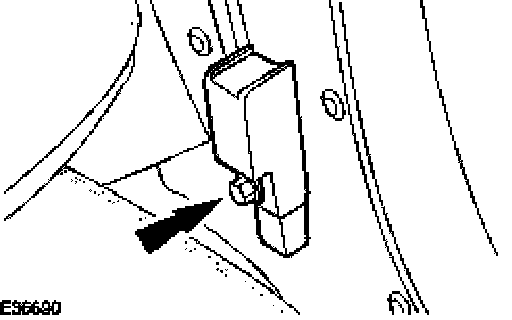

4. Remove the C-pillar side impact sensor.

Installation







1. To install, reverse the removal procedure.

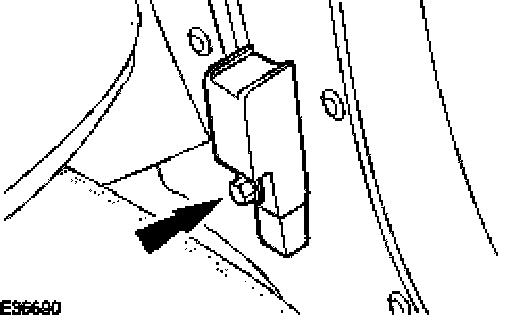

- Tighten to 12 Nm.
