Fuel Temperature Sensor: Service and Repair

Fuel Temperature Sensor

Removal

Vehicles with 3.5L or 4.2L engine without supercharger

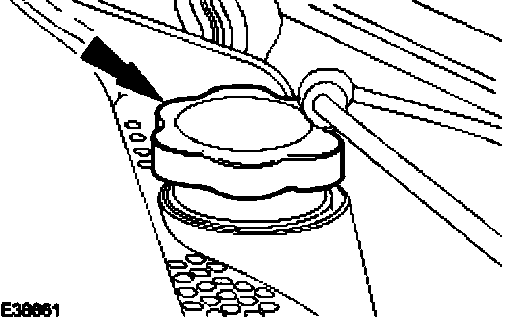

1. Remove the oil filler cap.

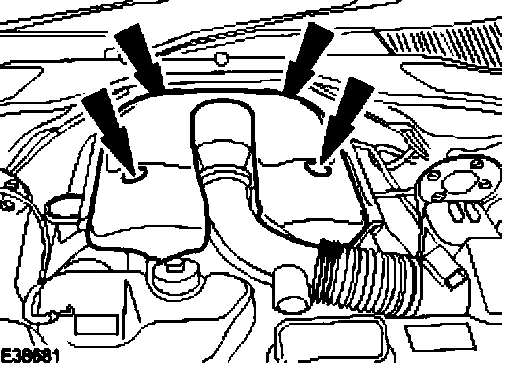

2. Remove the engine cover.

Vehicles with supercharger






1. Remove the engine cover.

All vehicles

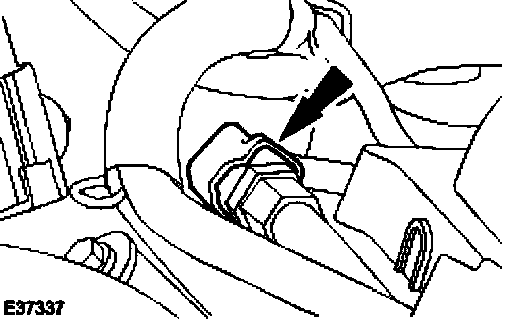

1. Disconnect the fuel temperature sensor electrical connector.

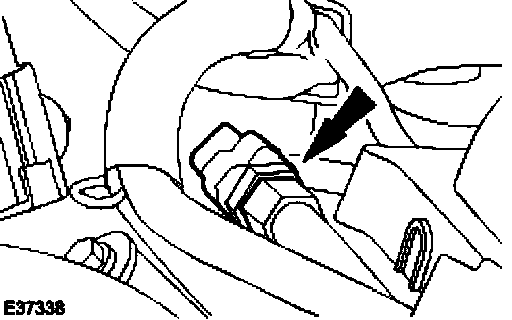

2. Remove the fuel temperature sensor.






Installation






1. To install, reverse the removal procedure.
- Tighten to 7 Nm.
