Headlamp Alignment Sensor: Service and Repair

Headlamp Leveling Sensor

Removal
1. Remove the wheel and tire assembly.

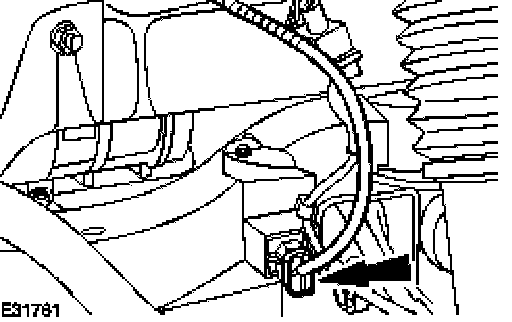

2. Disconnect the headlamp leveling sensor electrical connector.

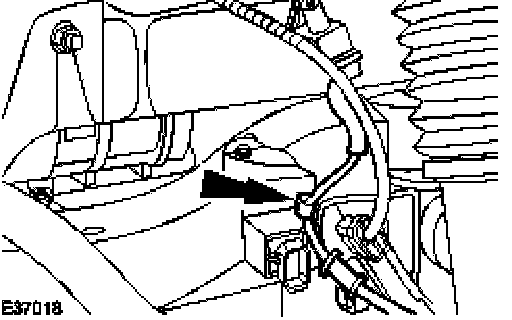

3. Detach the wheel speed sensor harness.

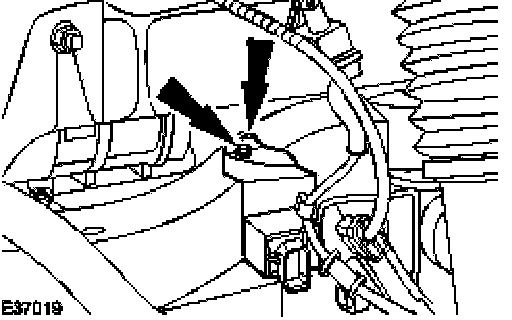

4. Detach the headlamp leveling sensor link rod.







5. Remove the headlamp leveling sensor.
- Remove the headlamp leveling sensor retaining bolts.

Installation
1. To install, reverse the removal procedure.







2. Tighten to 20 Nm.
