Brake Switch (Cruise Control): Service and Repair

Speed Control Deactivator Switch

Removal

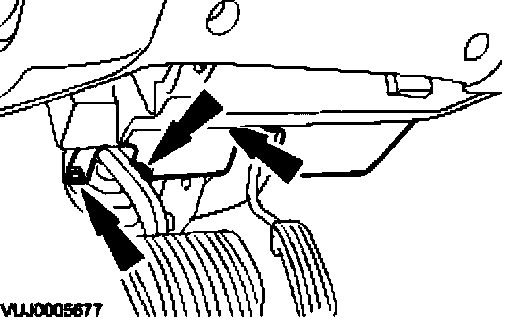

1. Remove the driver side instrument panel lower panel.
2. Reposition the driver seat to its maximum rearward position.

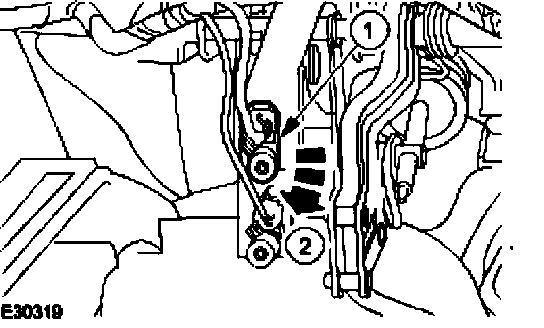

3. Remove the speed control deactivator switch.
1. Disconnect the speed control deactivator switch electrical connector.
2. Remove the speed control deactivator switch.

Installation
1. To install, reverse the removal procedure.
- Operate the brake pedal to allow the speed control deactivator switch to remain in the fully extended position during installation.
- Releasing and then pulling back on the pedal untill the pedal reaches the stop in the brake booster, will adjust the speed control de-activator switch plunger to the required setting.
