Main Relay (Computer/Fuel System): Locations

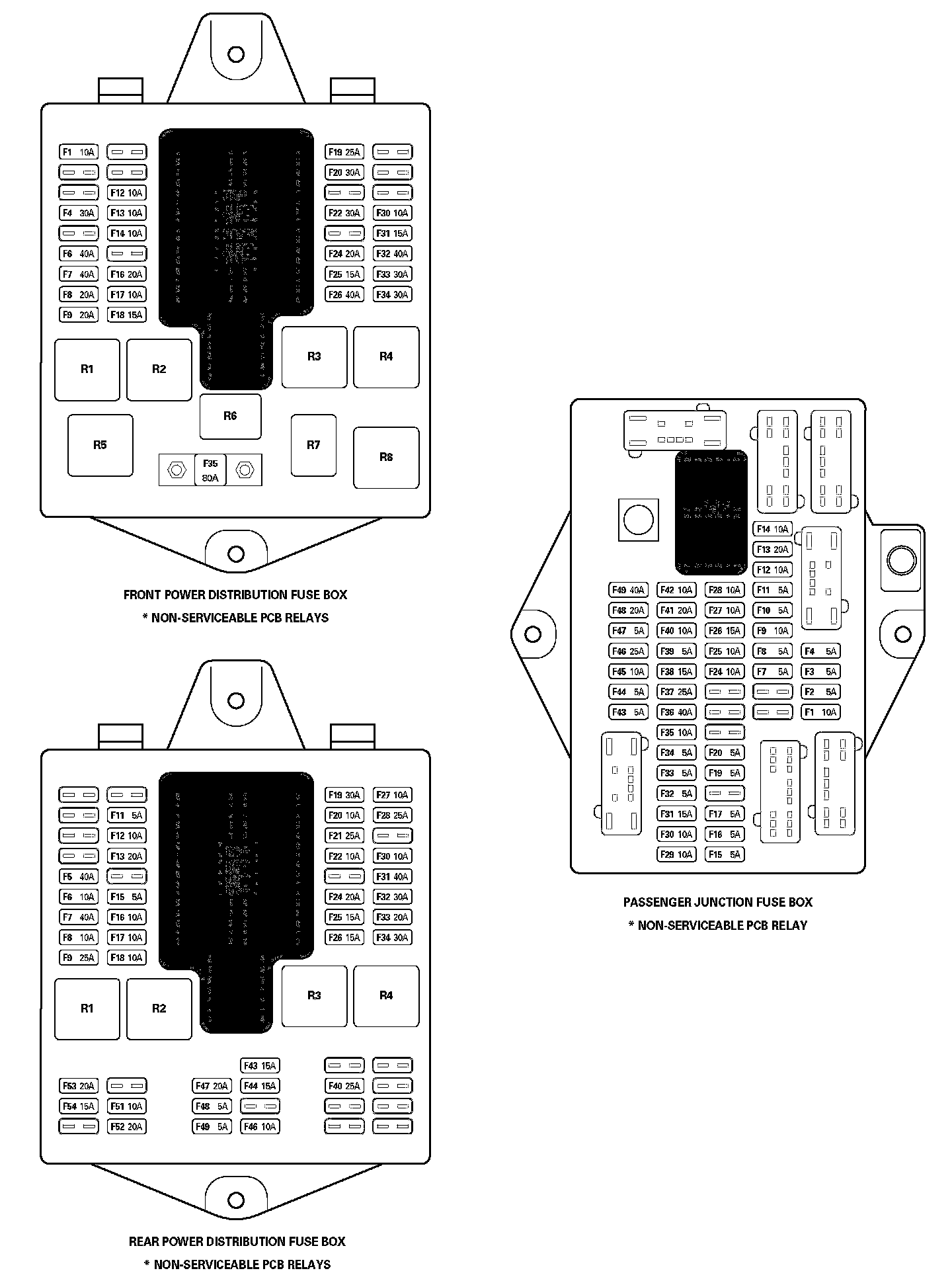

Relay and Fuse Location

Relay and Fuse Location:

Front Power Distribution Fuse Box
Relays
R1 Air Suspension Relay
R2 Main Beam Relay
R3 Windshield Heater Relay - LH
R4 Wiper On/Off Relay
R5 Dip Beam Relay
R6 Front Fog Lamp Relay
R7 Ignition Coil Relay
R8 Wiper Fast/Slow Relay
R9 Slave Ignition Relay
R10 Starter Relay
R11 EMS Control Relay
R11 Power Wash Relay
R12 Throttle Motor Relay
R13 Heated Wiper Park Relay
R13 Windshield Heater Relay - RH
R14 Horn Relay


Front Power Distribution Fuse Box
Relays
R1 Blower Relay
R2 Rear Ignition Relay
R3 Accessory Relay
R5 Heated Rear Window Relay
R6 Fuel Pump Relay
R7 Switched System Power Relay 3
R7 Switched System Power Relay 4
R8 Auxiliary Relay
R8 Switched System Power Relay 5


Passenger Junction Fuse Box
Relays
R1 Switched System Power Relay 1
R1 Switched System Power Relay 2


Relays in trunk next to battery
Transit Isolation Relay
