Navigation Module: Service and Repair

336640

Navigation System Module

Removal
1. Disconnect the battery ground cable.

NOTE: Make sure the mep DVD has been removed before disconnecting the battery ground cable.

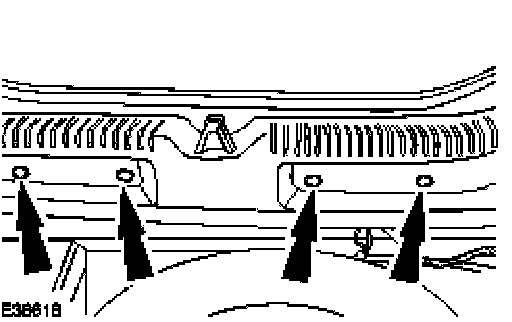

2. Remove the luggage compartment trim panel lower retaining clips.







3. Remove the luggage compartment trim panel.

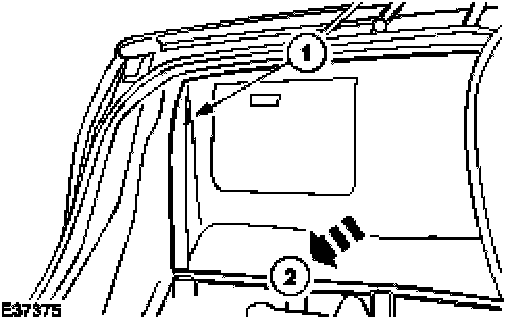

4. Detach the luggage compartment side trim panel.
- Remove the luggage compartment side trim panel retaining clip.
- Detach the luggage compartment side trim panel.







5. Detach the air suspension pipe.

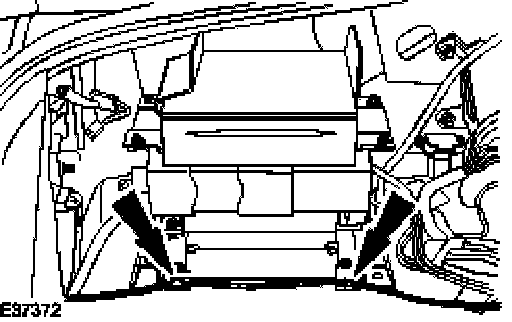

6. Detach the module retaining bracket.

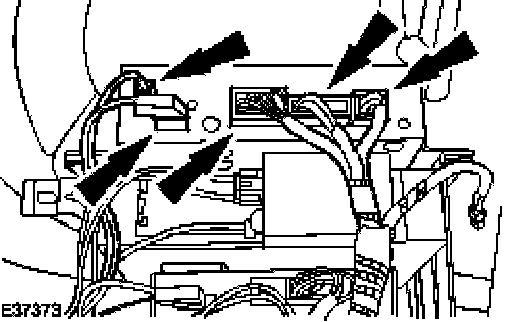

7. Disconnect the navigation system module electrical connectors and fibre optic connector.







8. Remove the navigation system module.

NOTE: Right-hand shown, left-hand similar.

Installation
1. To install, reverse the removal procedure.
