Antenna Control Module: Service and Repair

86.51.08

Antenna Isolator Module

Removal

NOTE:
- Ensure that both ground connectors are connected to the rear backlite once any work has been carried out in this area as there is a risk that the rear backlite could shatter.
- Ensure that both ground connectors are connected to the rear backlite once any work has been carried out in this area as there is a risk that the rear backlite could shatter.

1. Remove the C-pillar trim panel.

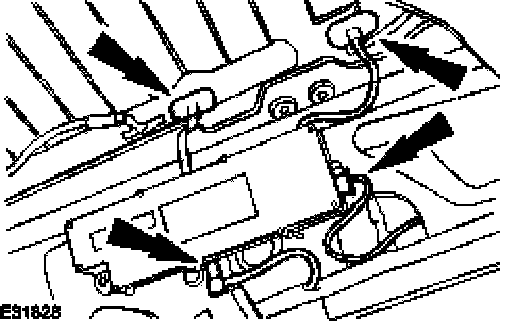

2. Disconnect the antenna isolator module electrical connectors.

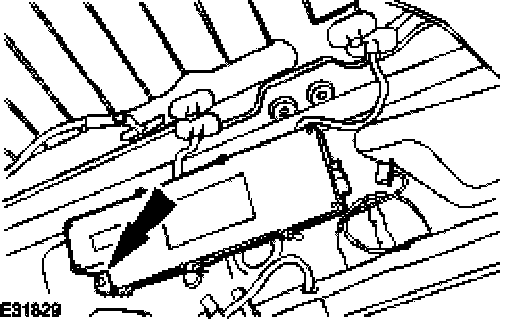

3. Remove the antenna isolator module.
- Remove the retaining screw.

Installation
1. To install, reverse the removal procedure.
