Variable Induction Control Valve: Service and Repair

Intake Manifold Tuning (IMT) Valve LH

Removal
1. Remove the intake manifold.

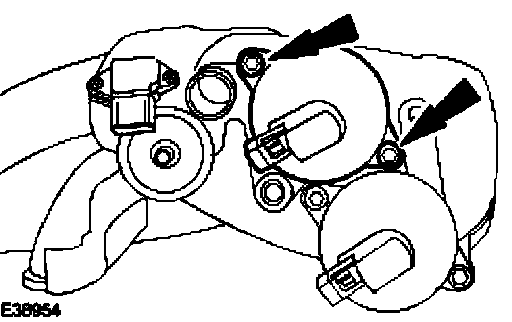

2. Remove the intake manifold tuning (IMT) valve.

Installation






1. To install, reverse the removal procedure.
- Tighten to 10 Nm.
