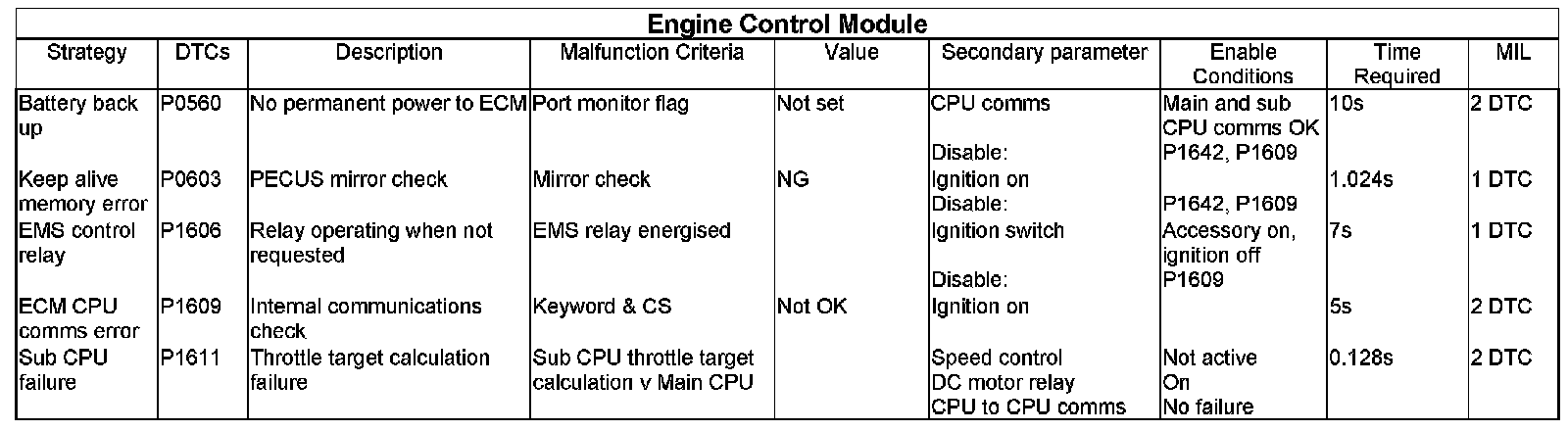

ECM Keep Alive Memory Monitor - P0603

ECM keep alive memory monitor - P0603
Every data value stored in the EEPROM is duplicated in a 'mirror' EEPROM location. If all the data values and their mirrors match, a normal judgment is made. If any of the EEPROM data values differ from the value stored in their mirror location then a failure judgement is made and P0603 is logged.
