VIN Range: G00442->G45703

Electronic Engine Controls - VIN Range: G00442->G45703

Inspection and Verification
1. Verify the customer concern.
2. Confirm which, if any, warning lights and/or messages were displayed on the instrument cluster.

NOTE: If any warning lights and/or messages were displayed when the fault occurred, refer to the driver information table for diagnostic trouble codes (DTCs) associated with the display, then to the DTC index table for possible sources and actions. Some warnings will appear to clear when the ignition is cycled. This is often because the warning has flagged as a result of one of the vehicle's on-board diagnostic routines having run to detect the fault. If the same routine is not run when the ignition is switched ON, the warning will not reflag until the routine does run. See the DTC summaries for drive cycle routines.

3. Visually inspect for obvious signs of mechanical or electrical damage.

Visual Inspection Chart

Mechanical Electrical
Engine oil level Fuses
Cooling system coolant level Wiring harness
Fuel level Electrical connector(s)
Fuel contamination/grade/quality Sensor(s)
Throttle body Engine control module (ECM)
Poly-vee belt Transmission control module

1. Verify the following systems are working correctly:
- Air intake system
- Cooling system
- Charging system
- Fuel charging system
- Ignition system

2. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
3. Where the Jaguar approved diagnostic system is available, complete the S93 report before clearing any or all fault codes from the vehicle.

NOTE: If a DTC cannot be cleared, then there is a permanent fault present that flags again as soon as it is cleared. (The exception to this is P1260, which will only clear following an ignition OFF/ON cycle after rectification).

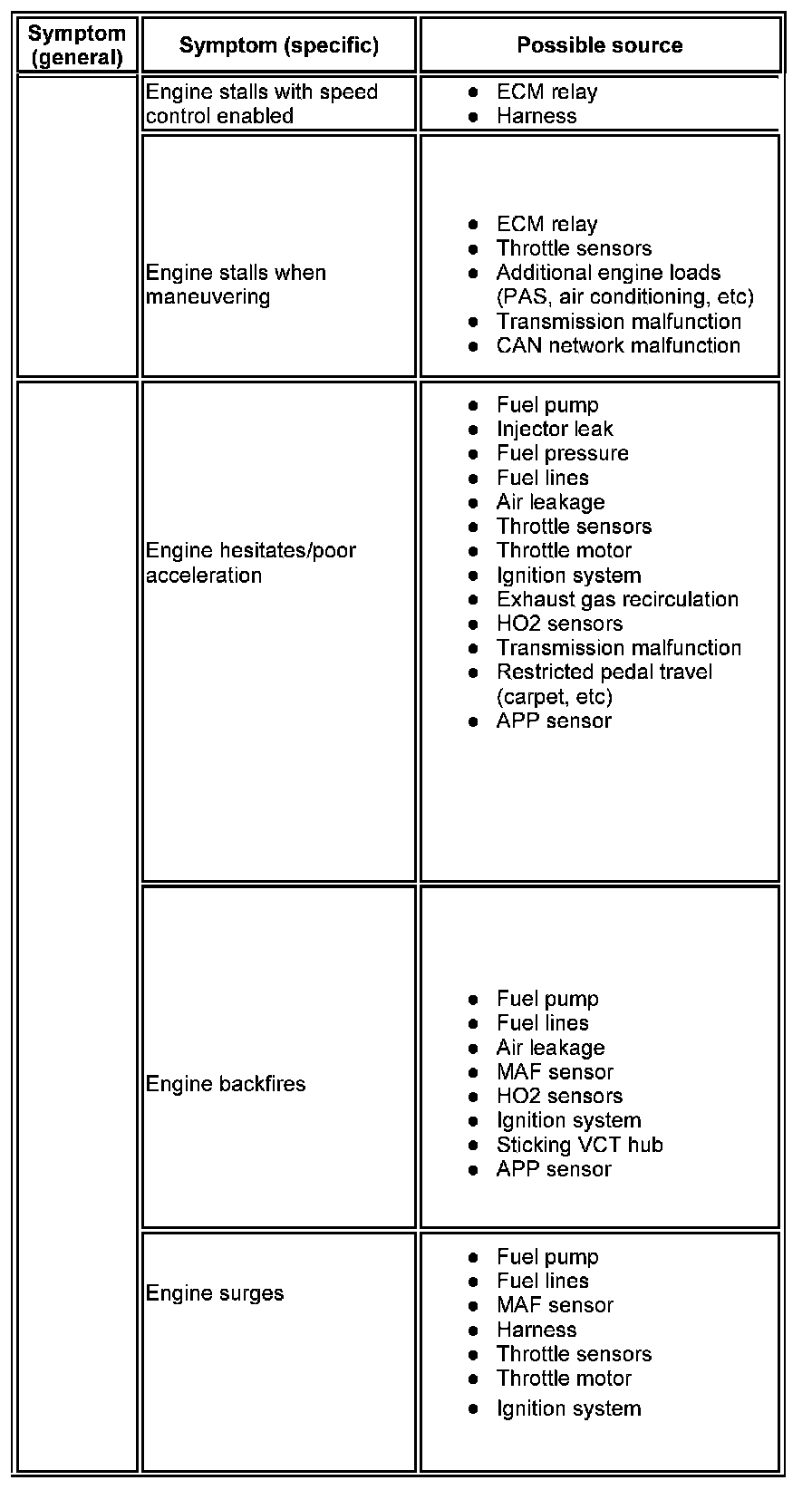

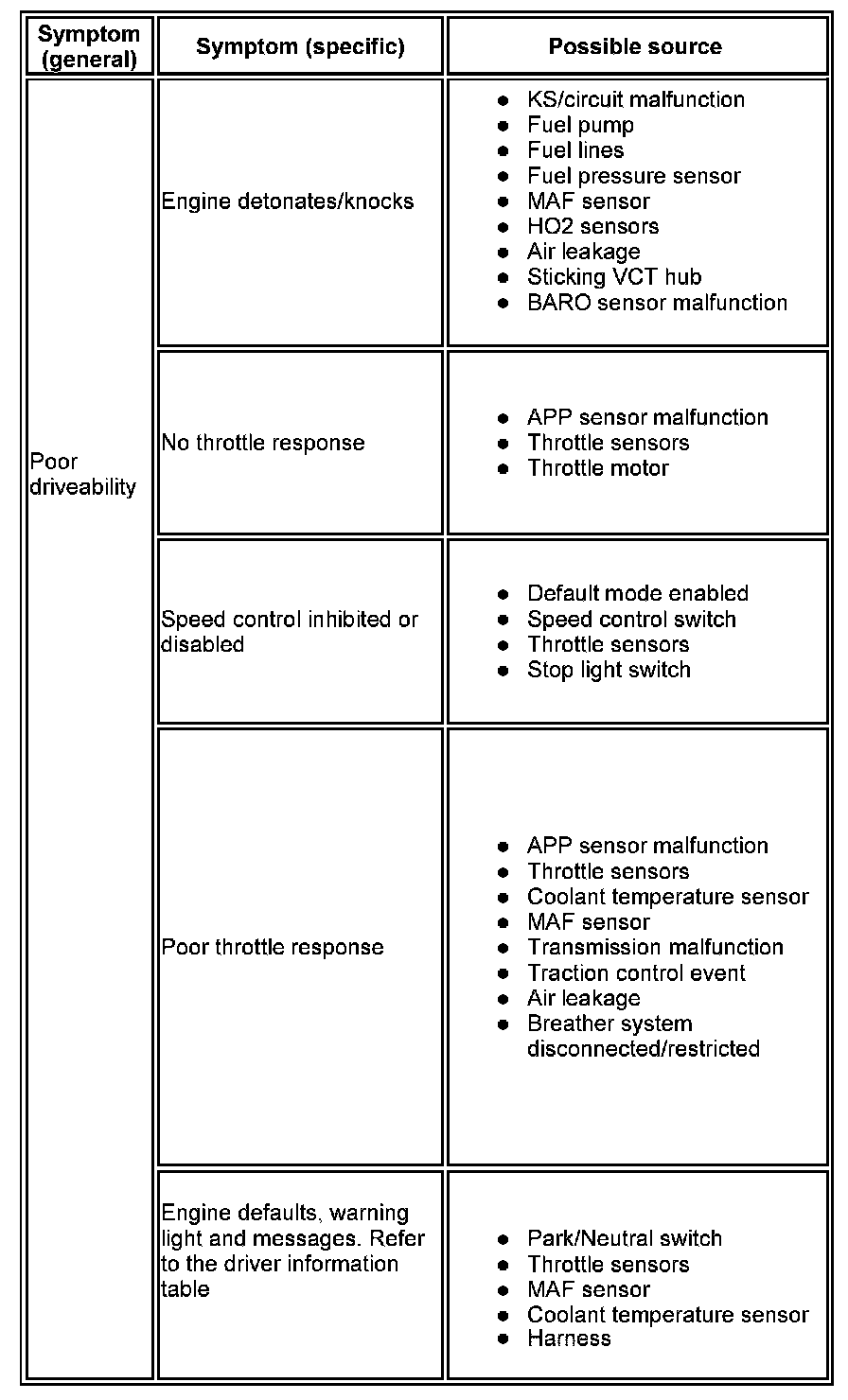

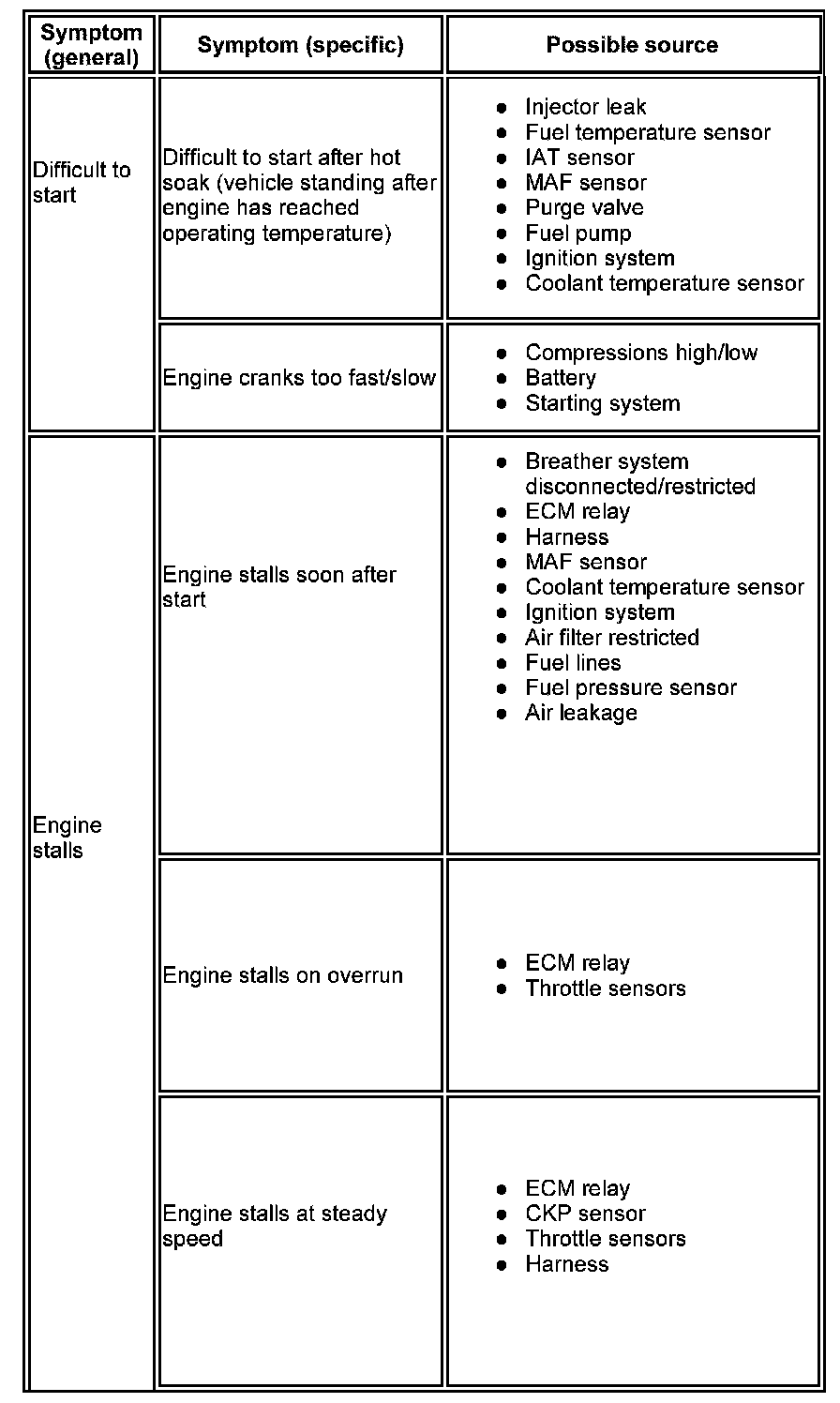

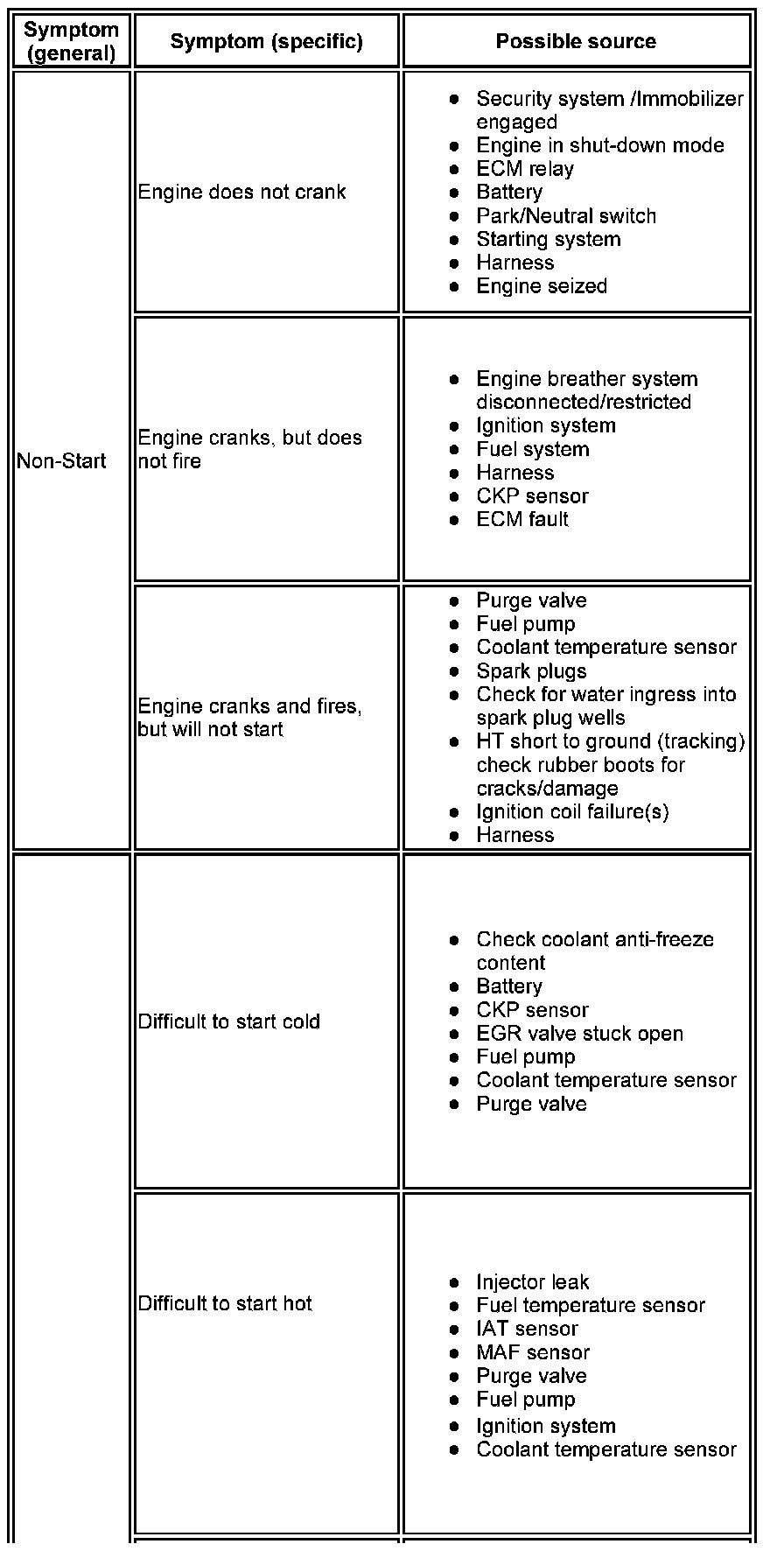

4. If the cause is not visually evident and the Jaguar approved diagnostic system is not available, use a fault code reader to retrieve the fault codes before proceeding to the DTC index, or the symptom chart if no DTCs are set.
5. Using the Jaguar approved diagnostic system where available, and a scan tool where not, check the freeze frame data for information on the conditions applicable when the fault was flagged. The format of this will vary, depending on the tool used, but can provide information useful to the technician in diagnosing the fault.

CAUTION: When probing connectors to take measurements in the course of the pinpoint tests, use the adaptor kit, part number 3548-1358-00.

NOTE:
- When performing electrical voltage or resistance tests, always use a digital multimeter (DMM) accurate to 3 decimal places, and with an up-to-date calibration certificate. When testing resistance, always take the resistance of the DMM leads into account.
- Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

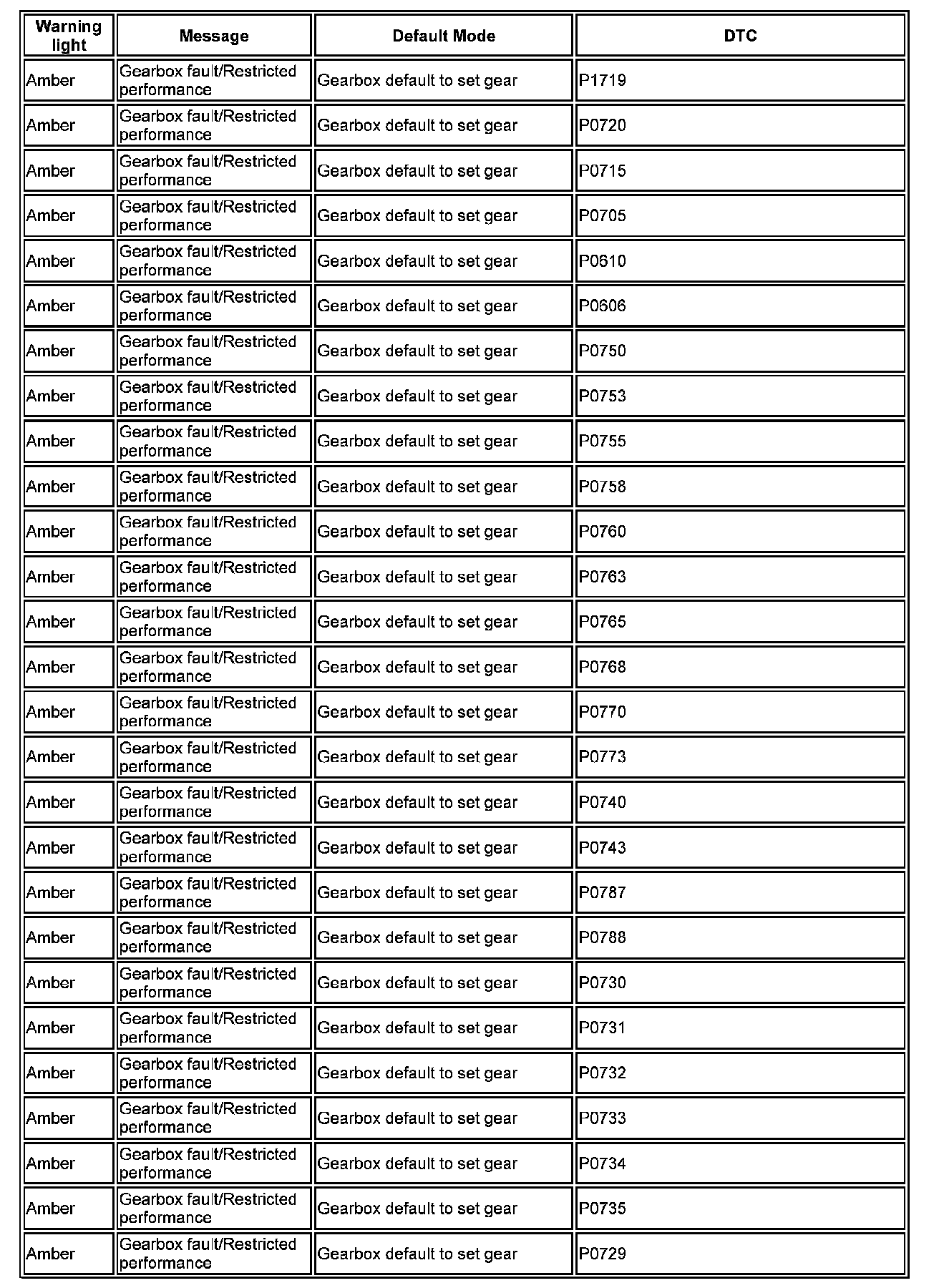

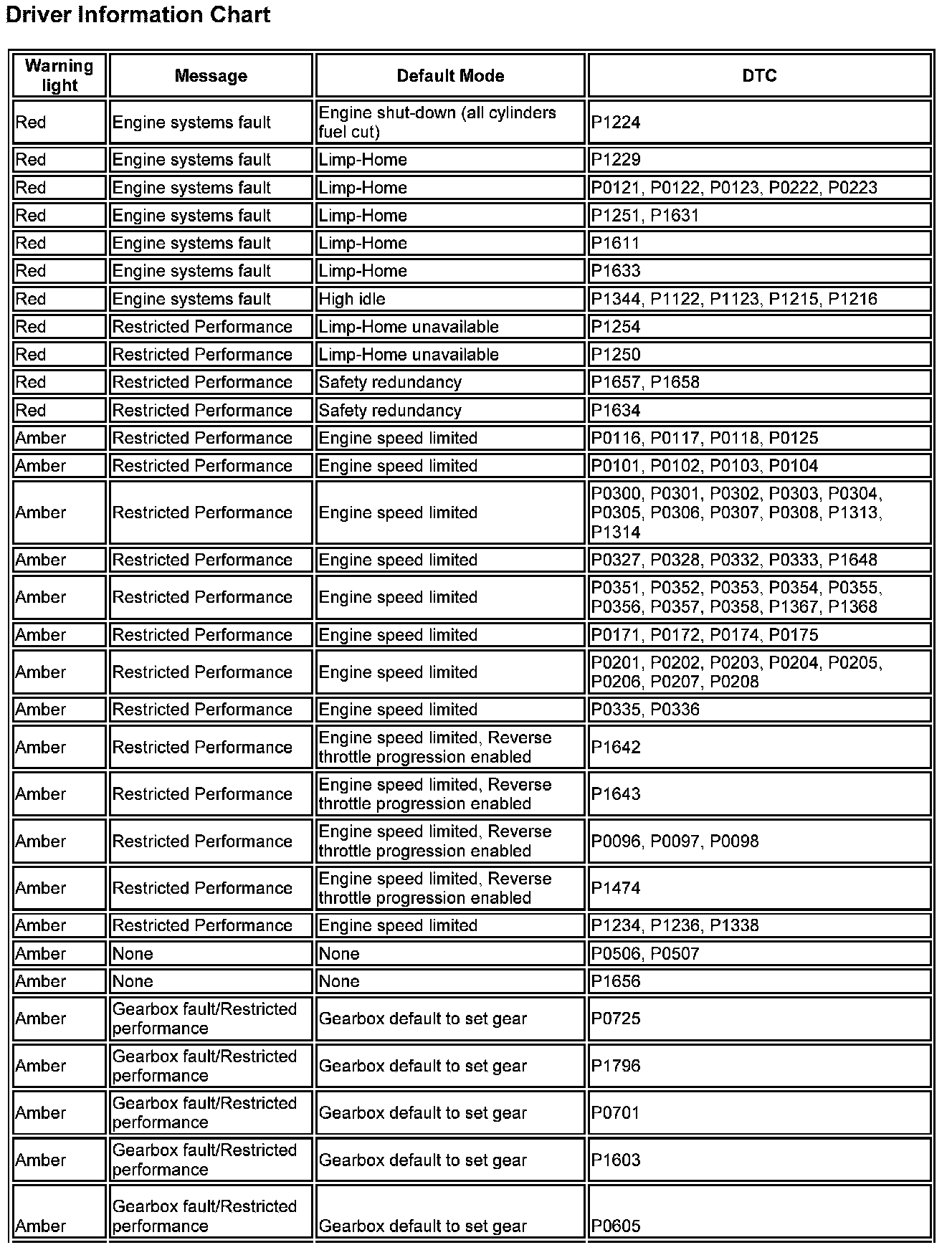

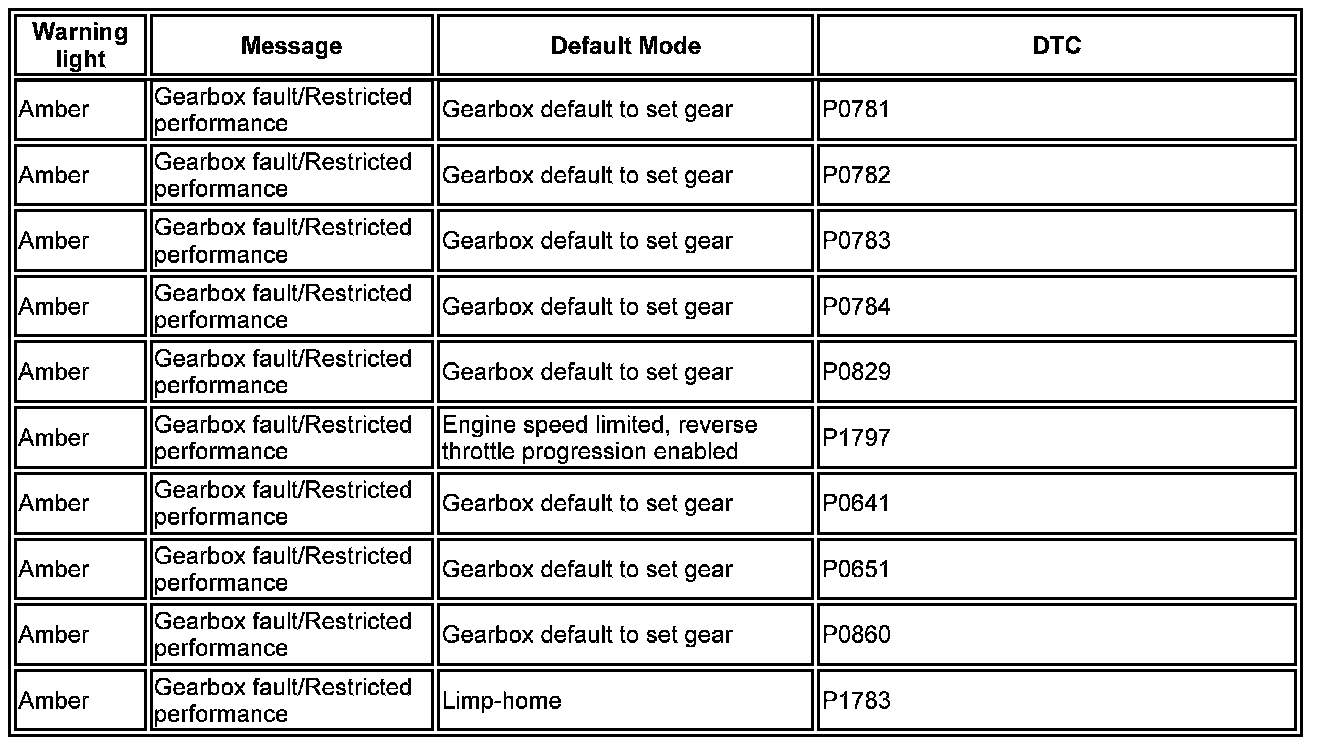

Driver Information Chart













Default mode Definitions

LIMP-HOME MODE
- Throttle motor off
- Throttle motor relay off
- Throttle motor circuit off
- Fuel intervention
- Speed control inhibited

LIMP-HOME UNAVAILABLE
- Power limitation
- Vehicle speed limited to 120 kph
- Reverse throttle progression enabled
- Speed control inhibited

REVERSE THROTTLE PROGRESSION
- Throttle opening limited to maximum 30%

NOTE: The throttle operation uses the same map as for reverse gear.

ENGINE SPEED LIMITED
- Engine runs normally, up to 3000 rpm
- Engine speed restricted to 3000 rpm maximum, by fuel cut-off

HIGH IDLE
- Throttle valve kept in fixed position by motor
- Speed control inhibited

SAFETY REDUNDANCY
- Power limitation
- Vehicle speed limited to 120 kph
- Reverse throttle progression enabled
- Speed control inhibited
