Catalyst Monitor Sensor

Catalyst Monitor Sensor

Removal
1. Raise and support the vehicle.

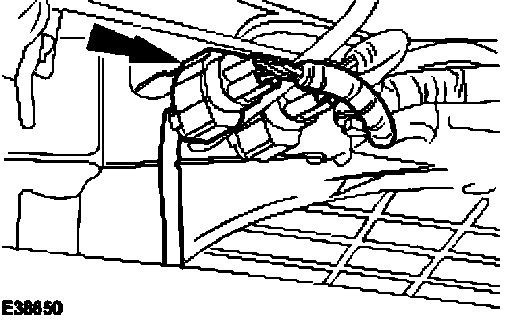

2. Detach the catalyst monitor sensor electrical connector.

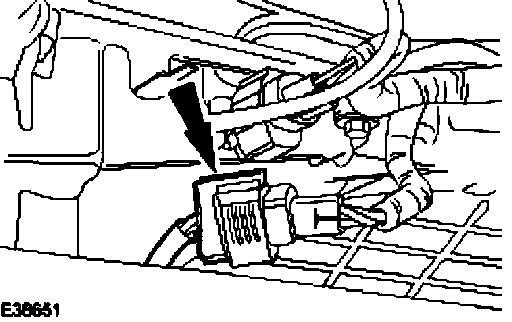

3. Disconnect the catalyst monitor sensor electrical connector.

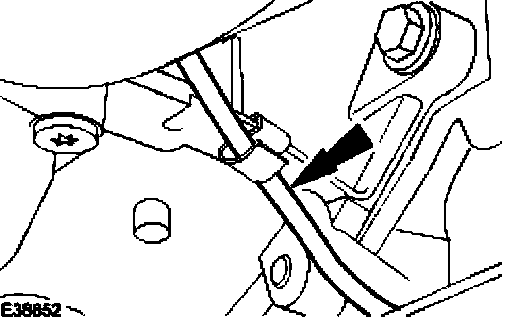

4. Detach the catalyst monitor sensor wiring harness from the retaining clip on the automatic transmission.

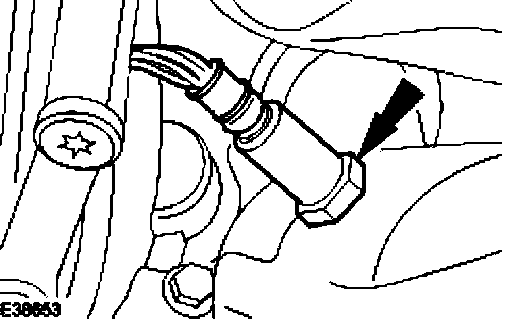

5. CAUTION: Do not twist the catalyst monitor sensor wiring harness on removal. Failure to follow this instruction may result in damage to the component.

Remove the catalyst monitor sensor.

Installation







1. CAUTION: Do not twist the catalyst monitor sensor wiring harness on installation. Failure to follow this instruction may result in damage to the component.

To install, reverse the removal procedure.
- Tighten to 40 Nm.
