Jaguar
>>
2004
>>
XJ (X350) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
Climate Control Module
Climate Control Module
Climate Control Module

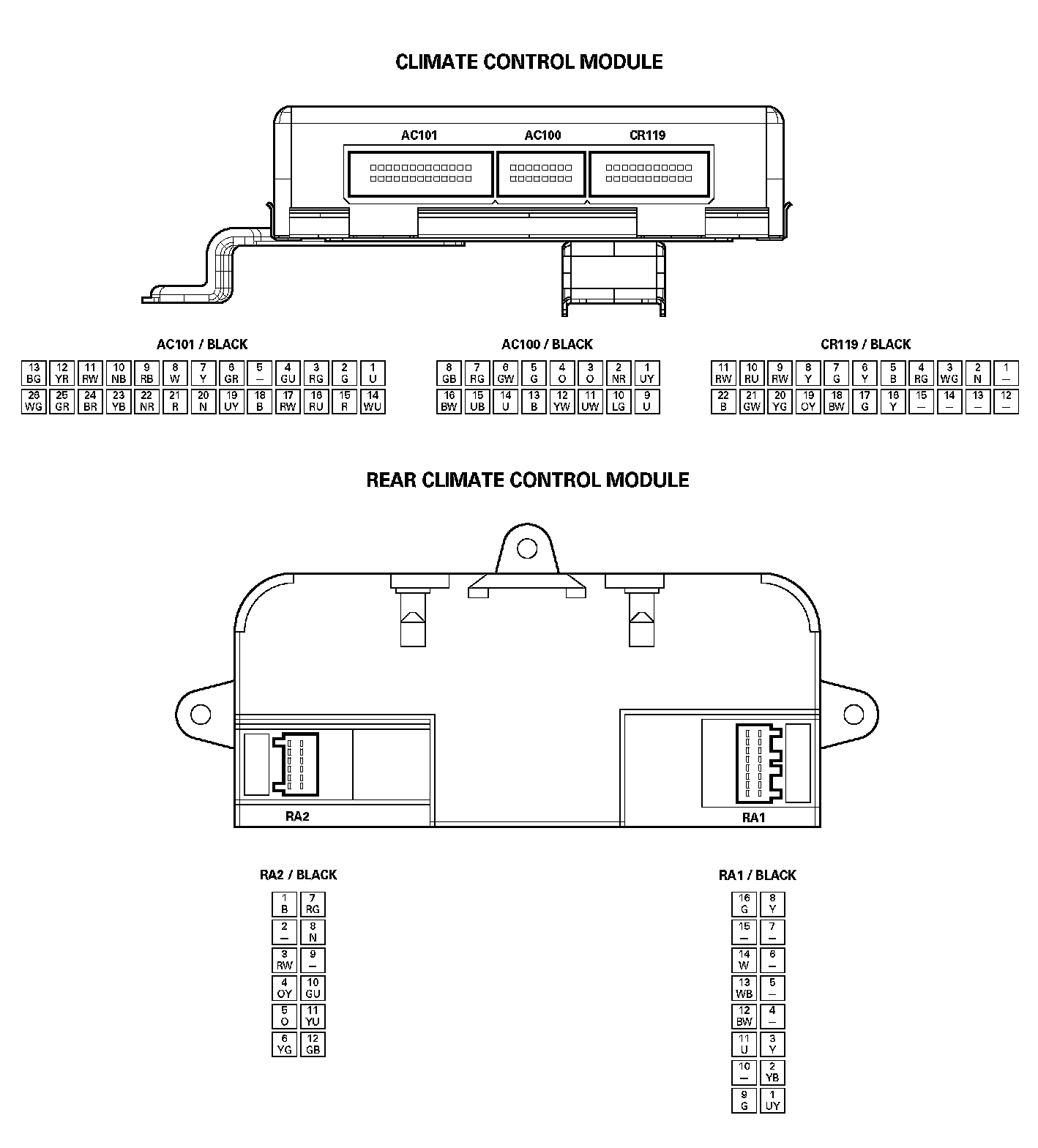

Control Module Pin Identification:
