VIN Range: G00442->G45170
Parking Brake - VIN Range: G00442->G45170Inspection and Verification
1. Verify the customer concern.

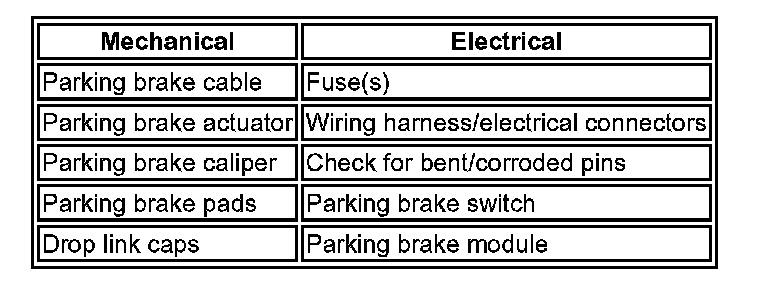

2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident and the Jaguar approved diagnostic system is not available, use a suitable code reader to retrieve any fault codes before proceeding to the Diagnostic Trouble Code (DTC) Index Chart (or the Symptom Chart if no DTCs are set), for actions to take.
