Inspection and Verification-Climate Seat Control System

Seats

Inspection and Verification

1. Verify the customer concern.
2. Visually inspect for obvious signs of electrical damage.

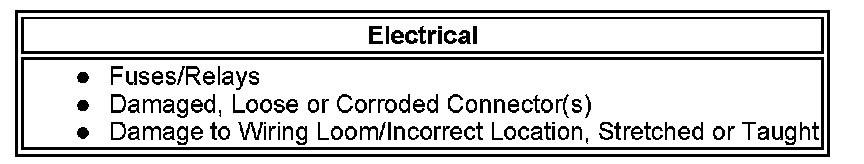

Visual Inspection Chart







1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
2. If the cause is not visually evident, verify the symptom and refer to the Jaguar Approved Diagnostic System.
