SCP and CAN Network Messages

SCP and CAN Network Messages

This contains a listing of SCP and CAN Network messages.

NOTE: Passive Anti-Theft System and Security System messages are not included.

The following acronyms and abbreviations are used:

A/C Air Conditioning
ABS Anti-Lock Braking
ASC Adaptive Speed Control
ASCM Adaptive Speed Control Module
ASM Air Suspension Module
AT CMD Commands for configuring and controlling telecommunication devices
AUDIO Audio Unit
CAL Calibrate
CAN Controller Area Network
CATS Adaptive Damping
CCM Climate Control Module
CID CAN Identifier
CPM Cellular Phone Module
D2B D2B Network
D2B Fiber Optic Network
D2B OPC Instructions for translating and routing data for D2B use
DDCM Driver Door Control module
DDM Driver Door Module
DSC Dynamic Stability Control
DSCM Dynamic Stability Control Module
DSM Driver Seat Module
DTC Diagnostic Trouble Code
ECM Engine Control Module
ECM Engine Control Module
FEM Front Electronic Module
Gateway Device that converts messages between different types of networks
IC Instrument Cluster
JGM j-Gate Module
LED Light Emitting Diode
MIL Malfunction Indicator Lamp
MSG Message
NCM Navigation Control Module
OBD On Board Diagnostics (OBD II, EOBD)
ODO Odometer
PBM Parking Brake Module
PTT Push to Talk
RCCM Rear Climate Control Module
REM Rear Electronic Module
RMM Rear Memory Module
RPM Revolutions Per Minute
SCLM Steering Column Lock Module
SCP Standard Corporate Protocol Network
SMS Short Message Service for Mobile Communications
STM Switch to Test Mode
TCM Transmission Control Module
TCS Traction Control System
VAM Voice Activation Module
WDS Worldwide Diagnostic System

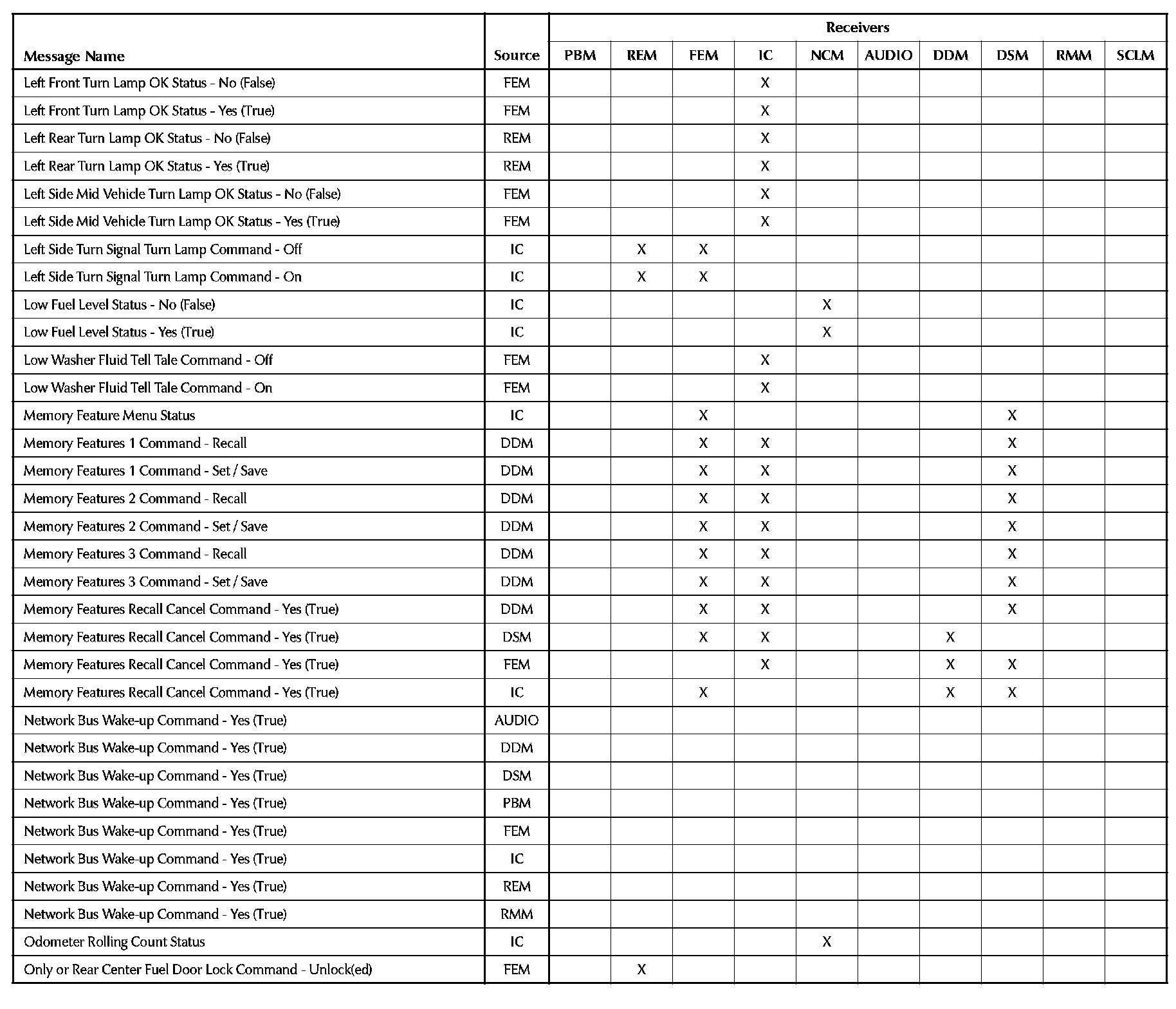

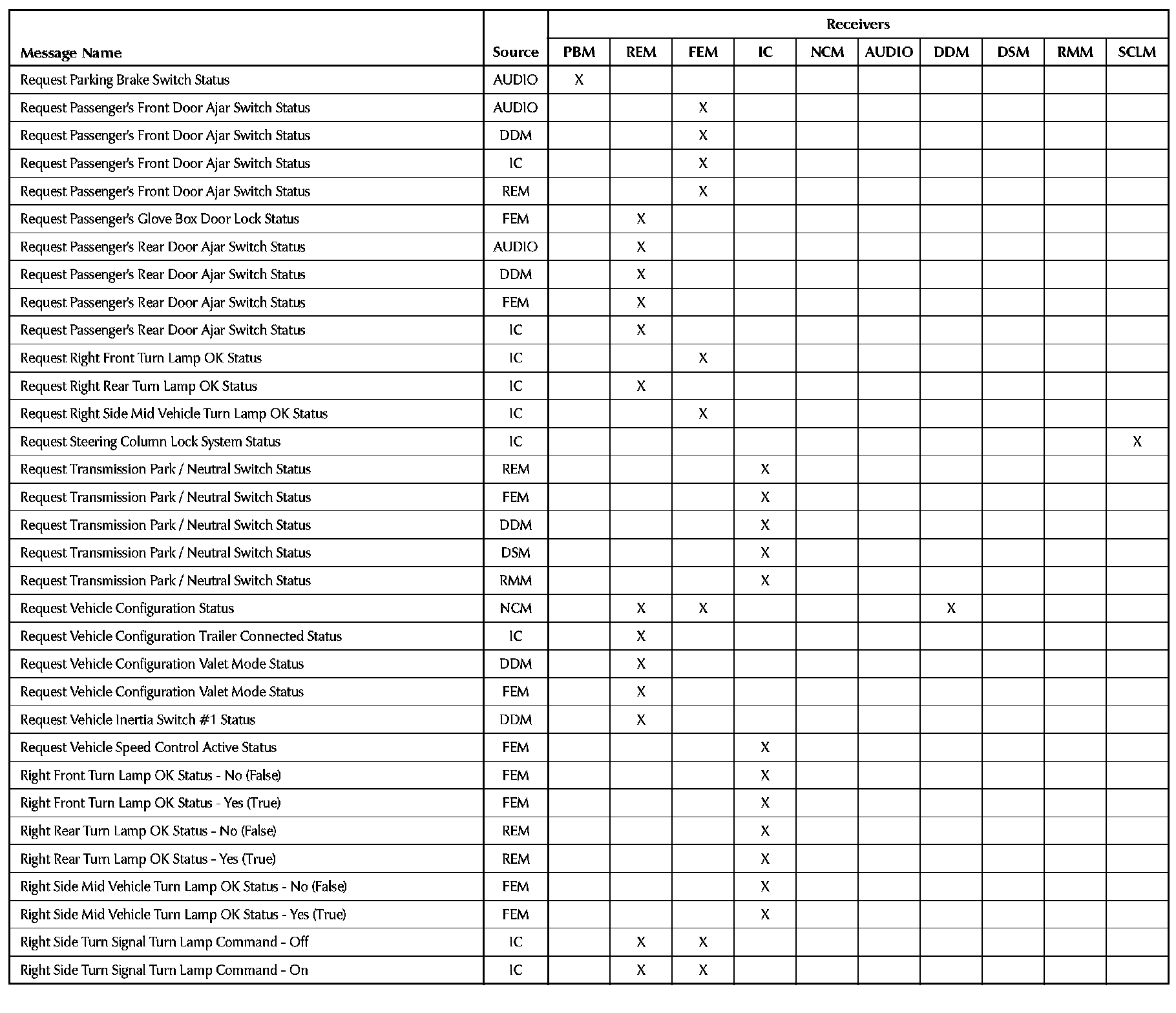

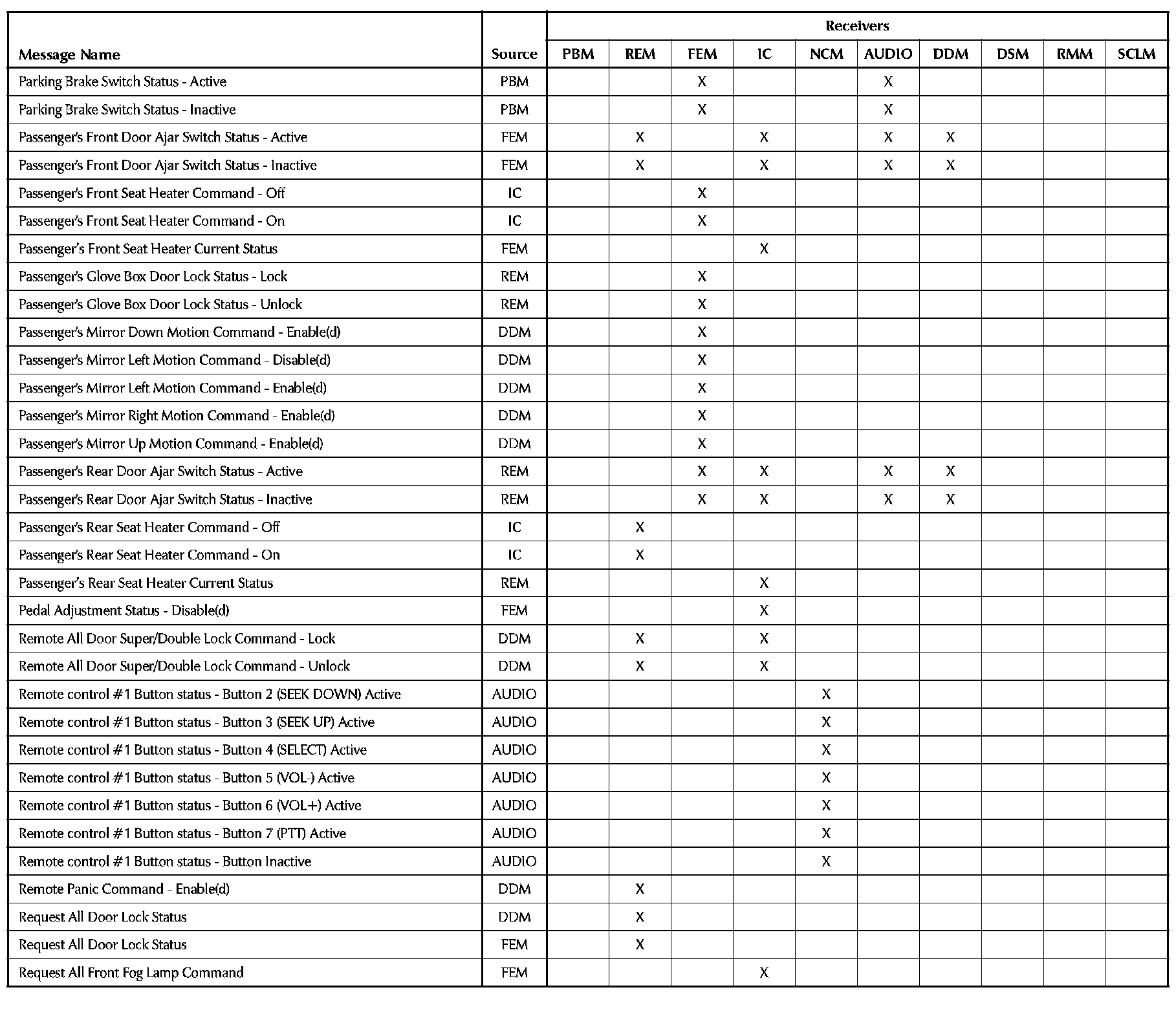

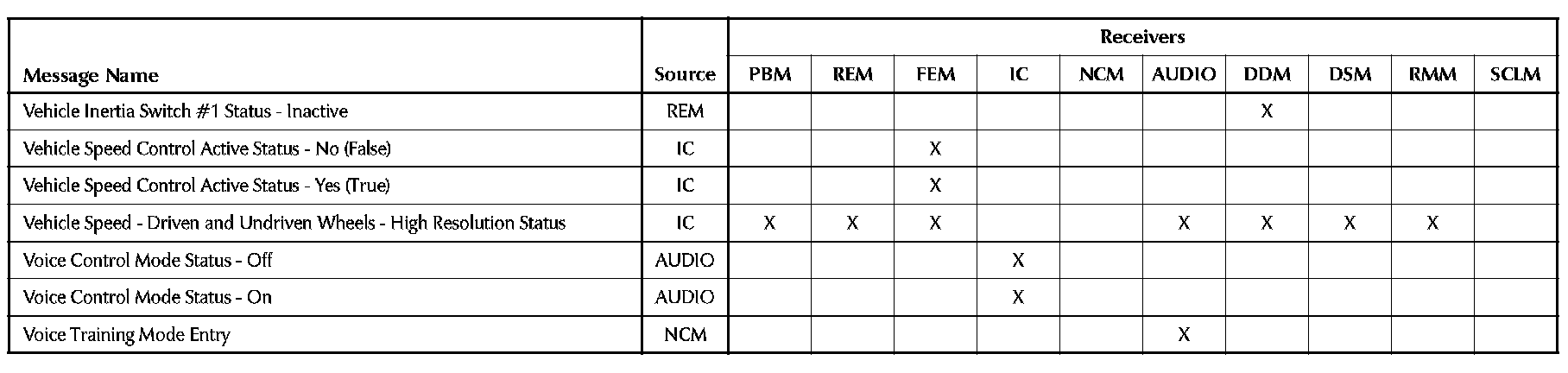

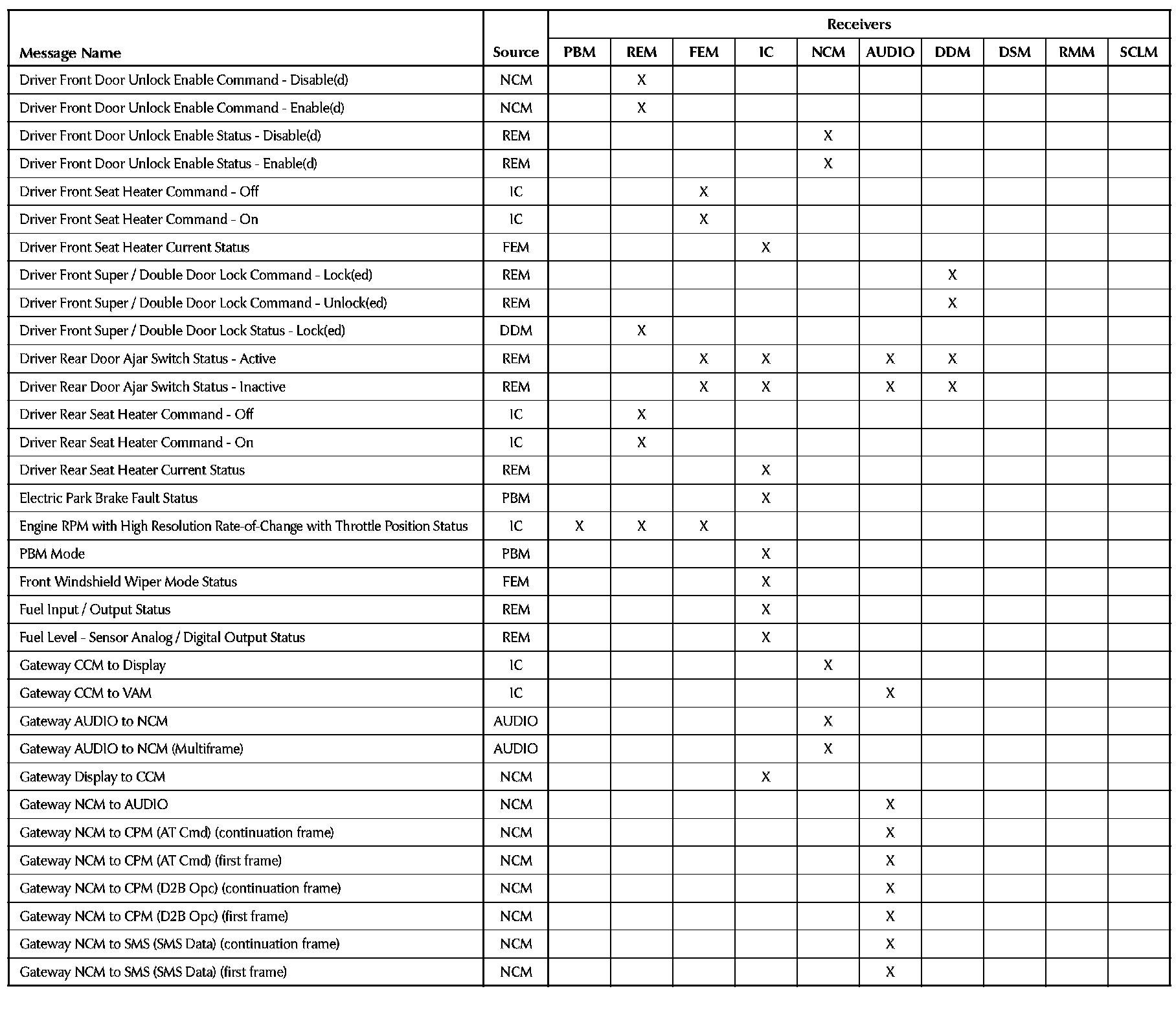

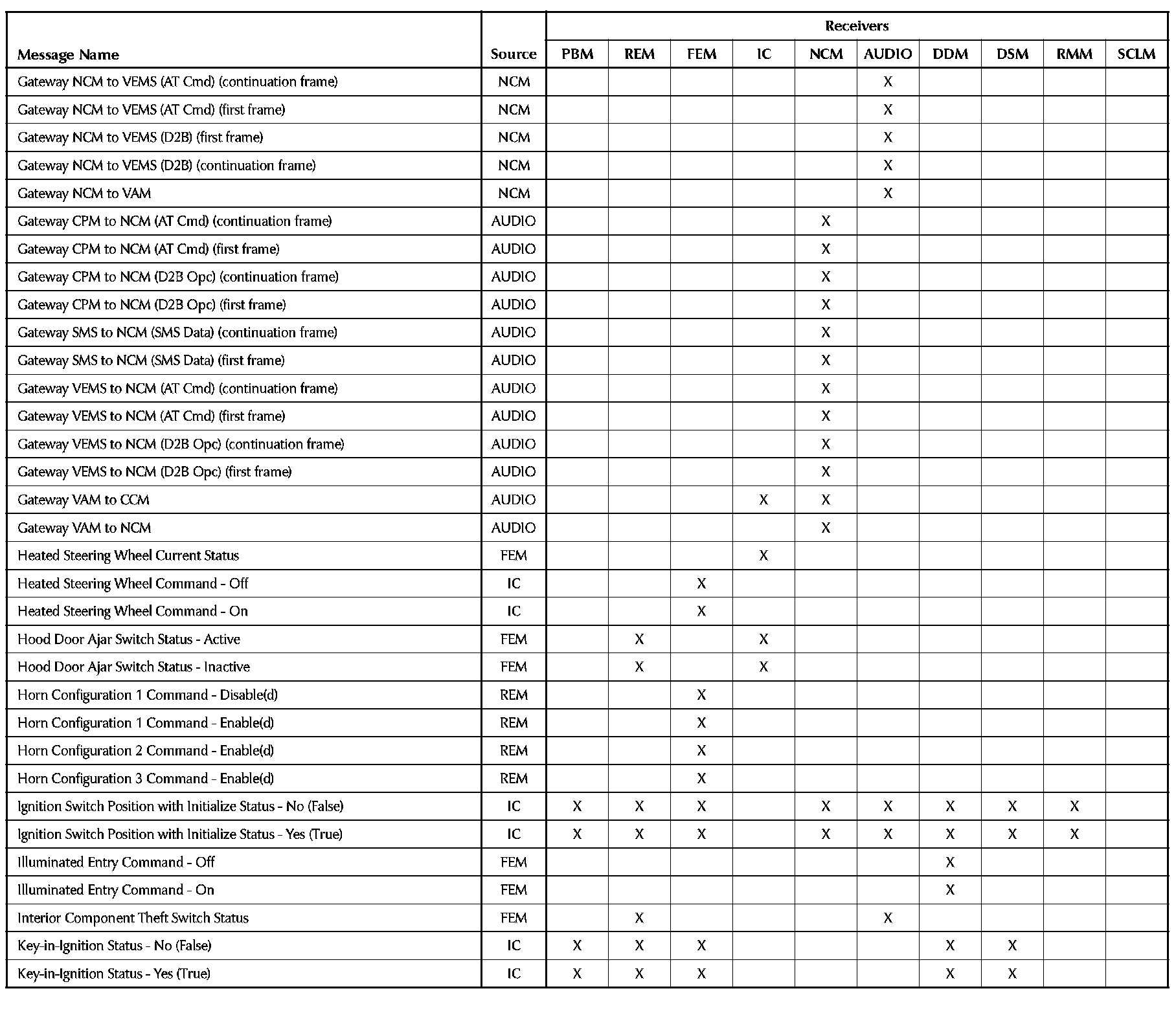

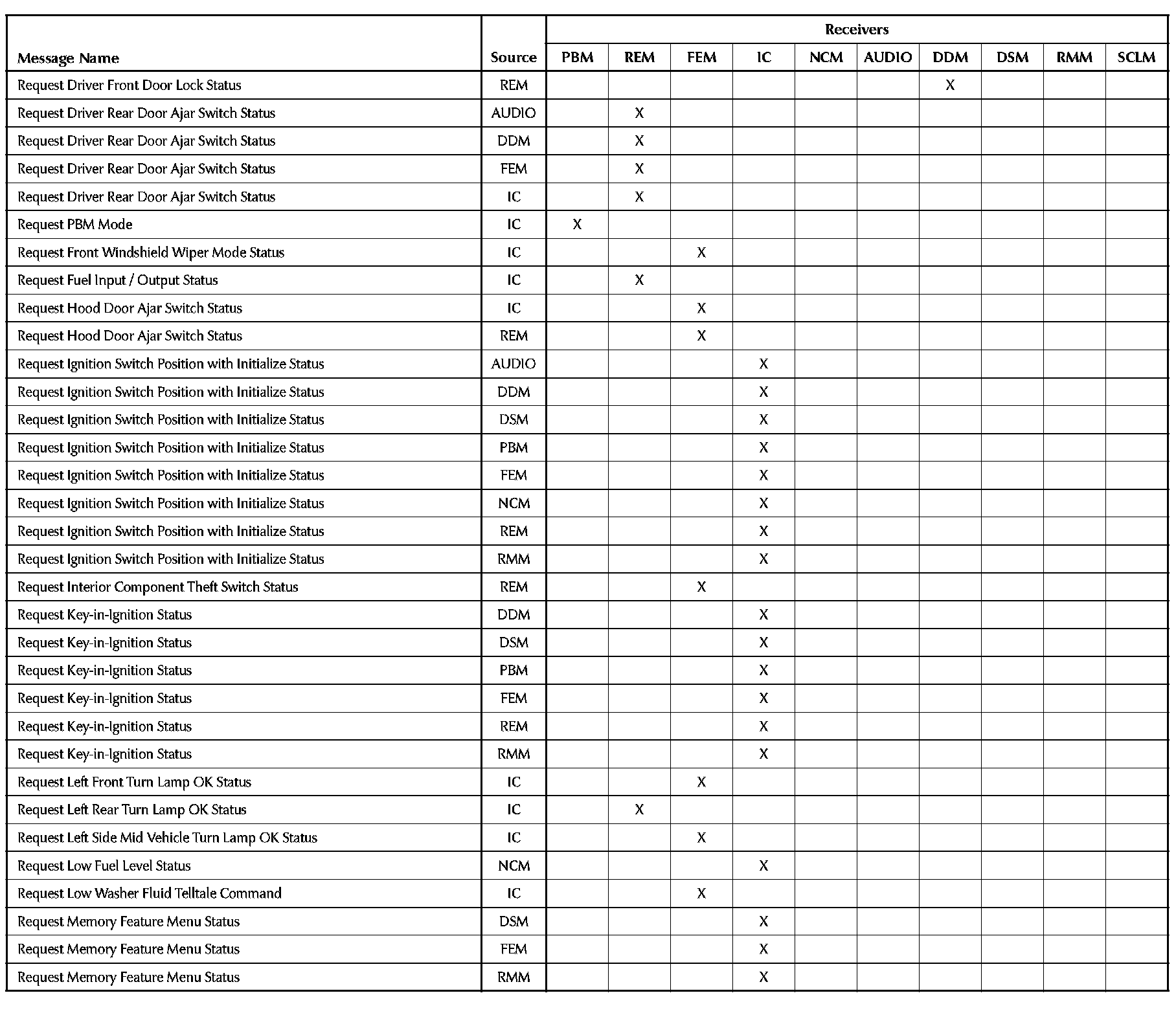

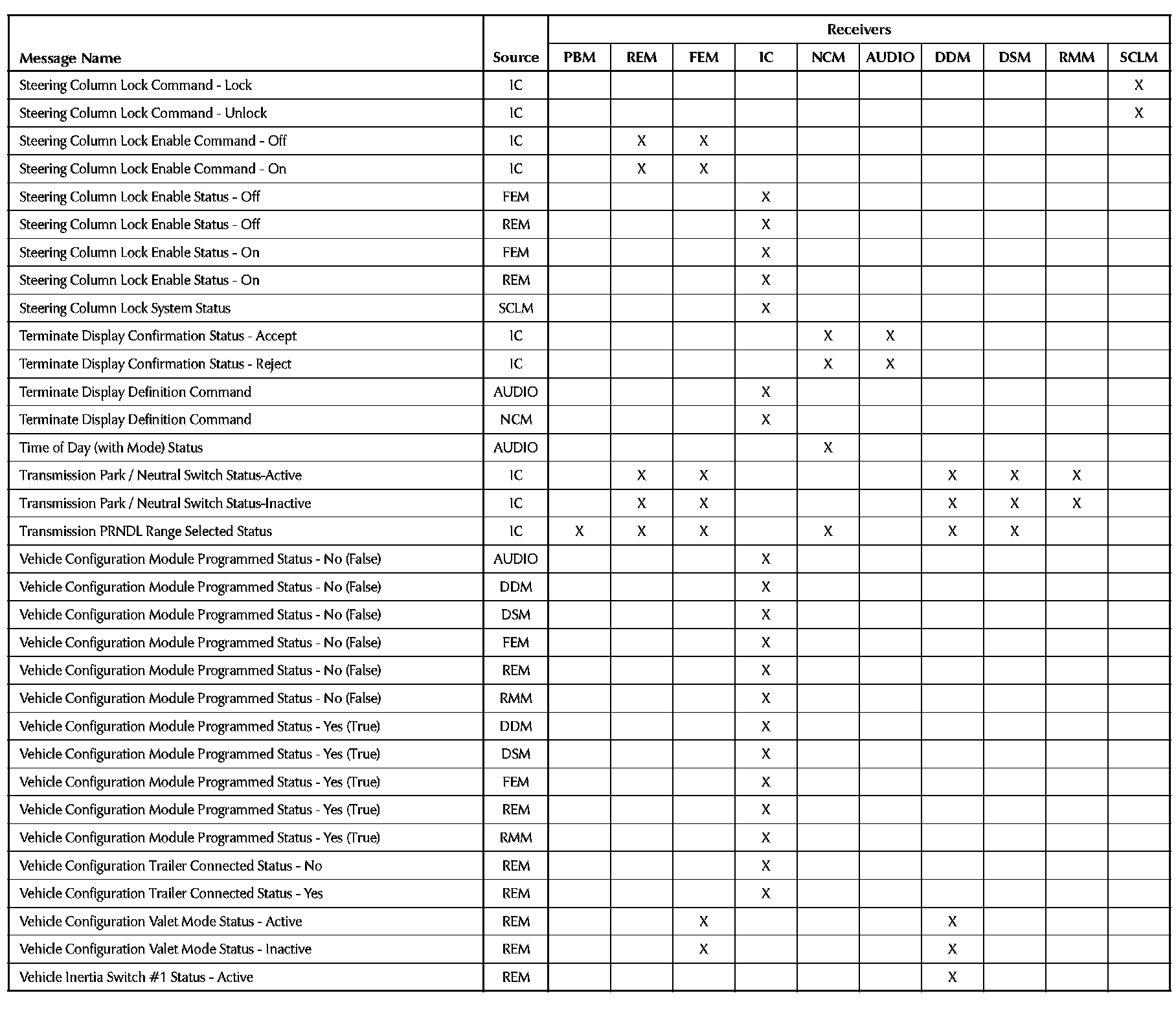

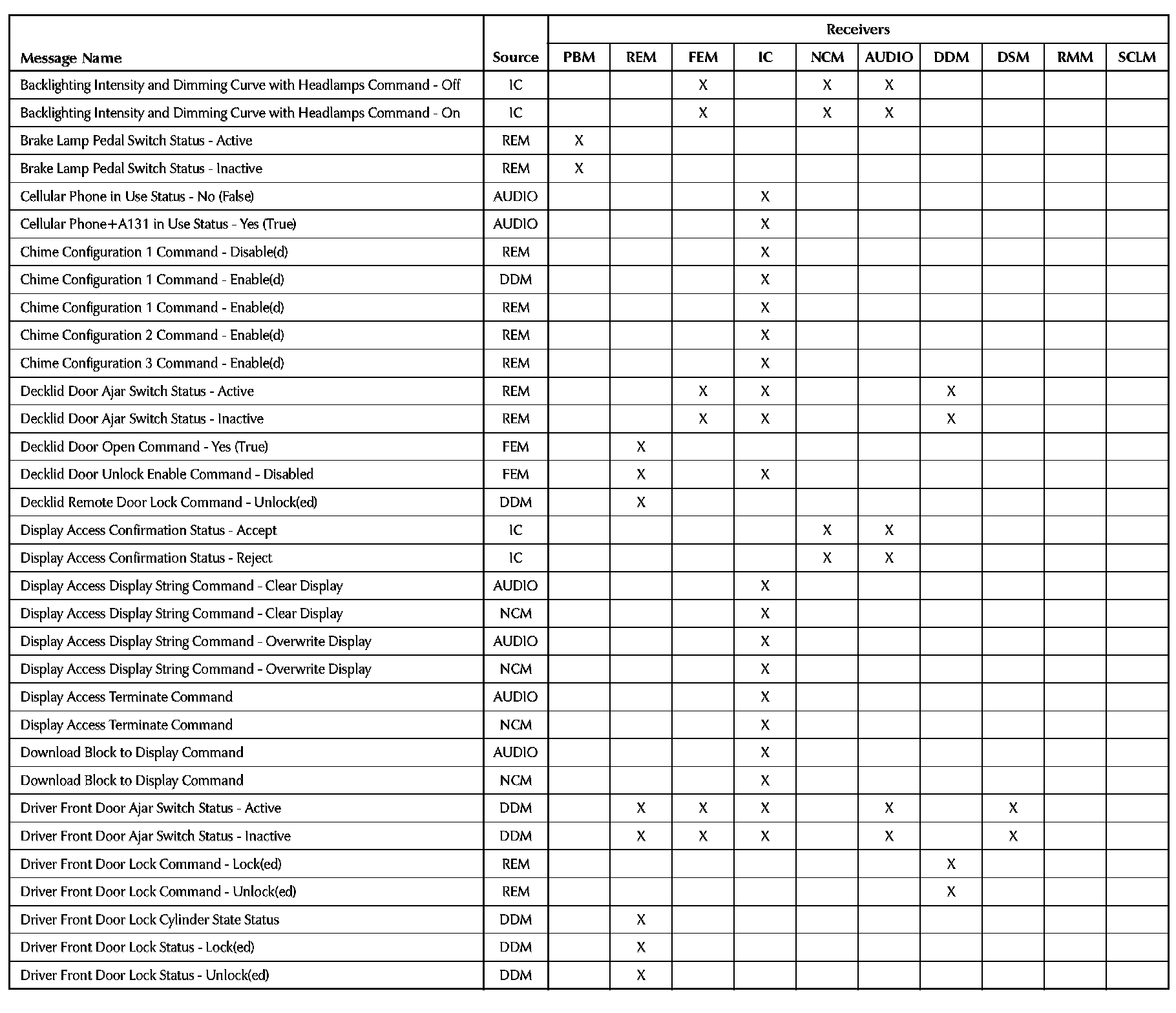

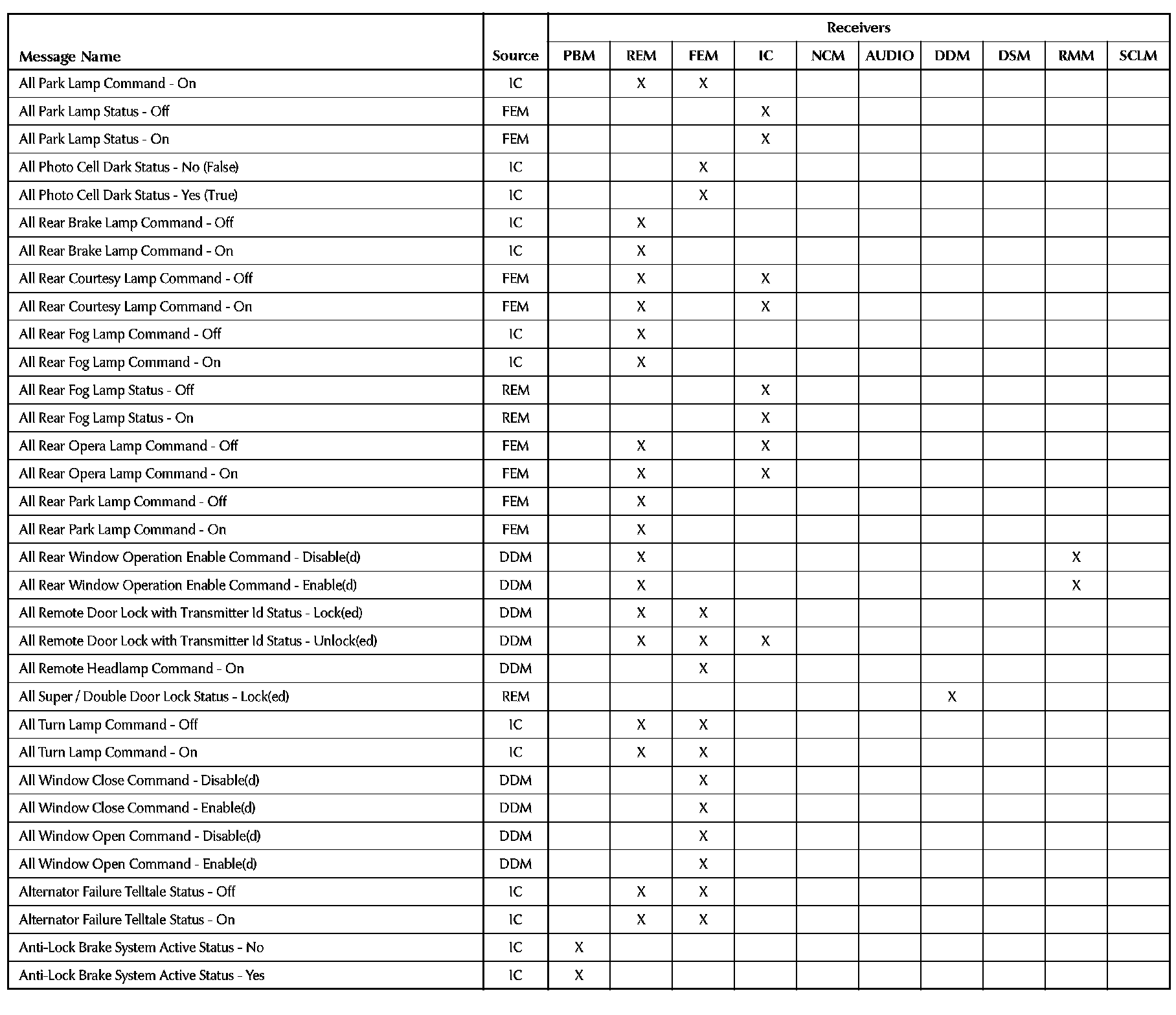

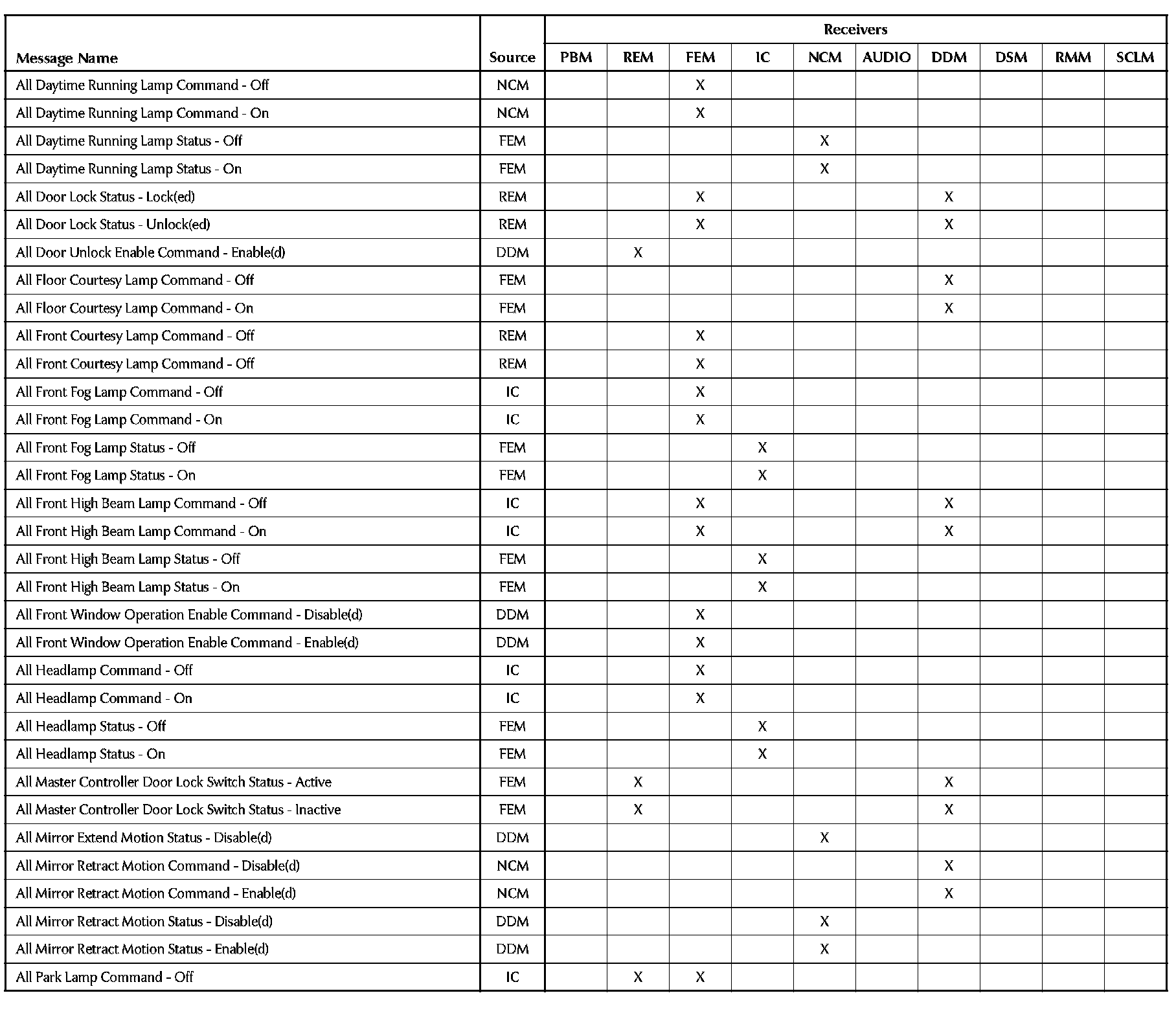

SCP Message Matrix

Al - Al:

Al - An:

Ba - Dr:

Dr - Ga:

Ga - Ke:

Le - On:

Pa - Re:

Re - Re:

Re - Re:

Re - Ri:

St - Ve:

Ve - Vo:

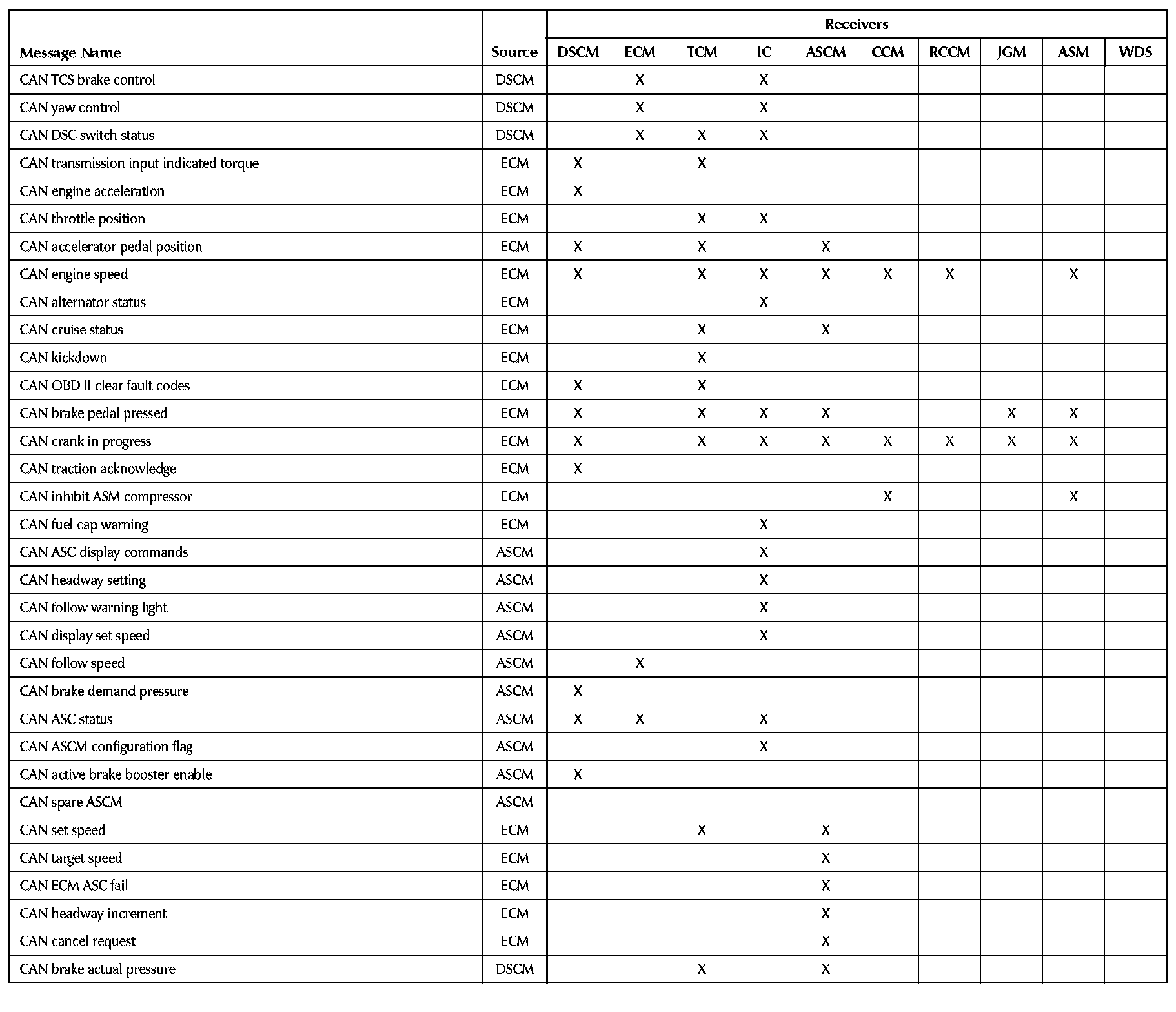

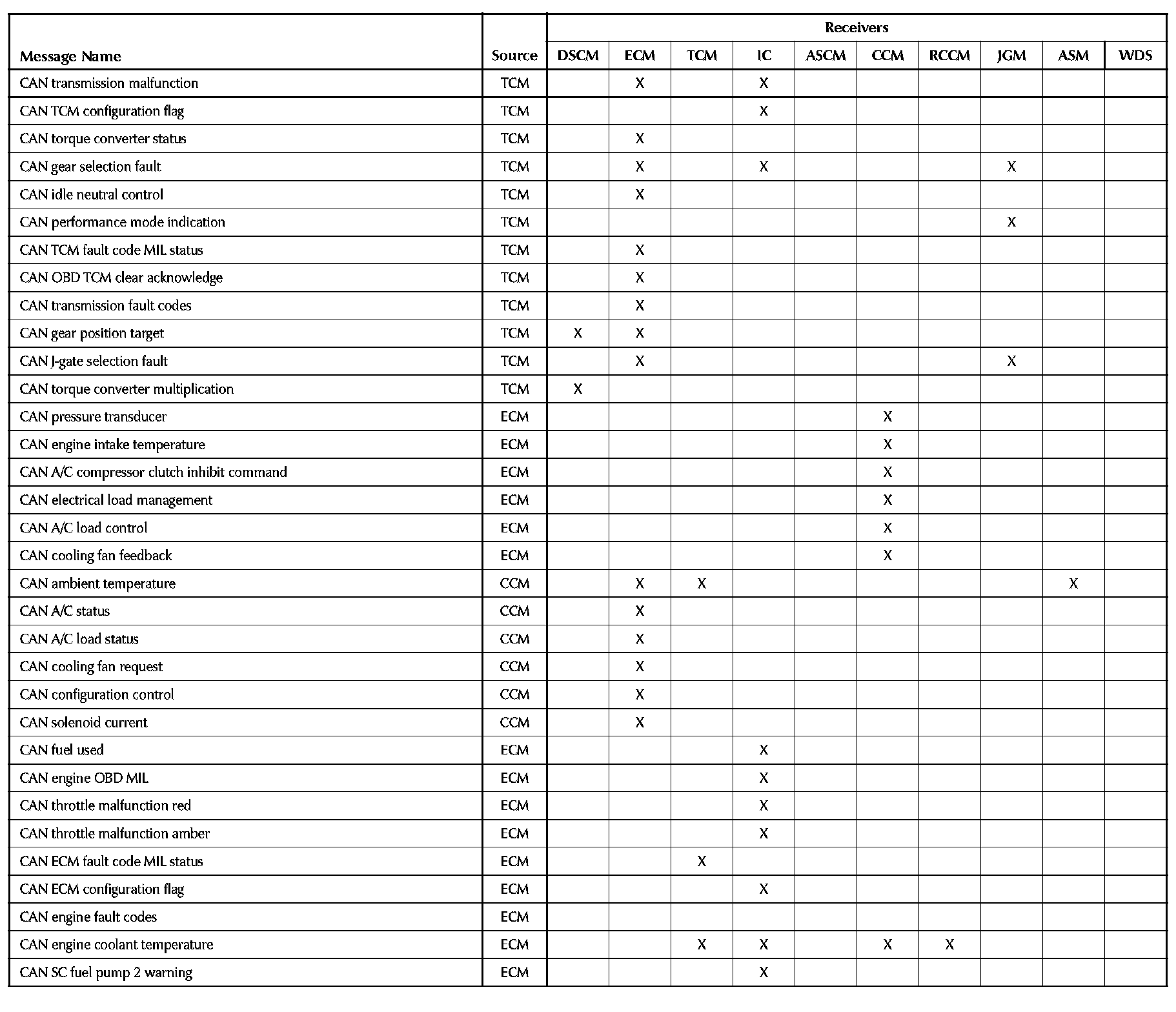

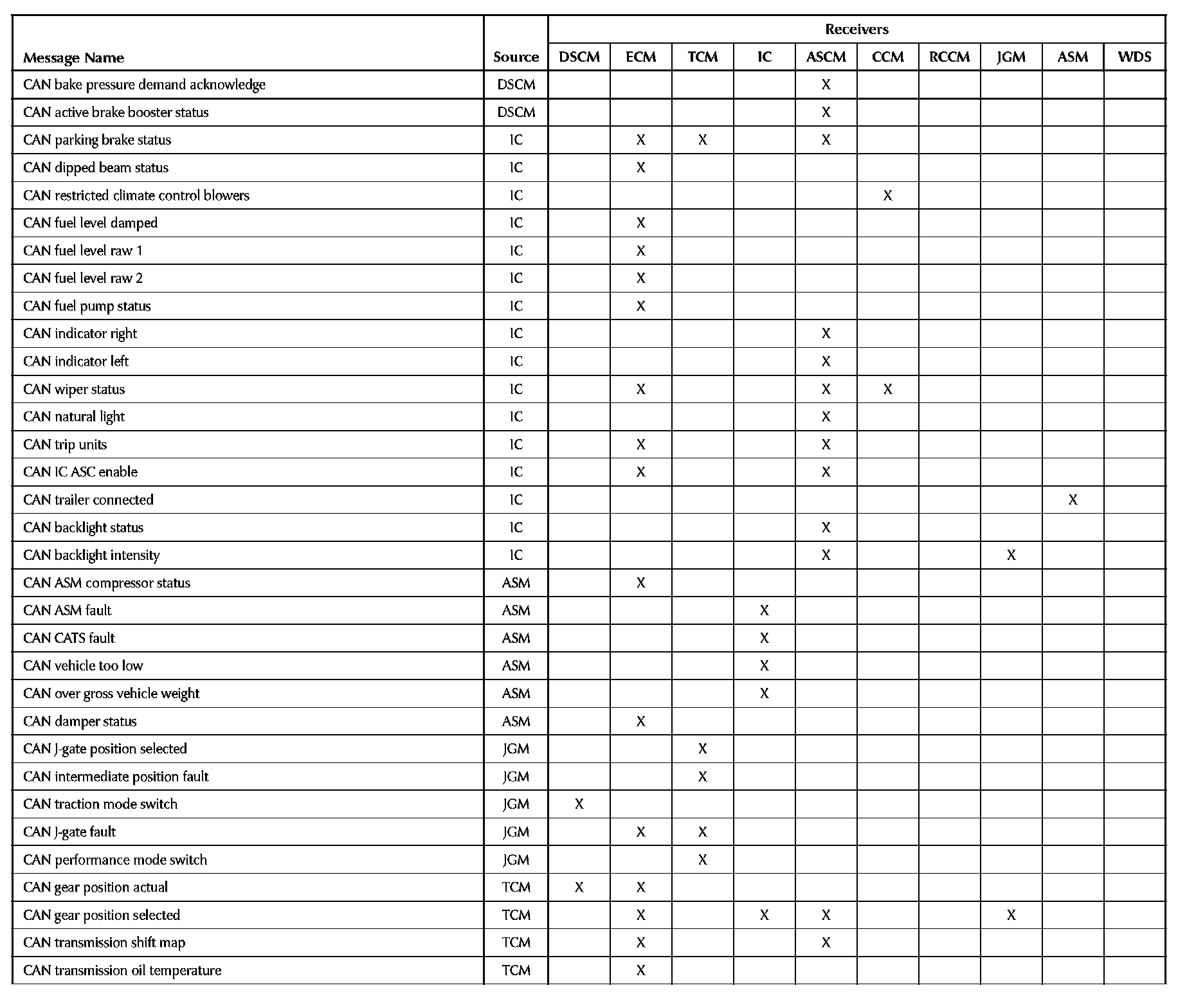

CAN Message Matrix

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:
