Luggage Compartment Lid Latch Actuator

Luggage Compartment Lid Latch Actuator

Removal







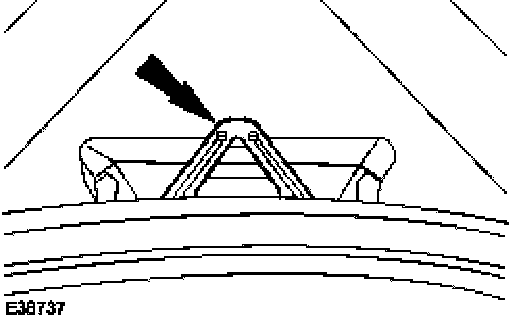

1. Release the warning triangle retaining clip.







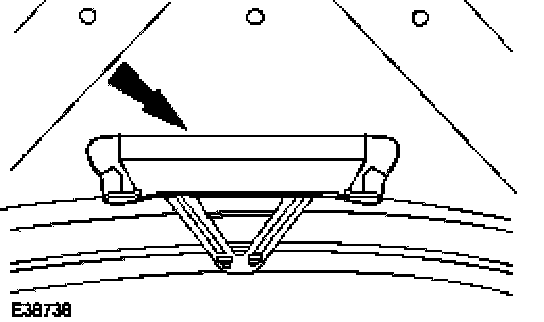

2. Remove the warning triangle.







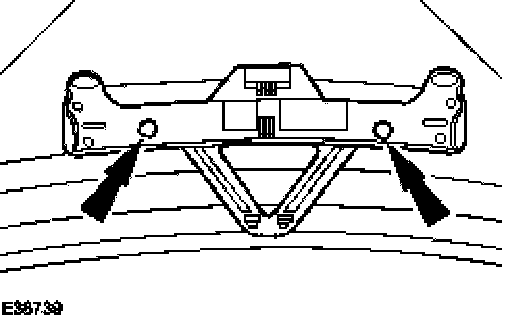

3. Remove the warning triangle retaining bracket.







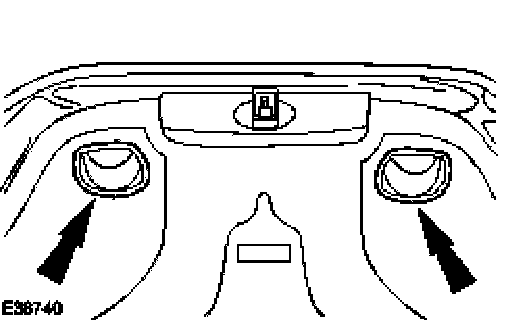

4. Remove the luggage compartment lid grab handles.

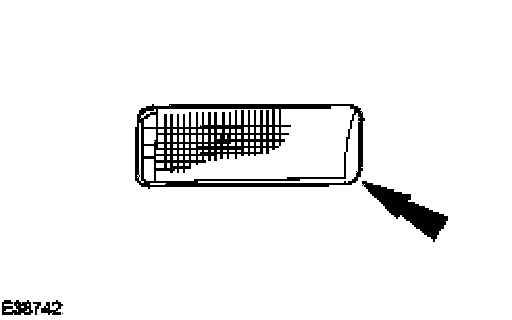

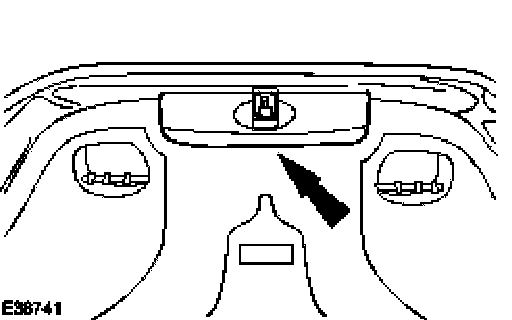

5. Remove the luggage compartment lid latch trim cover.







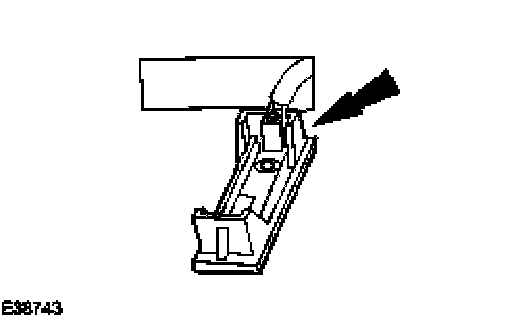

6. Detach the luggage compartment lid courtesy lamp.







7. Remove the luggage compartment lid courtesy lamp.
- Disconnect the luggage compartment lid courtesy lamp electrical connector.

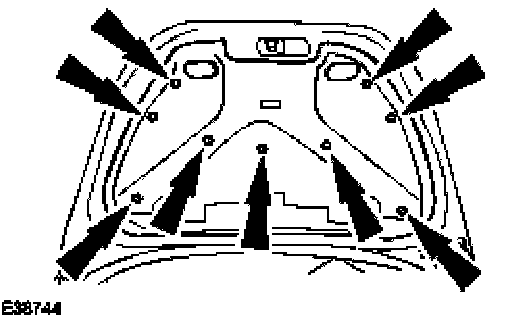

8. Remove the luggage compartment lid liner.

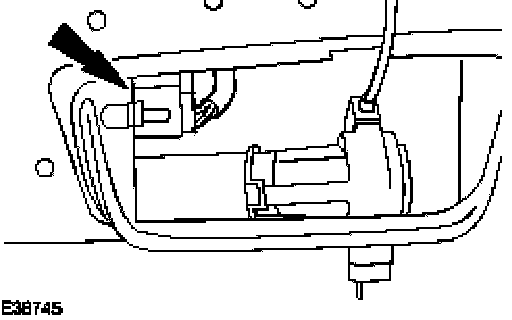

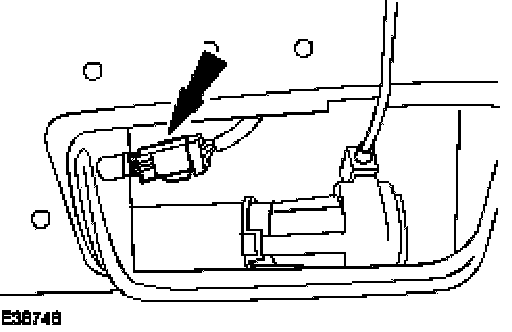

9. Detach the luggage compartment lid latch actuator electrical connector.







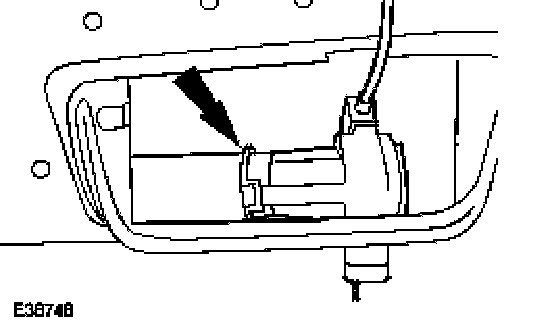

10. Disconnect the luggage compartment lid latch actuator electrical connector.

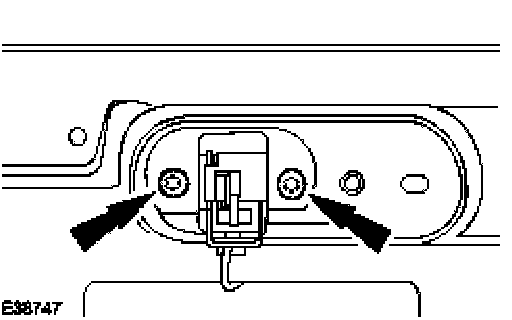

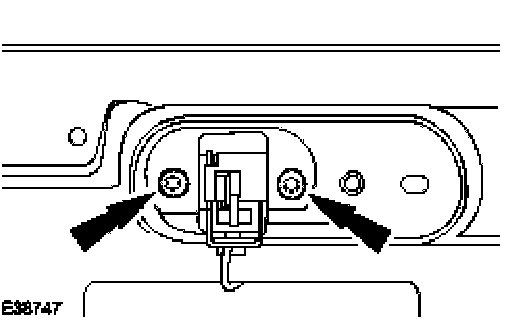

11. Remove the luggage compartment lid latch actuator retaining bolts.







12. Detach the luggage compartment lid latch actuator.

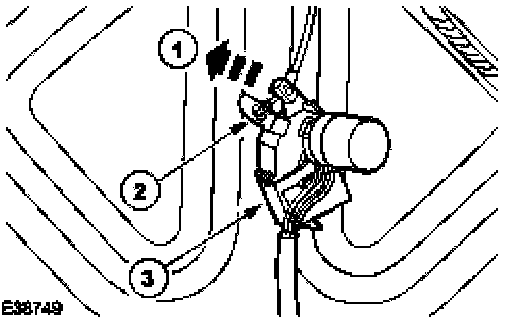

13. Remove the luggage compartment lid latch actuator.
- Detach the luggage compartment lid latch actuator release cable.
- Remove the luggage compartment lid latch actuator release cable.
- Remove the luggage compartment lid latch actuator.

Installation







1. To install, reverse the removal procedure.
- Tighten to 15 Nm.
