Rear Seat Module

Rear Seat Module (RSM)

Removal
1. Prior to removal of the module, upload module configuration information to the Jaguar approved diagnostic system. This information needs to be downloaded into the new module once installed.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

2. Disconnect the battery ground cable.
3. Remove the rear seat.







4. Reposition the rear seat backrest insulator.

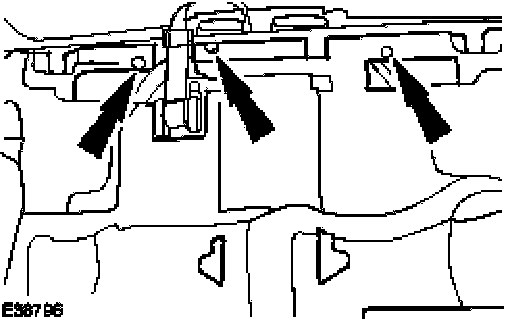

- Remove the retaining clips.







5. Disconnect the RSM electrical connectors.







6. Remove the RSM.
- Remove the securing nuts.

Installation







1. To install, reverse the removal procedure.
- Tighten to 6 Nm.
