Rear Electronic Module

86.80.37

Rear Electronic Module (REM)

Removal

1. Prior to removal of the module, upload module configuration information to the Jaguar approved diagnostic system. This information needs to be downloaded into the new module once installed.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

2. Disconnect the battery ground cable.

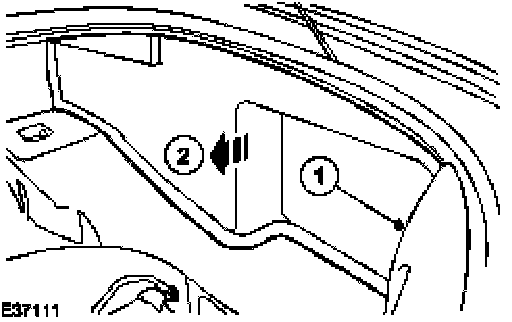

3. Remove the right-hand luggage compartment side trim panel.
- Remove the luggage compartment side trim retaining clip.
- Remove the luggage compartment side trim panel.







4. Disconnect the REM electrical connectors.

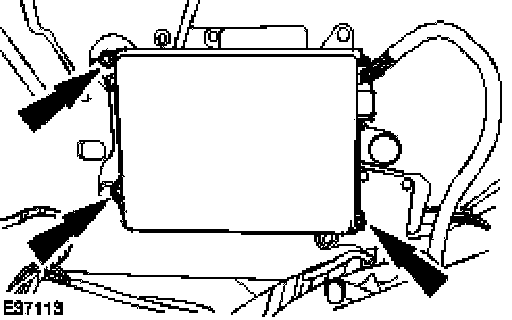

5. Remove the REM.

Installation







1. To install, reverse the removal procedure.
- Tighten to 6 Nm.
2. After installation of the module, download module configuration information to the new module.
