Home >> Jaguar >> 2004 >> XJ (X350) V8-4.2L SC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Diagram Information and Instructions >> Network Configuration

Network Configuration

Network Configuration

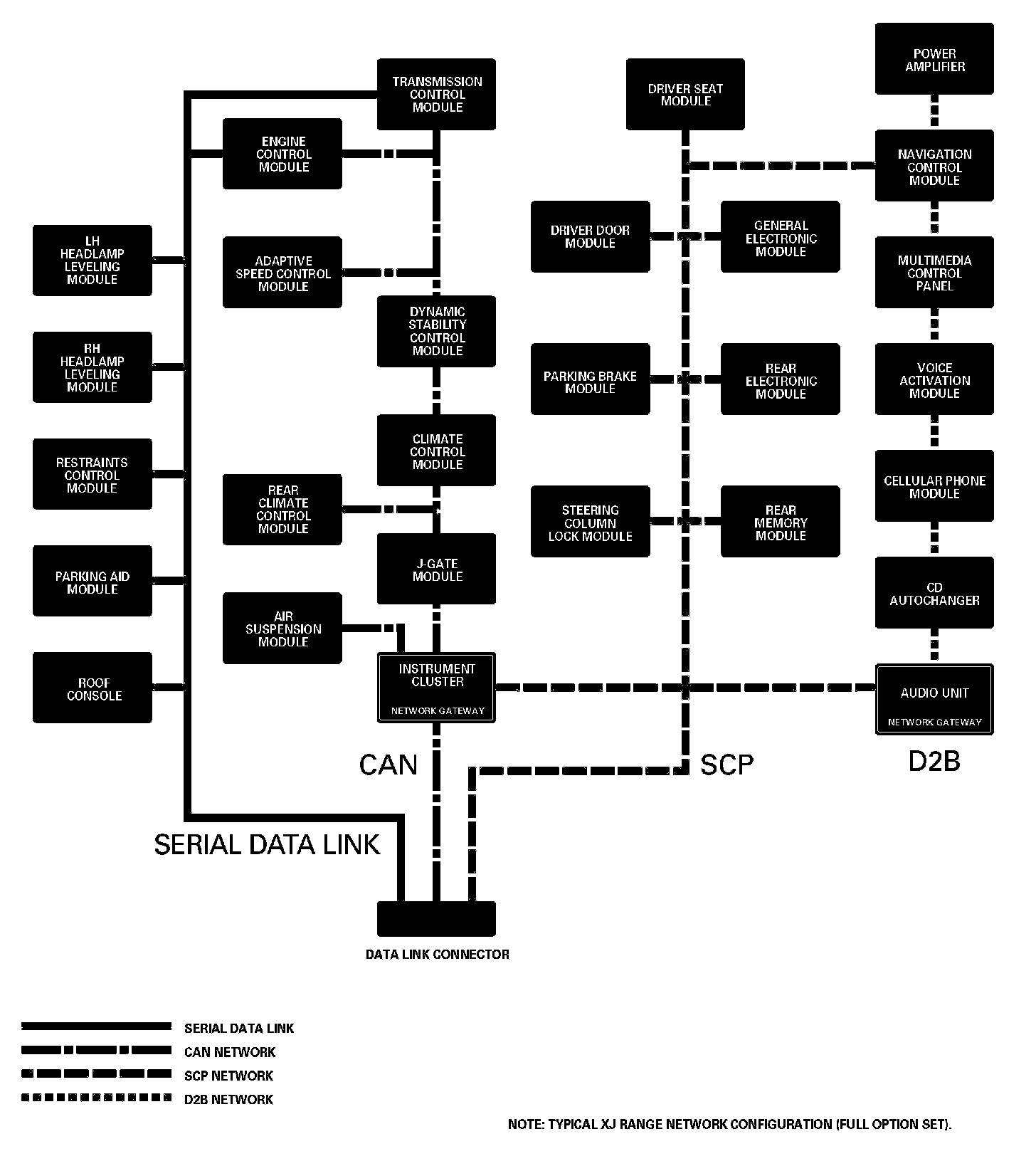

Network Configuration Overview:
