Steering Column Multifunction Switch LH

Steering Column Multifunction Switch LH

Removal

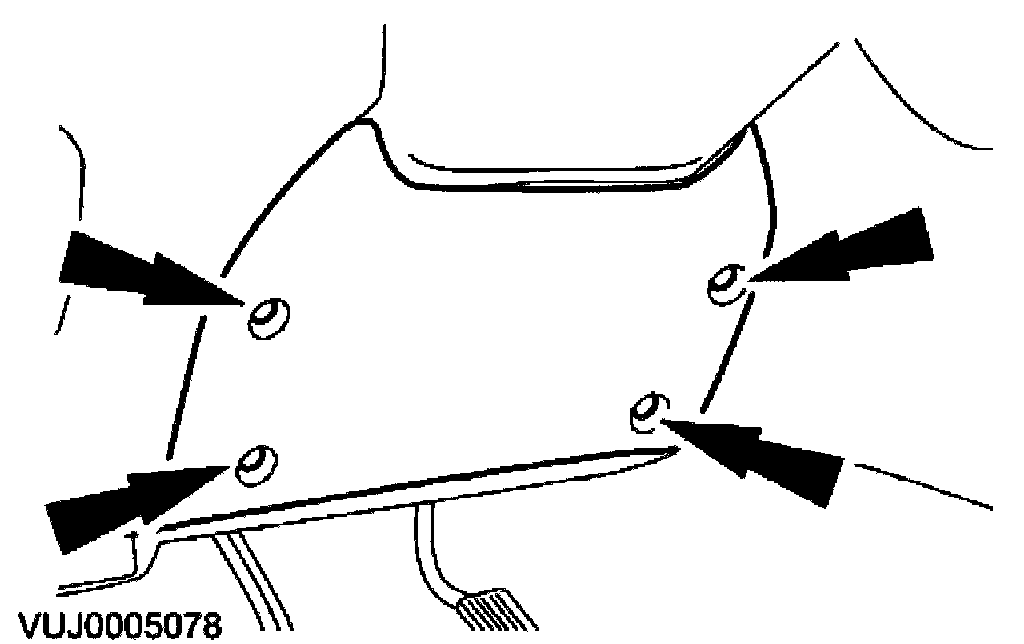

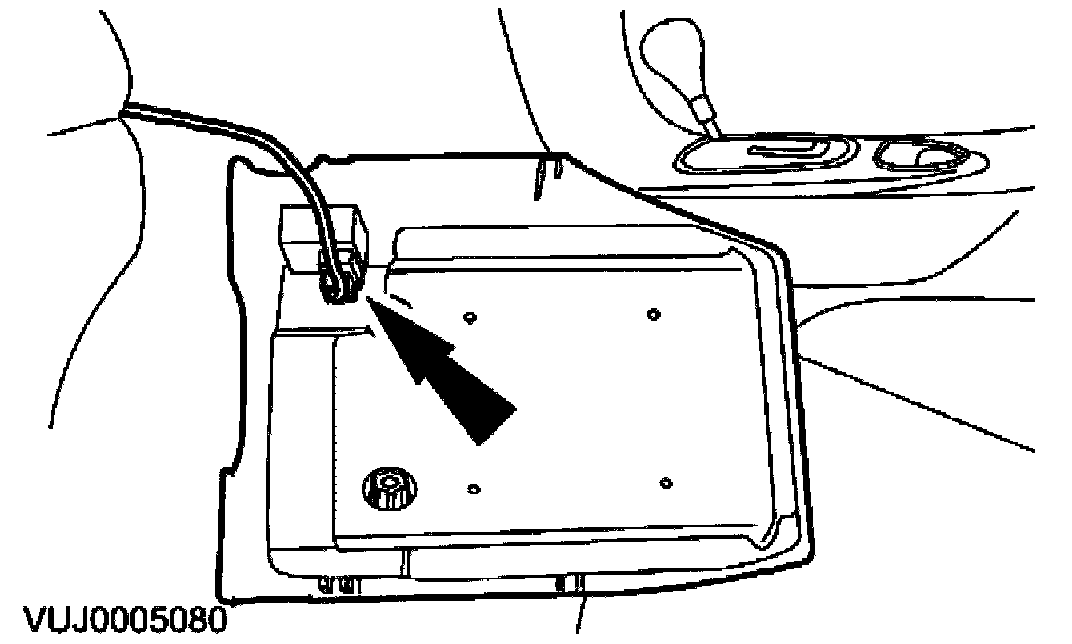

1. Remove the instrument panel lower trim.

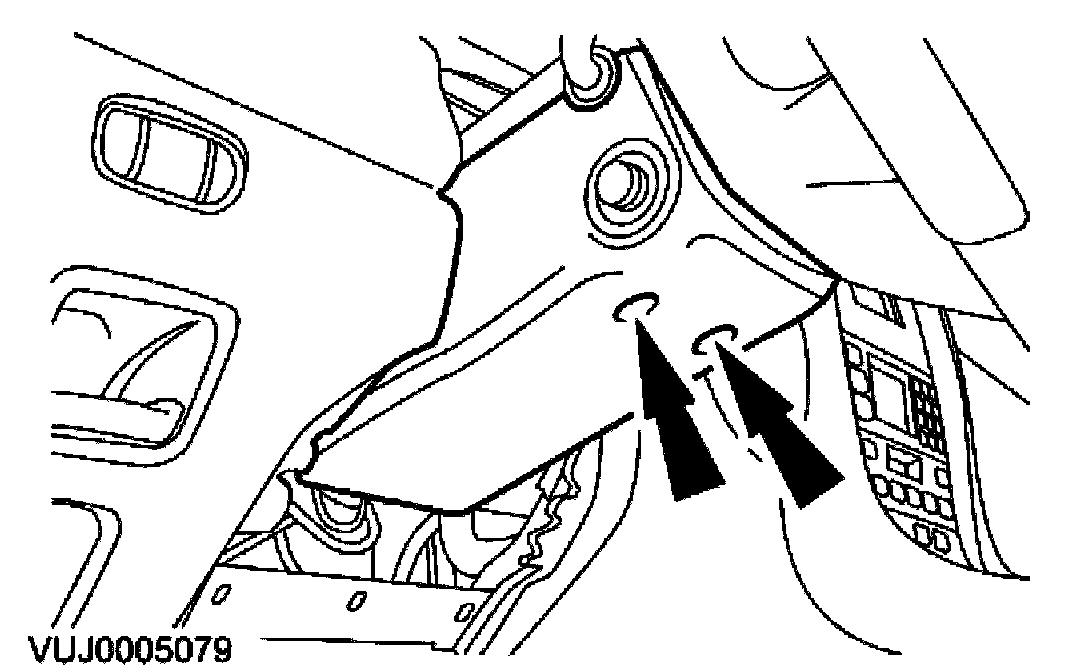

2. Detach the steering column lower shroud.





3. Remove the steering column lower shroud.

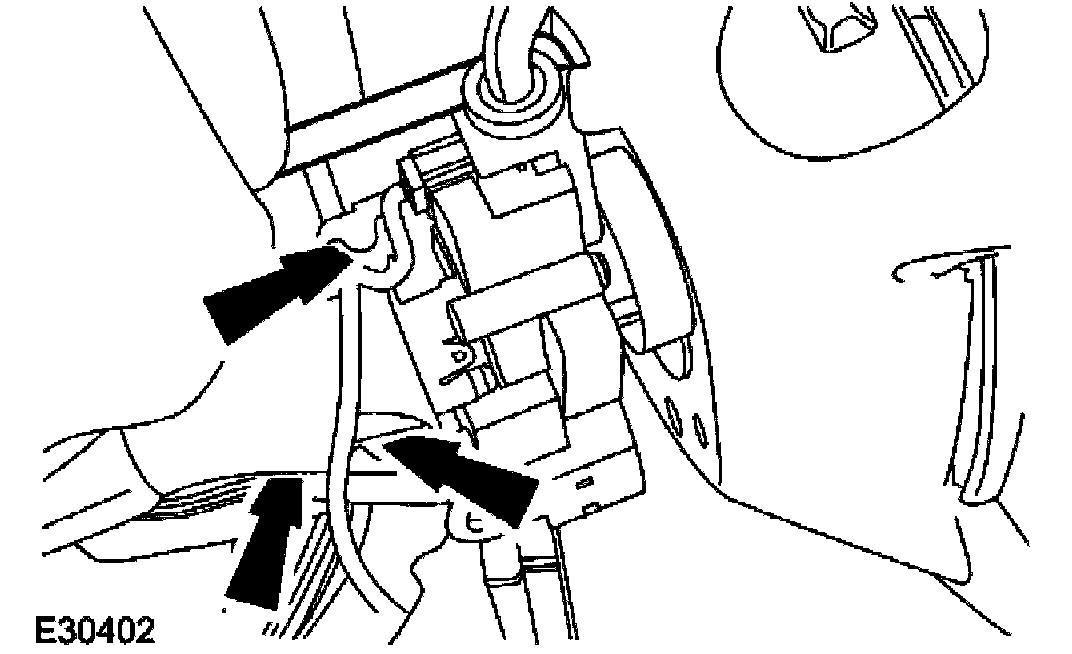

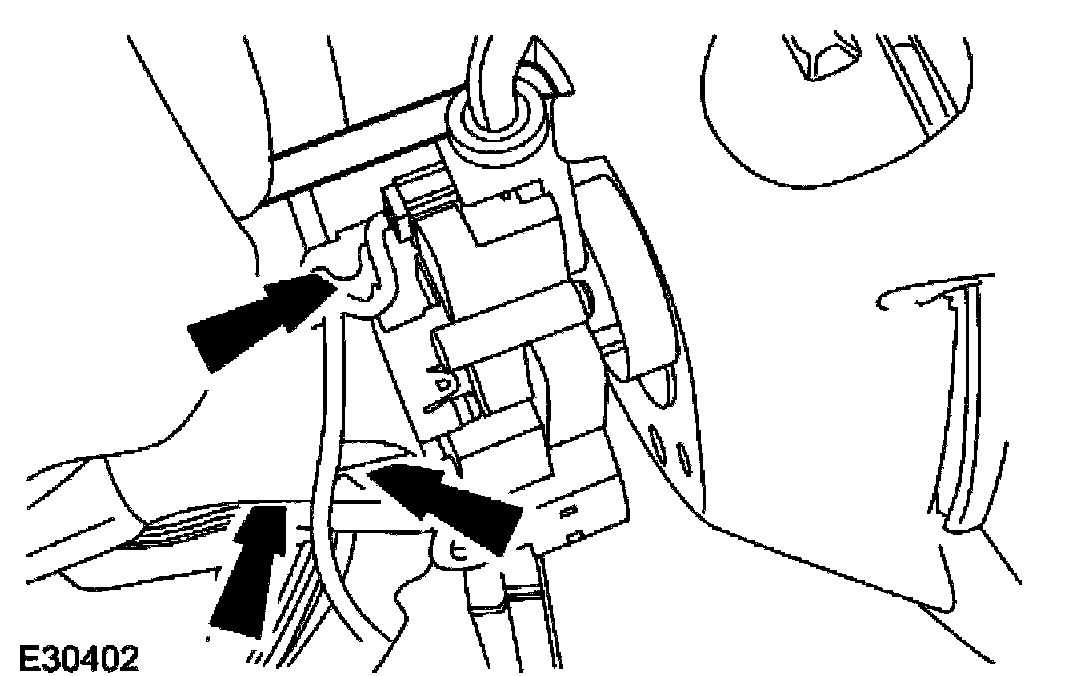

4. Remove the steering column upper shroud.

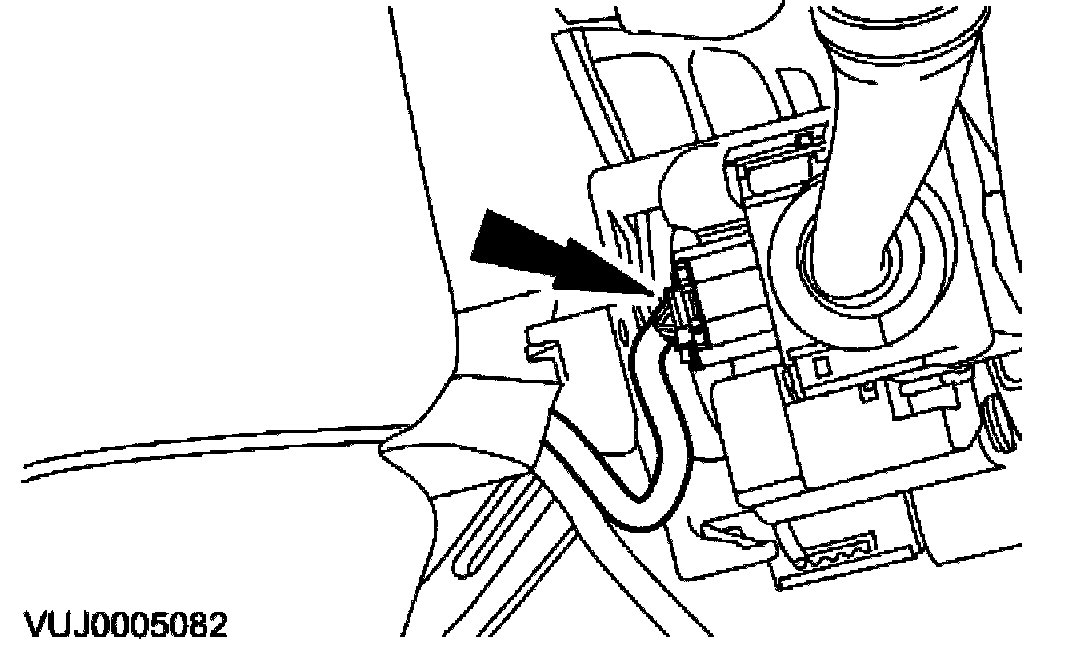

5. Disconnect the steering column multifunction switch LH electrical connector.

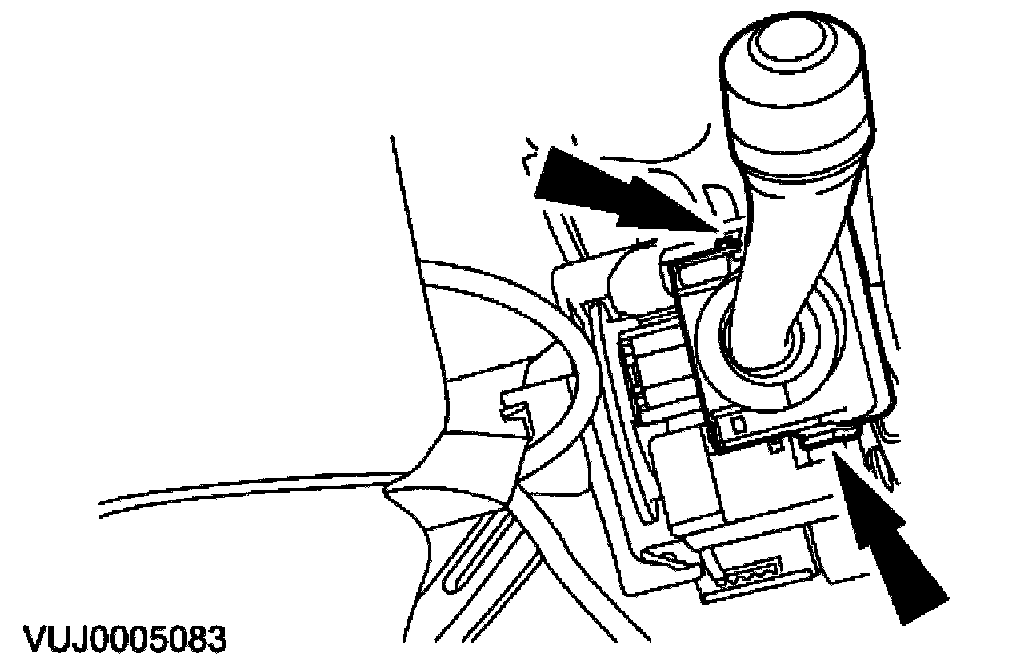

6. Remove the steering column multifunction switch LH switch.

Installation
1. To install, reverse the removal procedure.





2. Tighten to 3 Nm.
