Fuel System
Fuel System

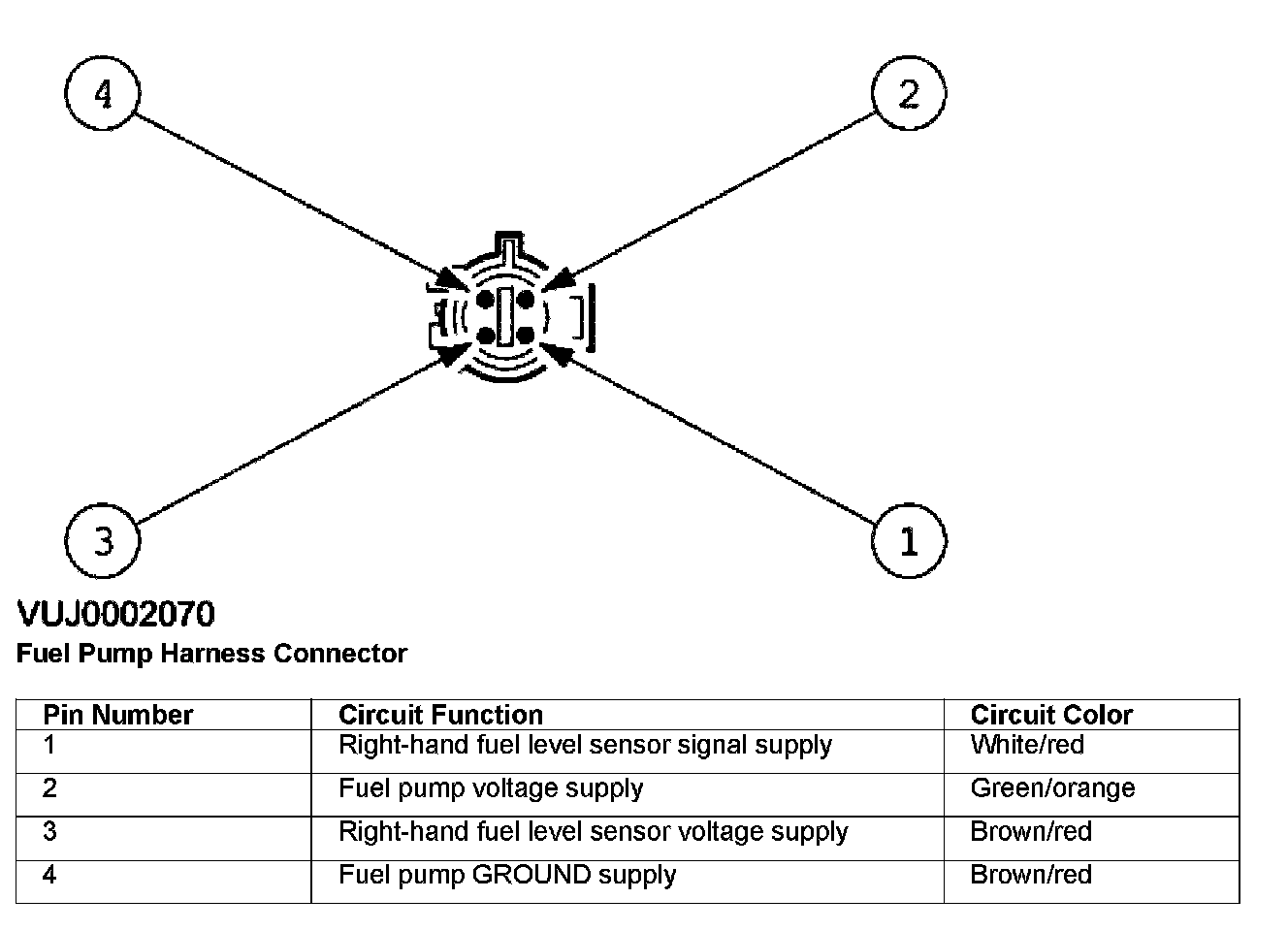

Fuel Pump Harness Connector:

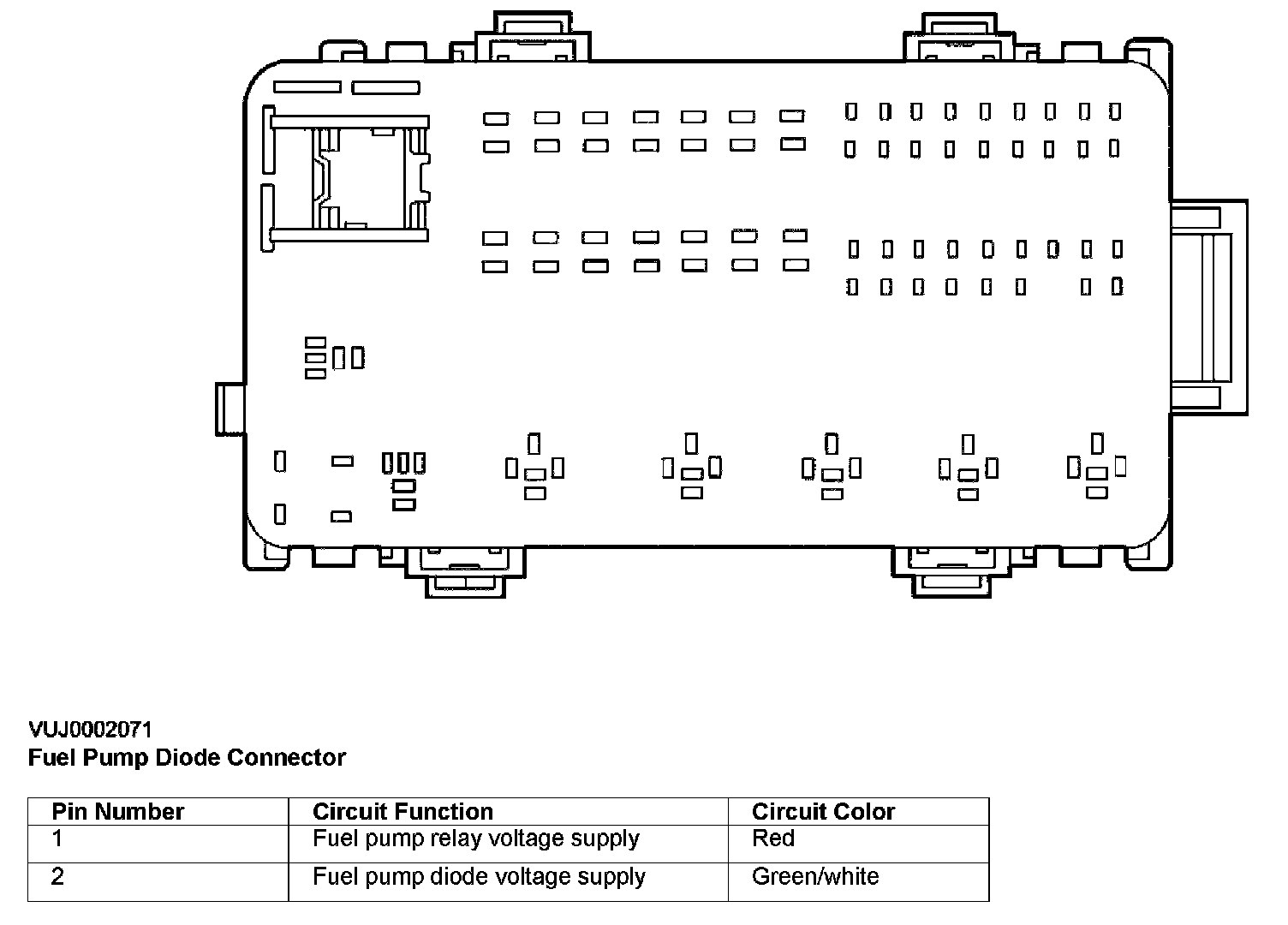

Fuel Pump Diode Connector:

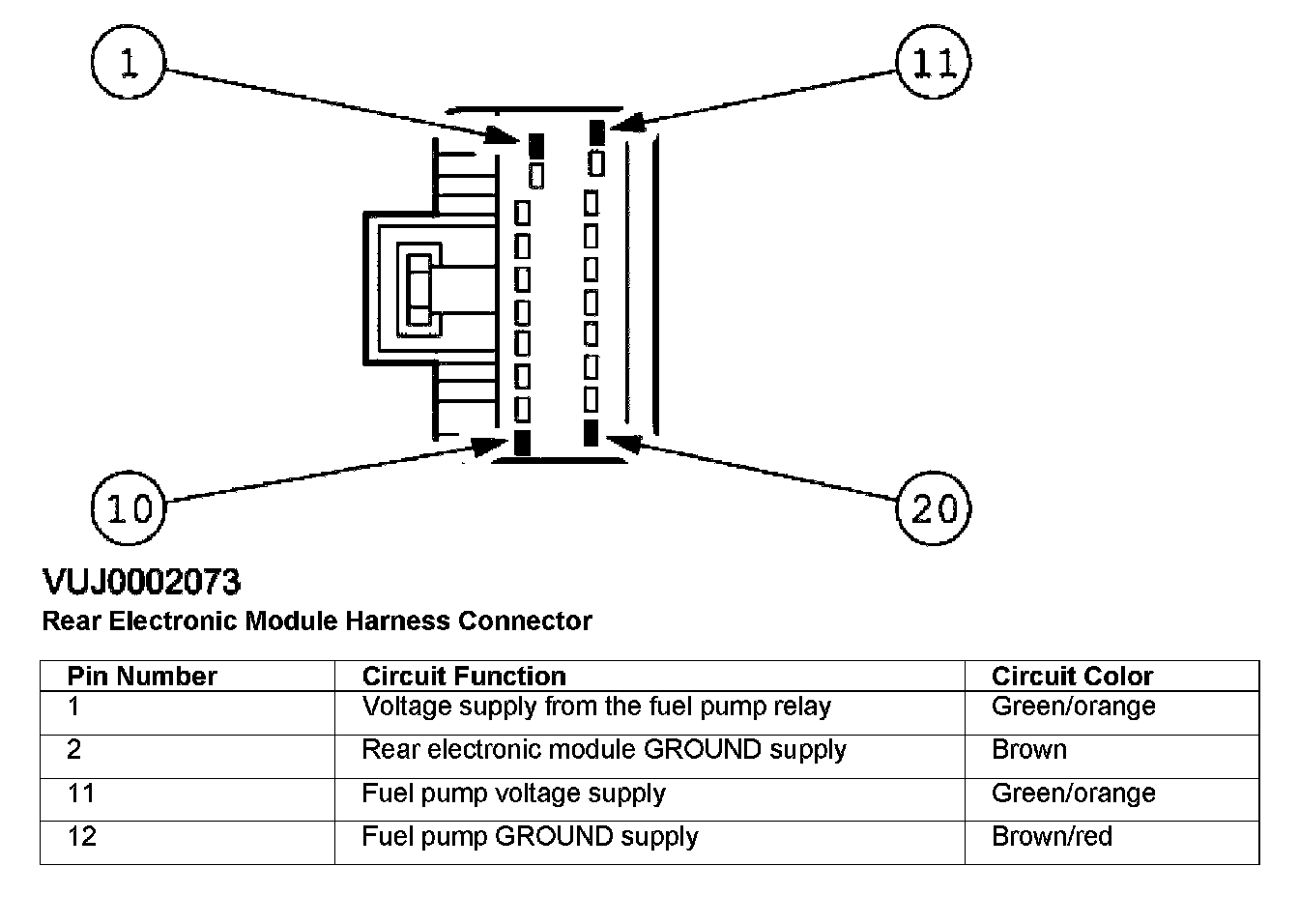

Rear Electronic Module Harness Connector:

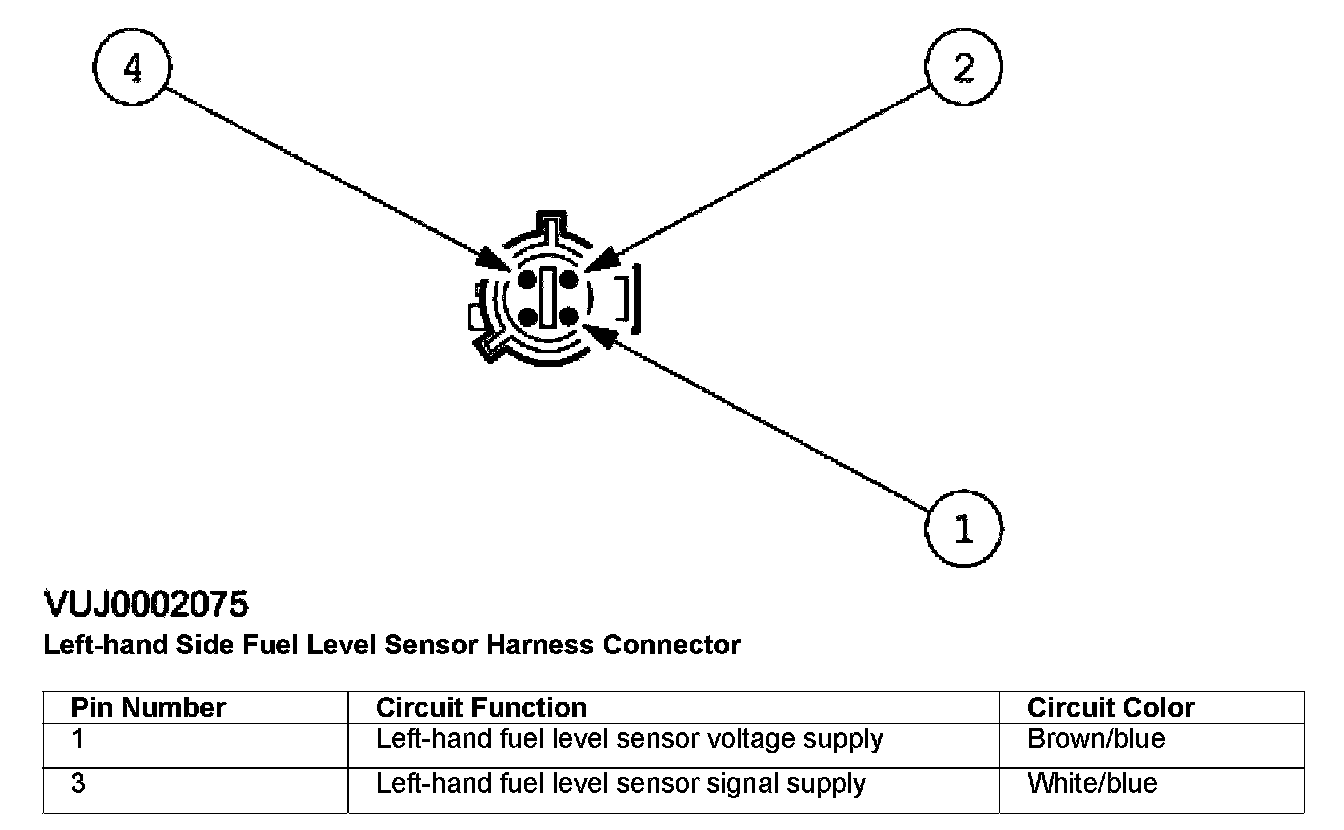

Left-Hand Side Fuel Level Sensor Harness Connector:

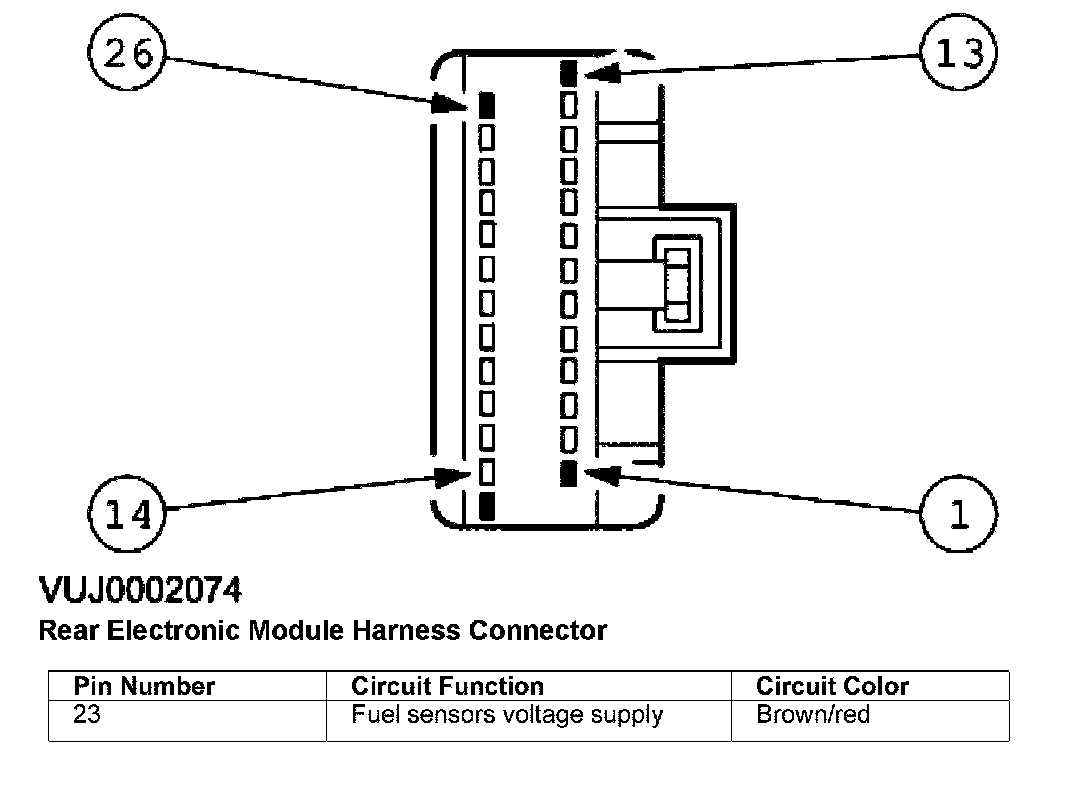

Rear Electronic Module Harness Connector:
