Control Module Location

Control Module Location

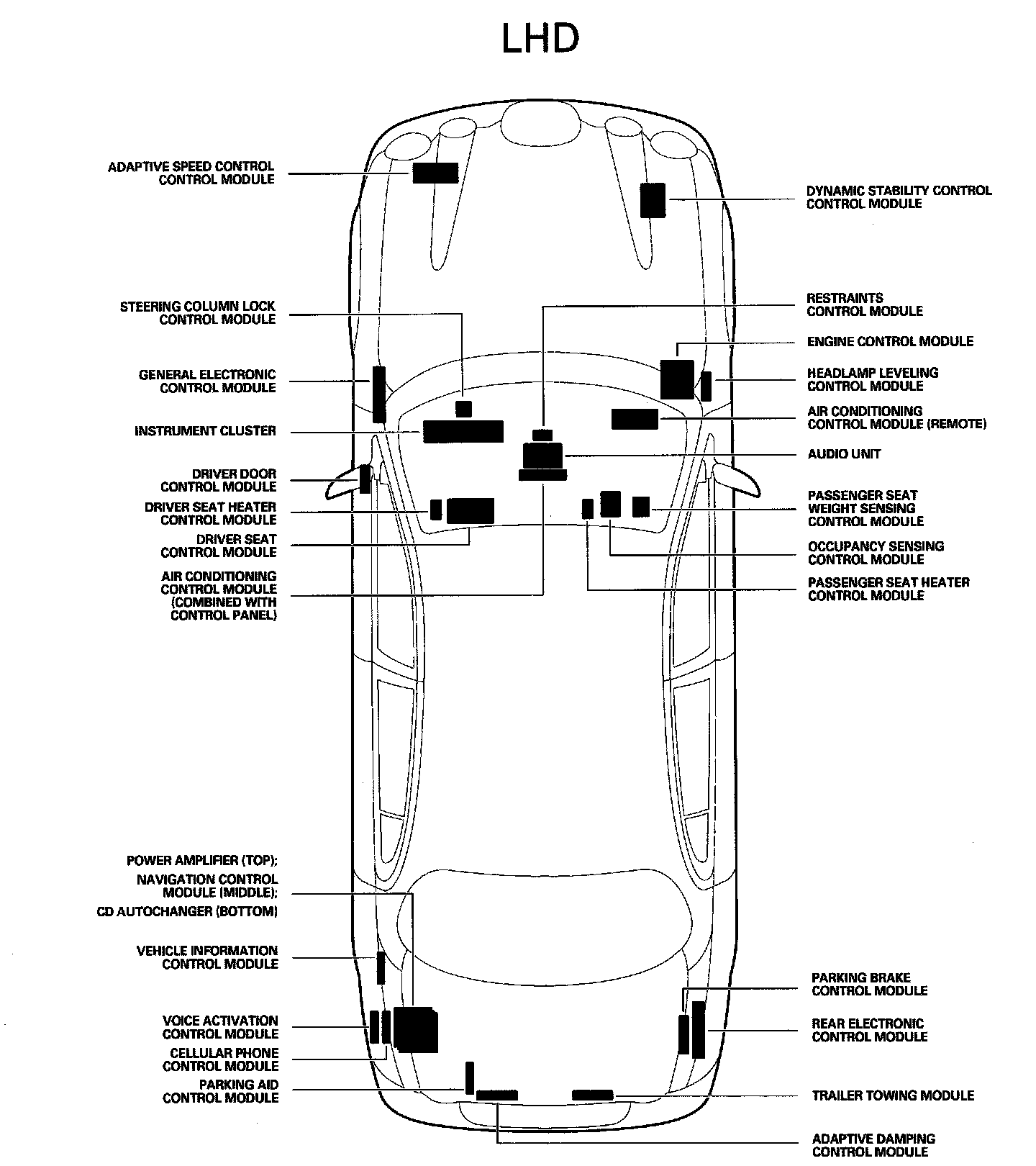

LHD:

NOTE: THE TRANSMISSION CONTROL MODULE IS CONTAINED WITHIN THE TRANSMISSION.
