Discharge Air Temperature Sensor / Switch: Service and Repair

Air Discharge Temperature Sensor (82.20.64)

Removal

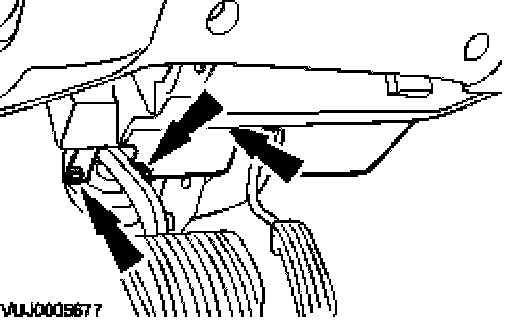

1. Remove the driver side instrument panel lower trim panel.

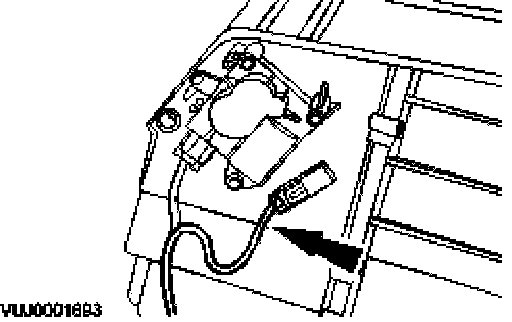

2. Disconnect the air discharge temperature sensor electrical connector.

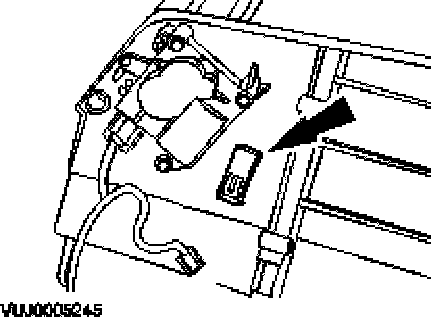

3. Remove the air discharge temperature sensor.







Installation
1. To install, reverse the removal procedure.
