Home >> Jaguar >> 2003 >> XJ (X308) V8-4.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Air Bag Control Module

Air Bag Control Module


AIRBAG / SRS SINGLE POINT SENSOR:

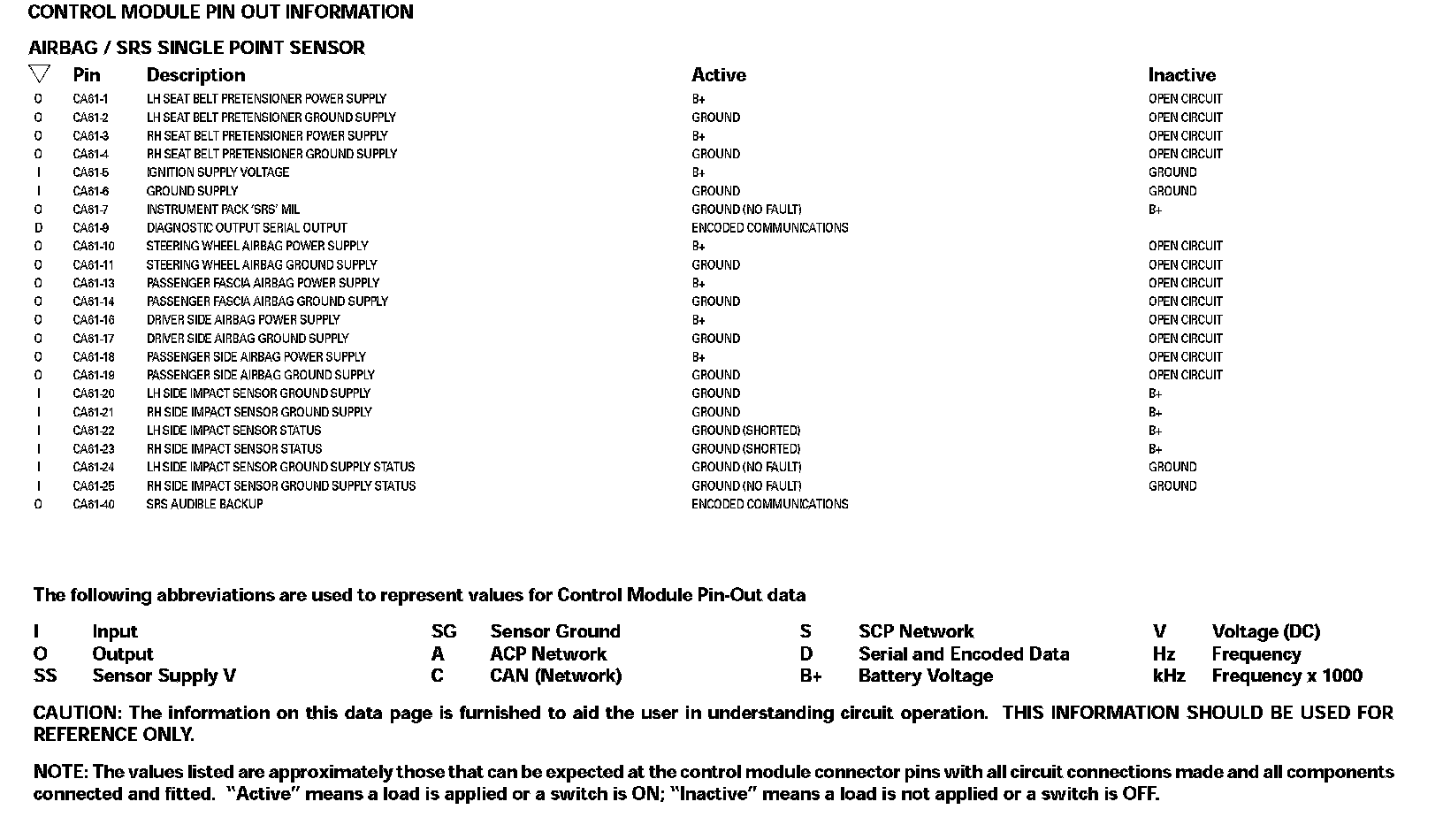

Control Module Pin Out Information:
