Procedures

Removal
1. Fully raise adjacent door glass and open door.
2. Remove convertible top.

3. Remove rear quarter glass inner seal. Refer to Window Glass. Procedures

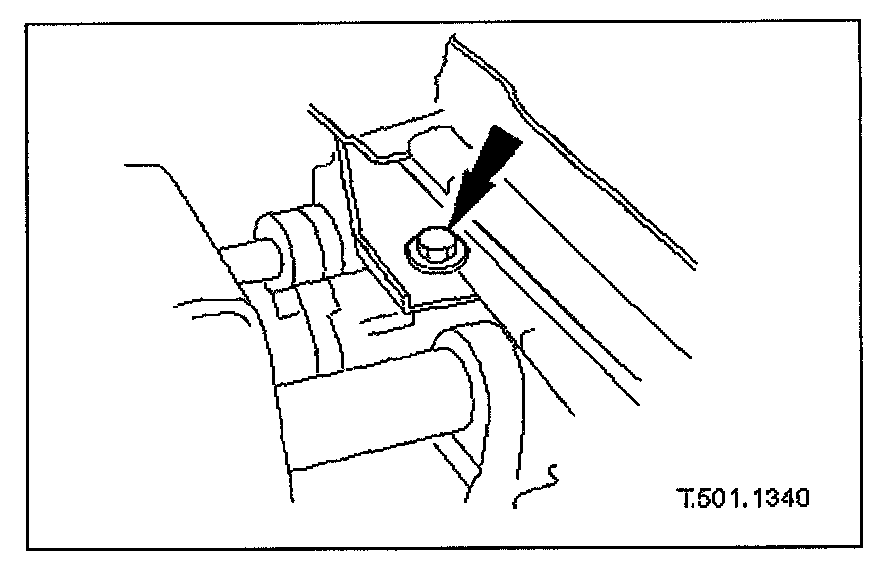

4. Remove inner seal carrier rear screw.

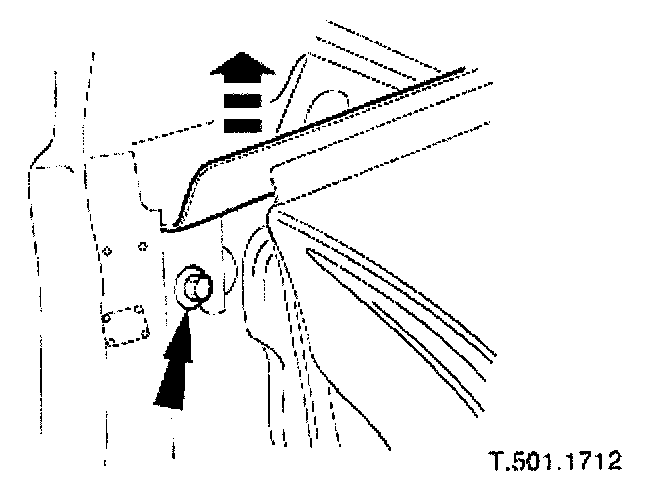

5. Remove seal carrier front screw and remove carrier from vehicle.

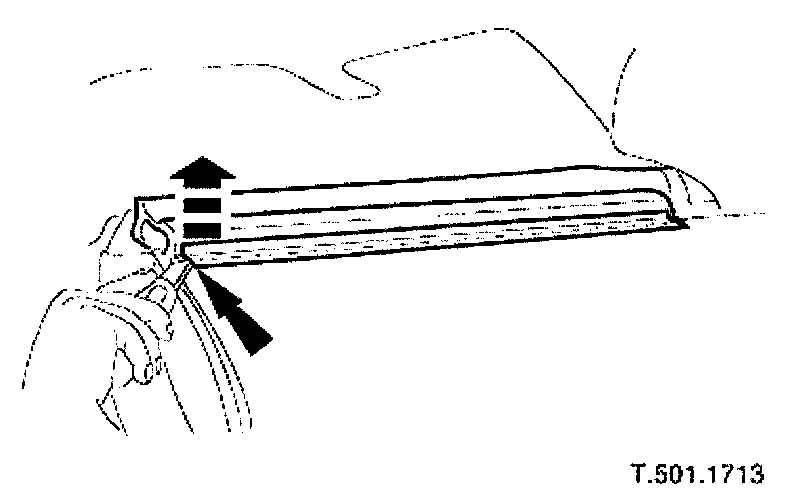

6. Remove quarter glass outer seal.
Apply protective tape to rear fender along outer edge of seal.
Exercising care to avoid damaging paintwork, use a thin blade over tape to remove seal from carrier.

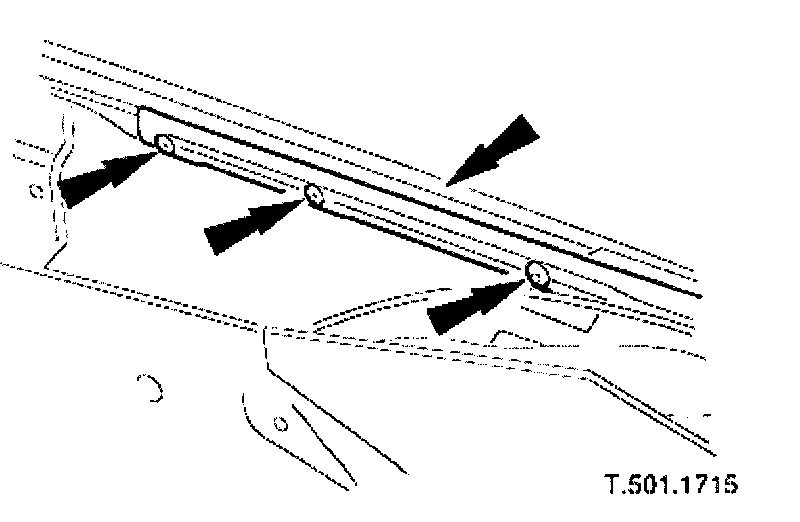

7. Remove quarter glass outer seal carrier.
Remove screws.
Remove seal carrier from vehicle.

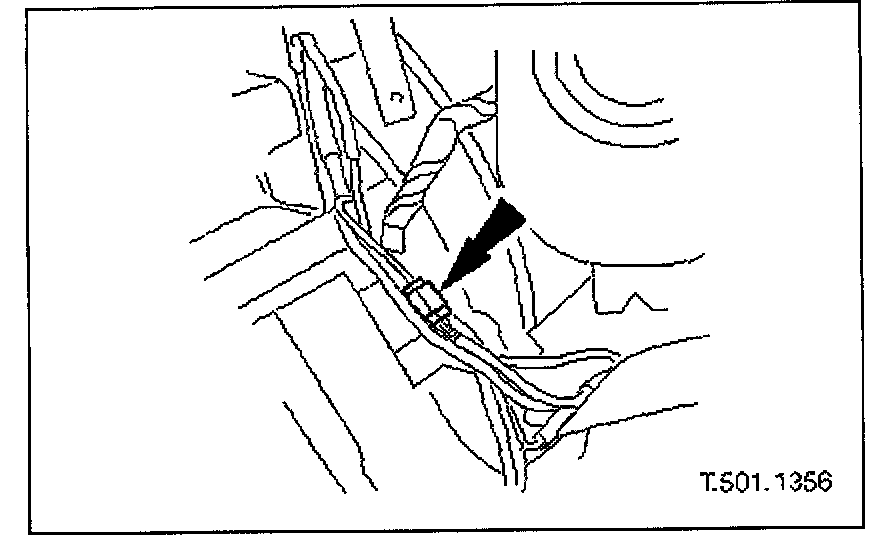

8. Disconnect lift motor link lead from rear harness multiplug.
9. If earlier PVC water shedder is installed route glass lift motor link lead through penetration and remove water shedder from body.
10. Connect a switched 12 volt supply to motor link lead connector and power glass to fully raised position.
11. Switch off 12 volt supply and disconnect from motor connector.







12. Remove three nuts securing glass lift motor/regulator assembly to body.
