Procedures

Removal
1. With door open, turn ignition key to position II.
2. Motor door glass to fully lowered position.
3. Turn ignition key to position O.
4. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
5. Remove door casing for access.
6. Remove speaker. Radio, Stereo, and Compact Disc. Speaker
7. Remove main water shedder and position secondary shedder clear of regulator assembly.







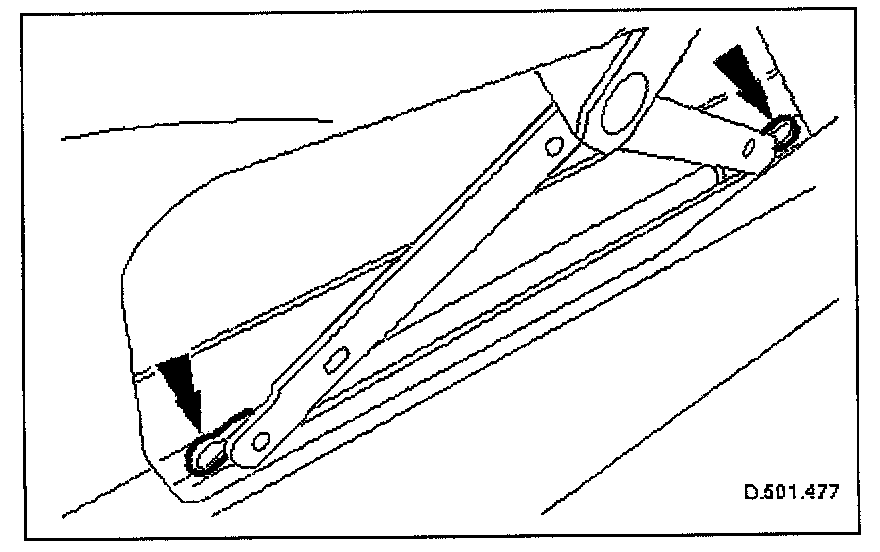

8. Remove clips from nylon fixings and retain for re-use.







9. Release glass regulator assembly from nylon fixings.

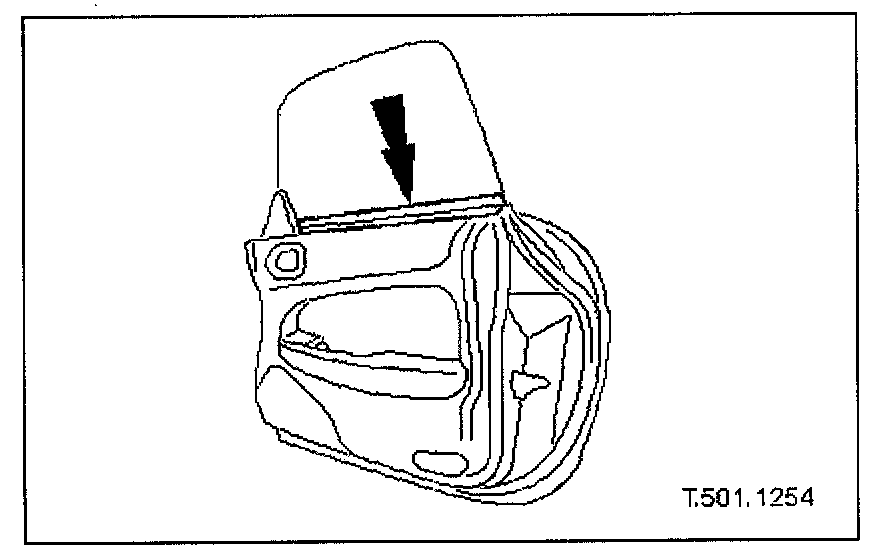

10. Manually raise glass to uppermost position and using linen or similarly strong tape, secure glass to top of door.

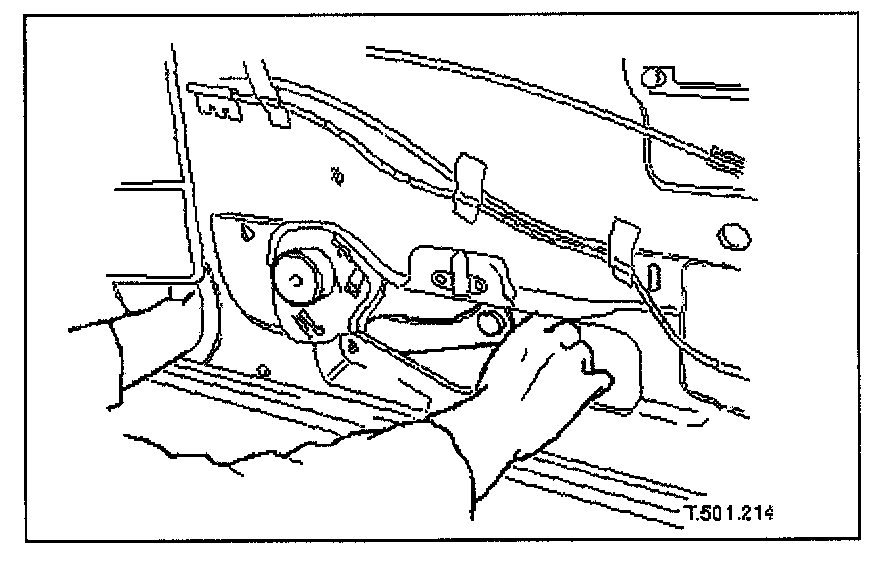

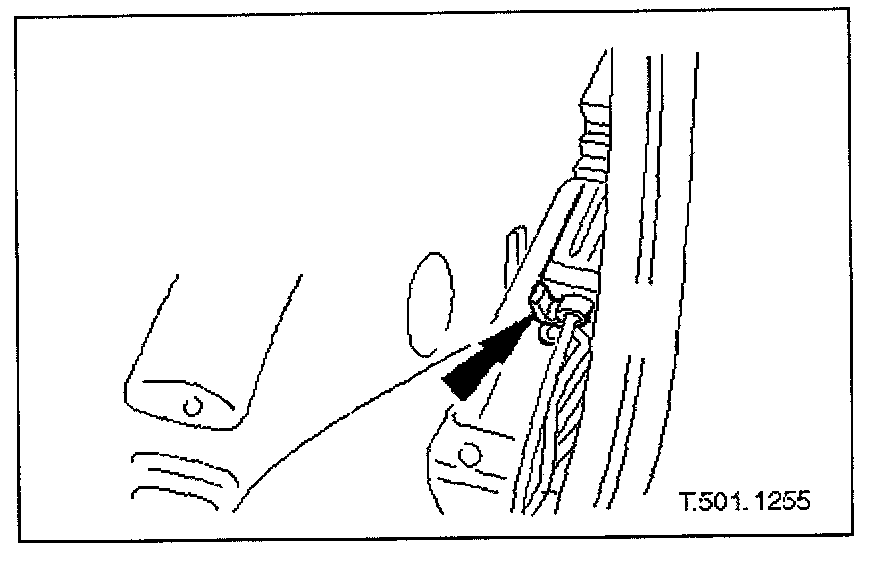

11. Accessing via speaker aperture, disconnect harness multiplug from lift motor.







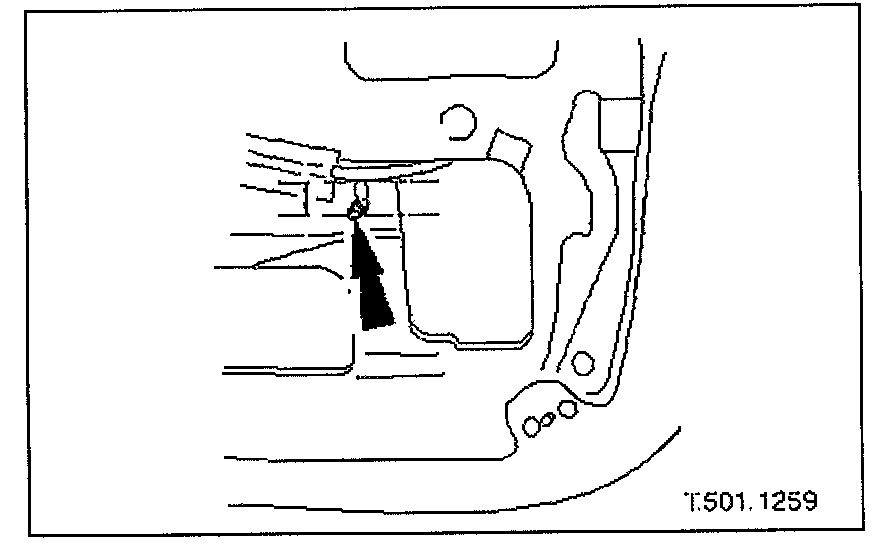

12. NOTE: The position of this stud is critical to glass alignment and must be measured accurately.


Using vernier calipers, measure position of regulator channel securing stud in elongated hole and slacken and remove nut.







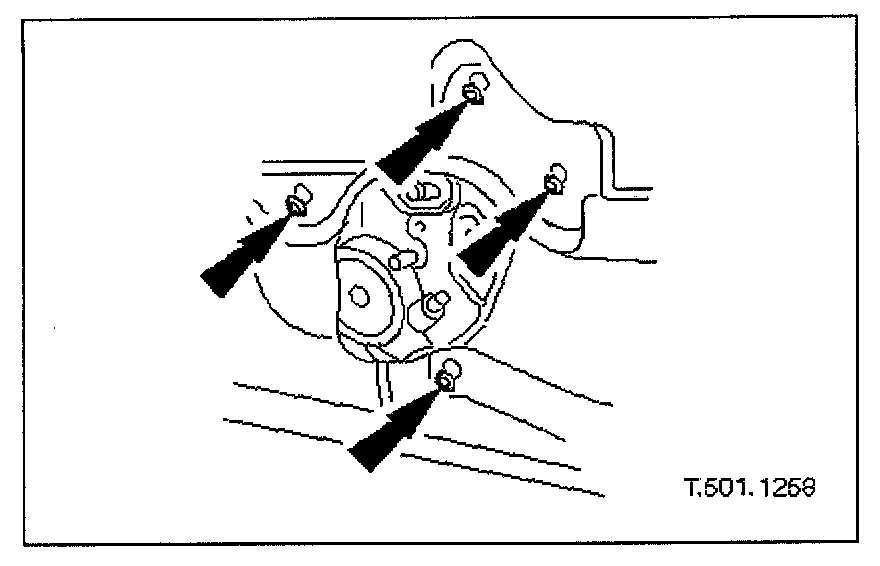

13. Slacken and remove screws securing lift motor to door.







14. Lower motor/regulator assembly into bottom of door and close scissor mechanism.

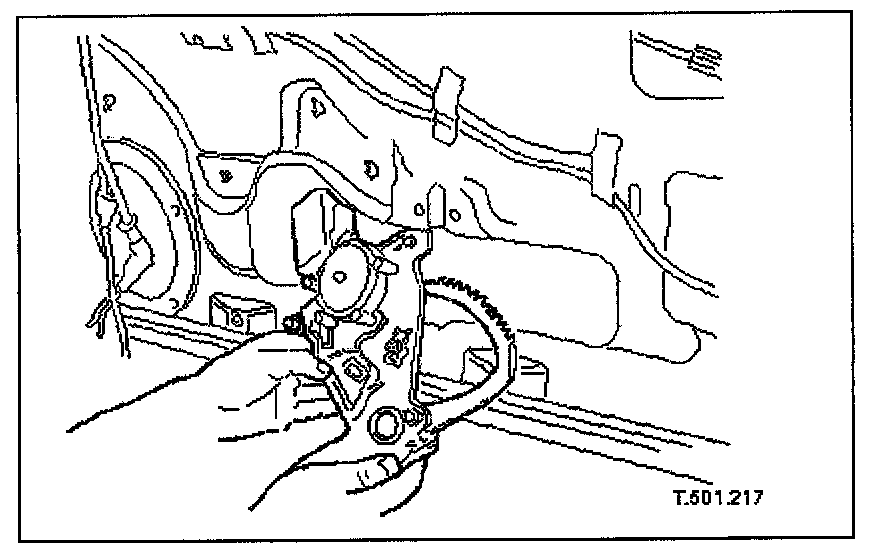

15. Turning it to achieve clearance, withdraw motor/regulator assembly through door aperture.







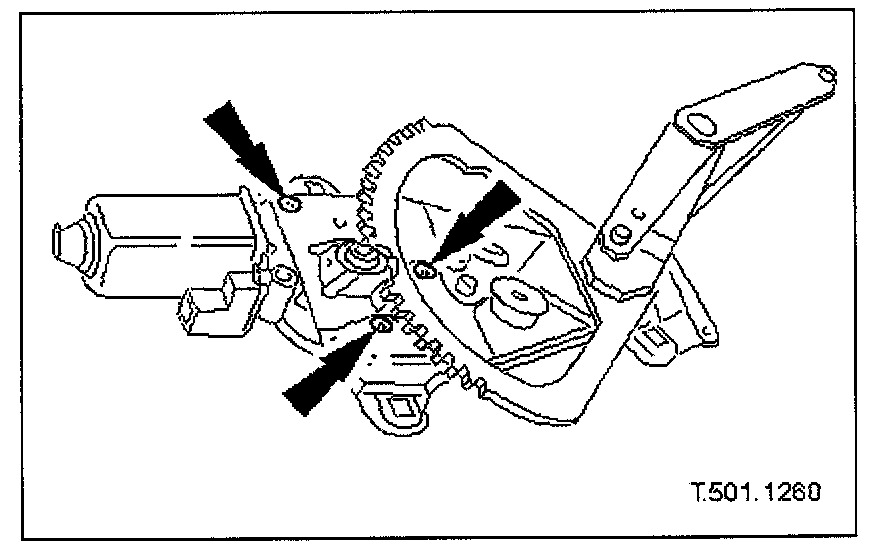

16. Place assembly on bench, slacken and remove screws securing lift motor to regulator and remove motor.


Installation
1. Position lift motor on regulator assembly and fit and tighten securing screws.
2. Close scissor mechanism and pass assembly through aperture into door.
3. Position motor/regulator assembly in door.







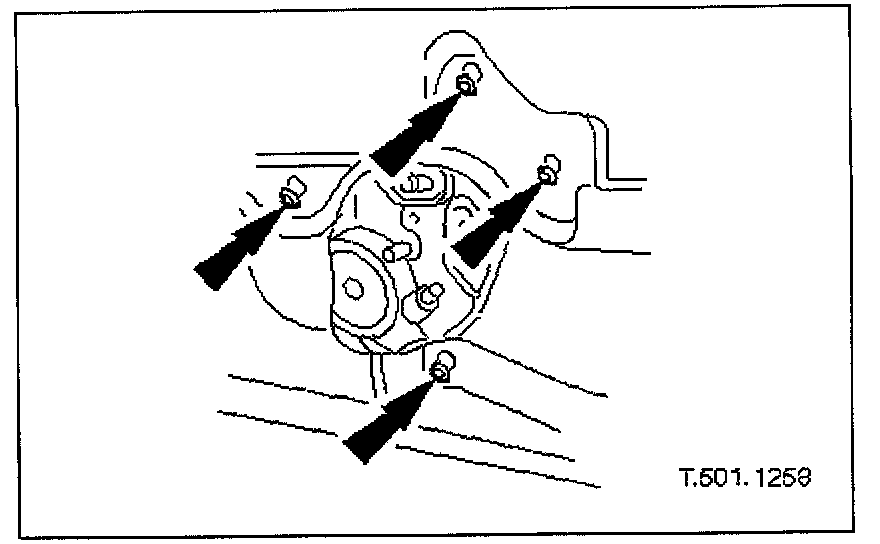

4. Fit but do not tighten motor to door securing screws and regulator channel securing nut.







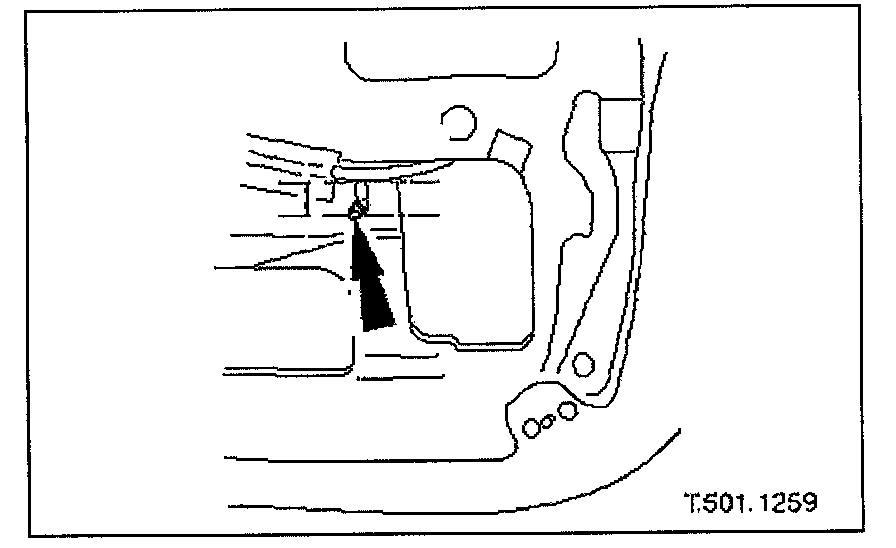

5. NOTE: Accurate positioning of this stud is critical to glass alignment.


Position regulator channel securing stud in elongated hole as measured during removal and fit and fully tighten securing nut.
6. Fully tighten motor to door securing screws.
7. Supporting door glass, remove linen tape and lower glass onto regulator assembly.

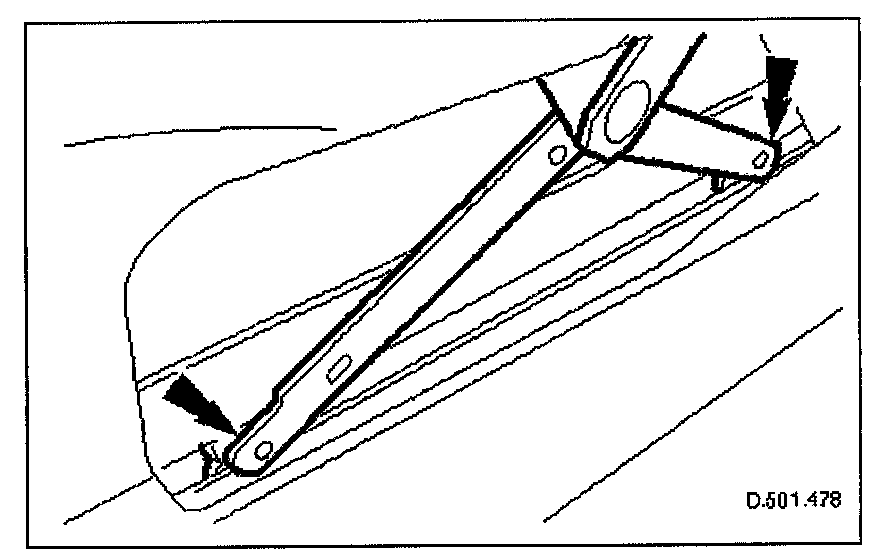

8. Press regulator ball joints into nylon seats on lower channel and fit retaining clips.
9. Connect harness multiplug to motor.
10. Position speaker in door and connect harness multiplug.
11. Align speaker and new gasket in door and fit and tighten securing screws.
12. Fit door casing.
