Door Glass Lift Switch

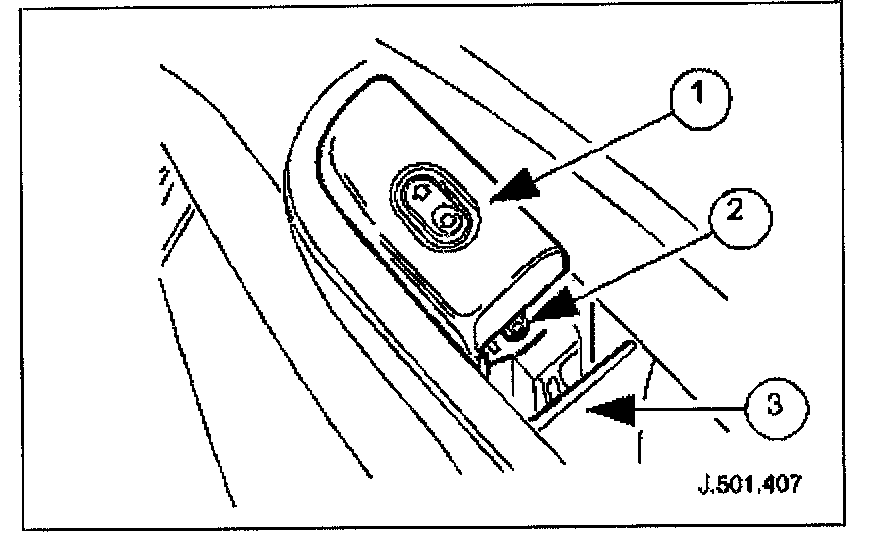

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair







2. Remove glass lift switch.
Remove glass lift switch end cover trim pad. Slacken and remove the switch securing screw.
3. Disconnect the switch harness multiplug.

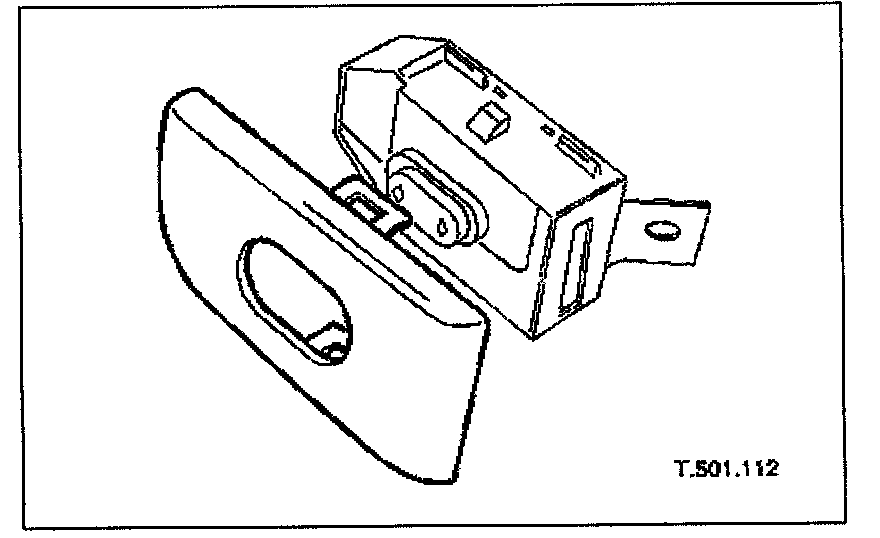

4. If the switch is to be renewed, remove the veneer panel from clips.

Installation
1. If switch has been renewed, fit and fully seat veneer panel in retaining clips.
2. Connect harness multiplug to switch.







3. Fit glass lift switch.
Position glass lift switch in door.
Fit and tighten switch securing screw.
Fit and fully seat switch end cover trim pad.
4. Perform the Battery Reconnection Procedure Service and Repair and fit battery cover.
