Downshift Switch: Service and Repair

Removal

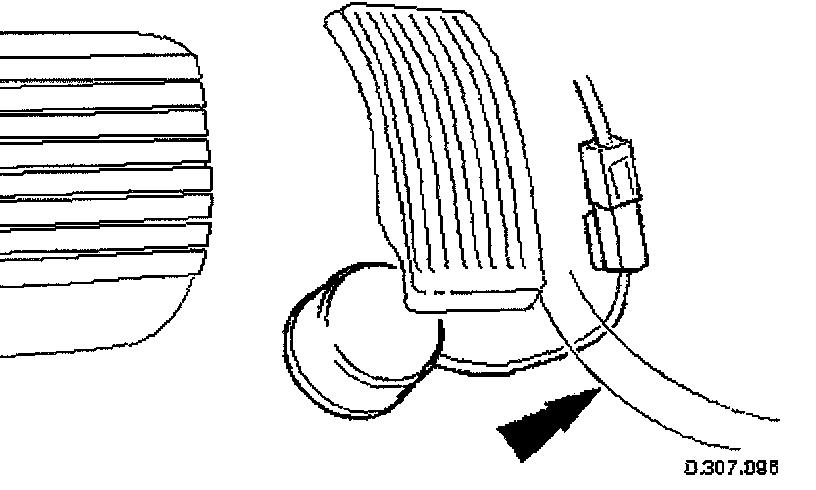

1. Disconnect the kickdown switch multiplug.
Move the carpet for access.

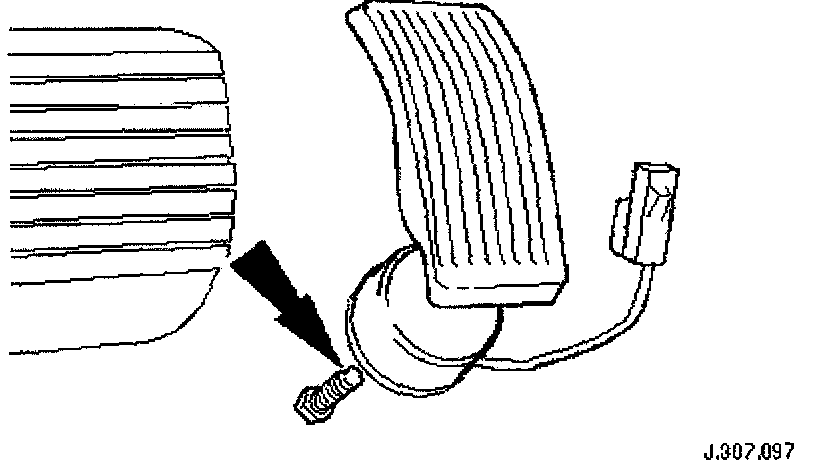

2. Remove the kickdown switch.
Rotate counter-clockwise.

Installation

1. Installation is the reverse of the removal procedure.
2. The kickdown switch MUST be adjusted in accordance with Kickdown Switch - Check and Adjust.
