Wheel Bearing Circlips

Wheel Bearing Circlips

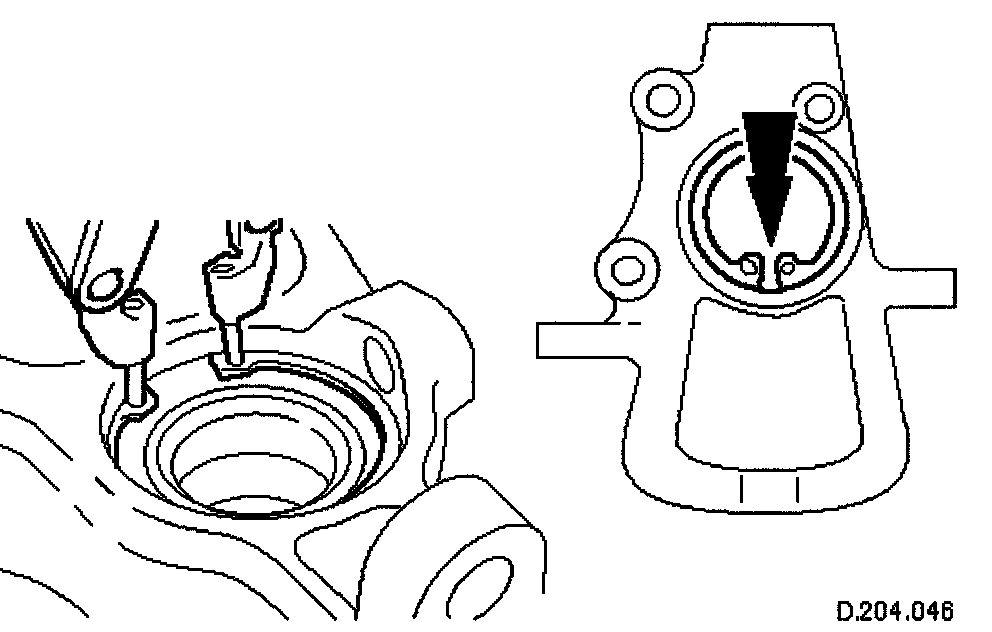

When installing the bearing circlips in the vertical link ensure that the ears are located at the lowest position to permit water drainage.

To achieve this, a perpendicular line drawn through the suspension upper ball-joint will indicate the position of the gap between the circlip ears. This procedure makes an allowance for the caster angle prior to installing the vertical link.
